Name: Akubela HyPanel Ultra PH81-ST Smart Home Control Center
Brand: Akuvox
SKU: PH81-ST
Availability: InStock

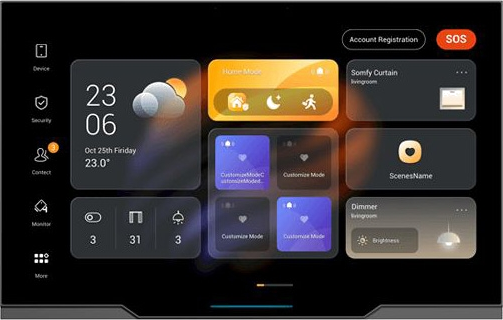

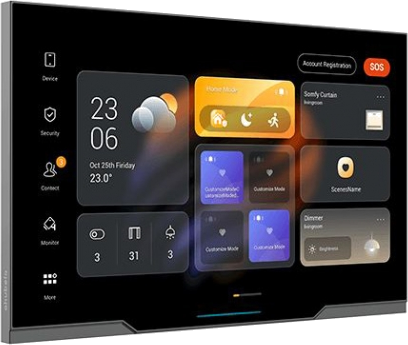

Smart Home Control Center, 10.36'' touchscreen, Android OS, ZigBee gateway, Wi-Fi, Bluetooth 5.0.

Akubela HyPanel Ultra PH81-ST Smart Home Control Center

(0 Customer Reviews)

Akubela PH81-ST HyPanel Ultra is a cutting-edge 10.36-inch smart control panel built for seamless whole-home automation. Featuring a 2K high-definition display with ultra-slim bezels, this Android 12-powered panel integrates ZigBee 3.0, RS485, dry contact and digital input capabilities. With support for Wi-Fi 6, Bluetooth 5.0, and multiple sensors, HyPanel Ultra enables effortless interaction with third-party platforms and devices—delivering intuitive, centralized control for a truly smart living environment.

Datasheet:

View PDF

Order Now

At a Glance

10.36 inch touch screen with metal frame
2K(2000×1200) UHD display
Built in with 6 channels dry contact, 8 digital inputs, RS485 port
Multi networks supported: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0, etc.

Built in with multiple sensors
Android 12 OS
Intercom, ZigBee gateway and smart home control panel in one device
Compatible with various third-party devices and platforms

Model : PH81-ST
Brand : Akubela
Category : Smart Buildings, Akubela, Zigbee HyPanel Series

Share Product:

Description

Basic Information
Manufacturer: Akubela

Model: PH81-ST

OS: Android 12

RAM / ROM: 4GB / 32GB

Size: 10.36 Inch

Resolution: 2000×1200 pixels

Speaker: Dual speakers, 4Ω / 2W
Working Environment
Environment: For indoor use only

Temperature Range: -10°C to 50°C

Humidity Range: 10% to 90%RH, without condensation
Appearance
Screen Brightness: 360 cd/m2

Screen: multi-touch screen
Connectivity & Protocols
Wi-Fi: WiFi6, @2.4GHz/5GHz

Bluetooth: Support Bluetooth 5.0

Ethernet Port: 1×RJ45, 10/100Mbps adaptive

RS485 Port: 1

Zigbee: ZigBee 3.0

ZigBee Sub-Device Limit: 128

Power & Voltage
Power: 12-24VDC

Dry Contact Output Rated Current: 3A

Wire Range Rated Current: 2A
Specification
Digital Input: 8-gang, 0-5VDC

Dry Contact Output: 4-gang, 100-240VAC
Design & Installation
Wire Range: 1.5 ~ 2.5mm2 (15 ~ 13AWG), 2-gang, 0-30VDC

Wire Gauge: 0.08 ~ 0.5mm2(28 ~ 20AWG)
Sensors Built In
Microphone: Dual Microphones, -26dBFS

Proximity Sensor: 30 ~ 60cm

Light Sensor: Low-level lux detection

Temperature Sensor: ±1°C

Humidity Sensor: ±5%
