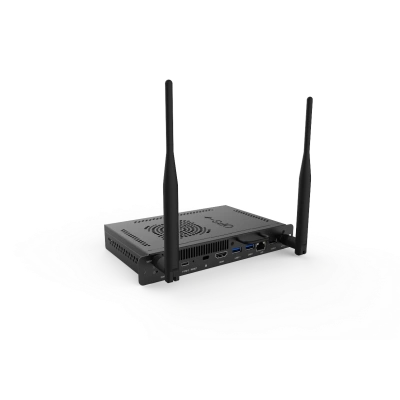

Open Pluggable Specification SP-PI5C82IS(without system)

Processor: Intel® Alder lake-H i5-12450H, 4.40 GHz.

Chip: SOC.

BIOS: AMI UEFI BIOS.

Integrated Graphics Card: Intel® UHD Graphics for 12th Gen Intel® Processors.

Sound Card: Realtek ALC897.

Memory: 8 GB.

Disk: 256 GB.

Operating System: Supports Windows 11 Pro or without any operating system.

Number of Cores: 8.

Number of Threads: 12.

Level 3 Cache: 12 MB.

Operating Temperature: –5 °C to +45 °C (+23 °F to +113 °F).

Operating Humidity: 10%–90%, non-condensing.

Storage Temperature: –20 °C to +70 °C (–4 °F to +158 °F).

Storage Humidity: 10%–90%, non-condensing.

Button: Front, 1 × power button, 1 × resetting button (recessed socket).

Product Dimensions: 119 × 180 × 30 mm (4.69 × 7.09 × 1.18 in).

Packaging Dimensions: 254 × 196 × 77 mm (10.00 × 7.72 × 3.03 in) (L × W × H).

Casing Material: SGCC.

Net Weight: 0.75 kg (1.65 lb).

Gross Weight: 0.95 kg (2.09 lb).

Casing Color: Black.

Operating Voltage: 12–19 VDC.

Standby Power Consumption: 0.8 W.

Power Consumption: Typical 53 W; Maximum 58.8 W.

Power Port: 1 × DC IN.

Network Port: 1 × RJ-45 (10/100/1000 Mbps).

USB: 2 × USB 3.1, 2 × USB 2.0.

Type-C Port: 1 × USB 3.1 Type-C.

DP: 1 × DP1.2 out, Max. 4K/60 Hz.

HDMI: 1 × HDMI 1.4 out, Max. 4K/30 Hz.

Audio Port: 1 × Line-out and MIC-In, 2-in-1 Connector.

Wi-Fi: Yes.

Wi-Fi Standard: 802.11a/b/g/n/ac/ax.

Wi-Fi Frequency Range: 2400–2483.5 MHz, 5170–5330 MHz, 5490–5730 MHz, 5730–5835 MHz.

Wi-Fi Max Transmission Power: CE EIRP ≤20 dBm @2400 MHz; ≤23 dBm @5150–5250 MHz; ≤23 dBm @5250–5350 MHz; ≤23 dBm @5470–5650 MHz; ≤23 dBm @5650–5725 MHz; ≤14 dBm @5725–5850 MHz.

Bluetooth: Yes.

Bluetooth Standard: Bluetooth 5.2.

Bluetooth Frequency Range: 2400–2483.5 MHz.

Bluetooth Max Transmission Power: CE EIRP ≤20 dBm @2400–2483.5 MHz.

Extension Interface: 1 × 80-pin JAE Port.

Certifications: CE.

Energy Star: Supported.

2 × Antennas.

2 × M3 Screws.

1 × Desiccant.

1 × User's Manual.
