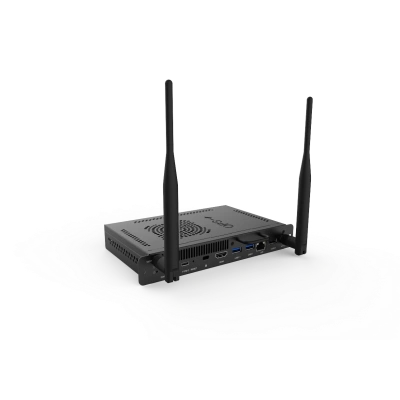

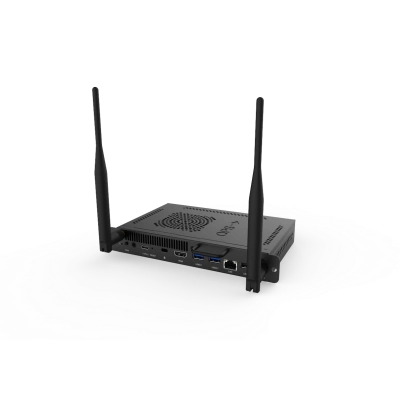

Open Pluggable Specification SP-PI7B82IS-ZW(without system)

Processor: Intel® Tiger Lake-H i7-11390H, 3.4 GHz

Chip: SOC

BIOS: AMI UEFI BIOS

Integrated Graphics Card: Intel® Iris® Xe Graphics

Sound Card: Realtek ALC897

Memory: 8 GB

Disk: 256 GB

Operating System: Windows 11 Pro

Number of Cores: 4

Number of Threads: 8

Level 3 Cache: 12 MB

Operating Temperature: –5 °C to +45 °C (+23 °F to +113 °F)

Operating Humidity: 10%–90% (RH), non-condensing

Storage Temperature: –20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity: 10%–90% (RH), non-condensing

Button: Front, 1 × power button, 1 × resetting button (recessed socket)

Wireless: 1 × M.2 2230 PCIe/USB 2.0, Wi-Fi/BT Module

Casing Material: SGCC

Product Dimensions: 119 × 180 × 30 mm (4.69 × 7.09 × 1.18 in)

Packaging Dimensions: 254 × 196 × 77 mm (10.00 × 7.72 × 3.03 in)

Net Weight: 0.75 kg (1.65 lb)

Gross Weight: 0.95 kg (2.09 lb)

Casing Color: Black

Operating Voltage: 12–19 VDC

Standby Power Consumption: 0.8 W

Power Consumption: Basic: 44.7 W, Max: 57.7 W

Network Port: 1 × RJ-45 (10/100/1000 Mbps)

USB: 2 × USB 3.1 Type-A, 1 × USB 2.0 Type-A

Type-C Port: 1 × USB 3.1 Type-C

HDMI: 1 × HDMI 1.4 Out (Max. 4K@30Hz)

Audio Port: 1 × Line-out & MIC-In (2-in-1 Connector)

Extension Interface: 1 × 80-pin JAE Port

Certifications: CE

Accessories: 2 × Antennas, 2 × M3 Screws, 1 × Desiccant, 1 × User's Manual
