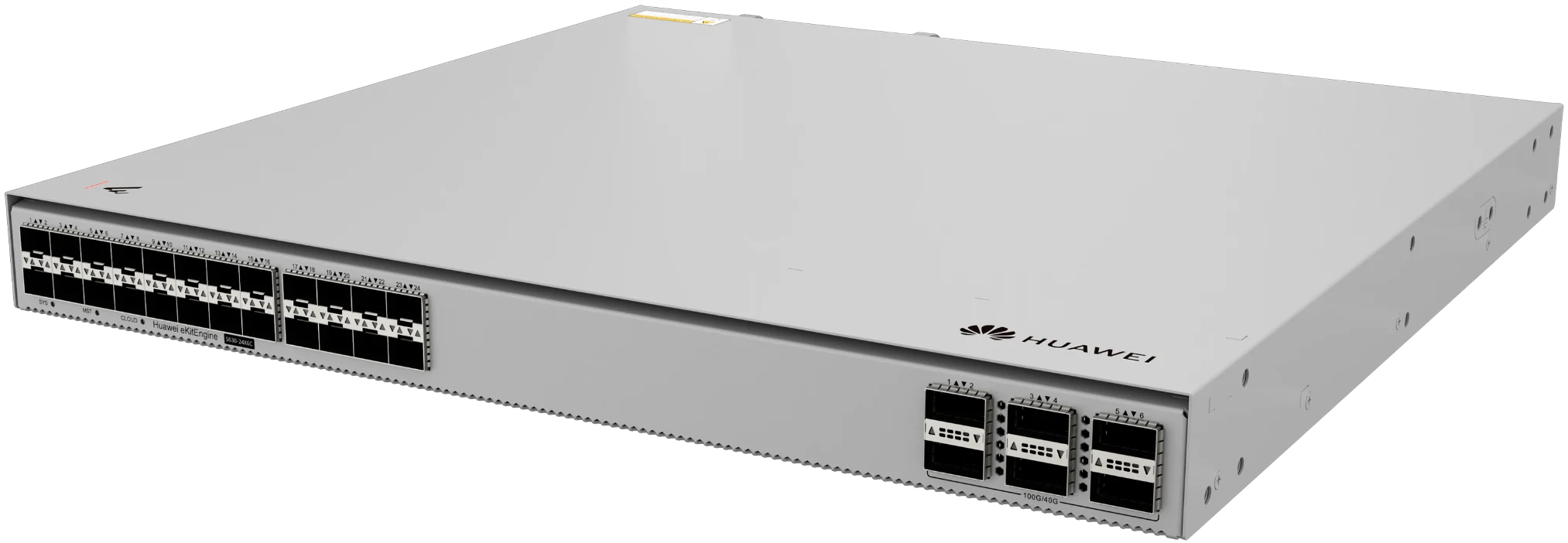

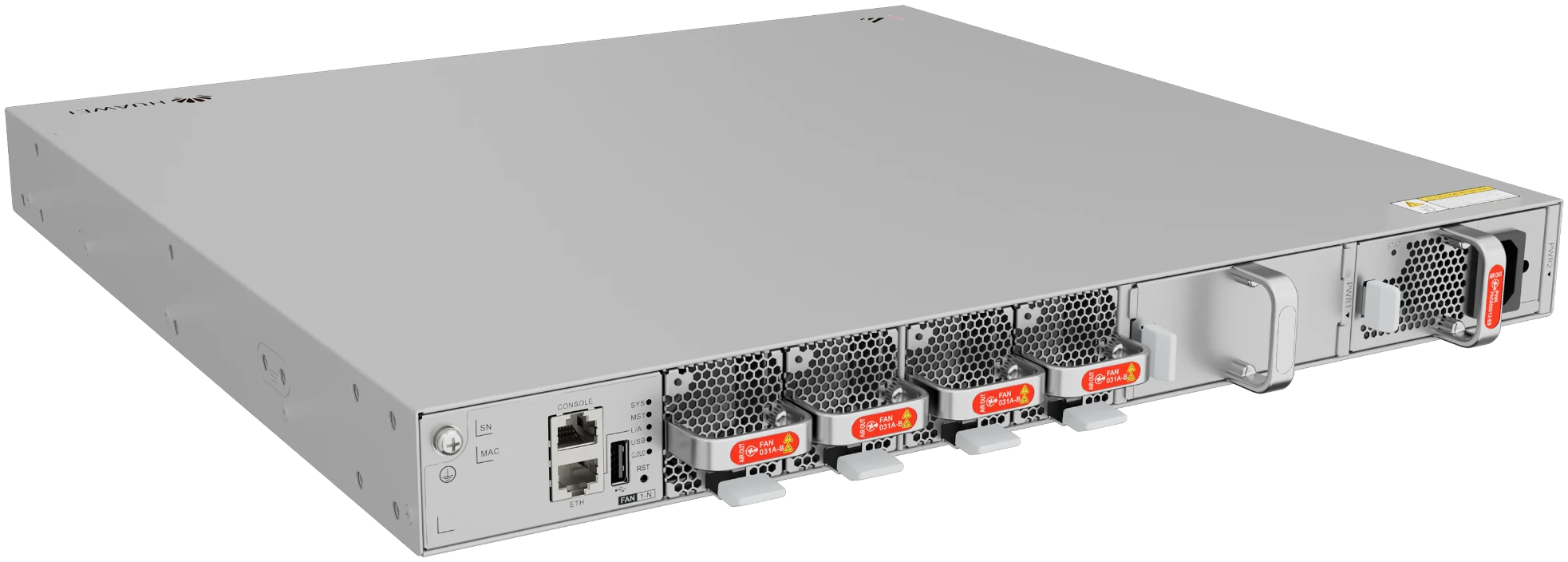

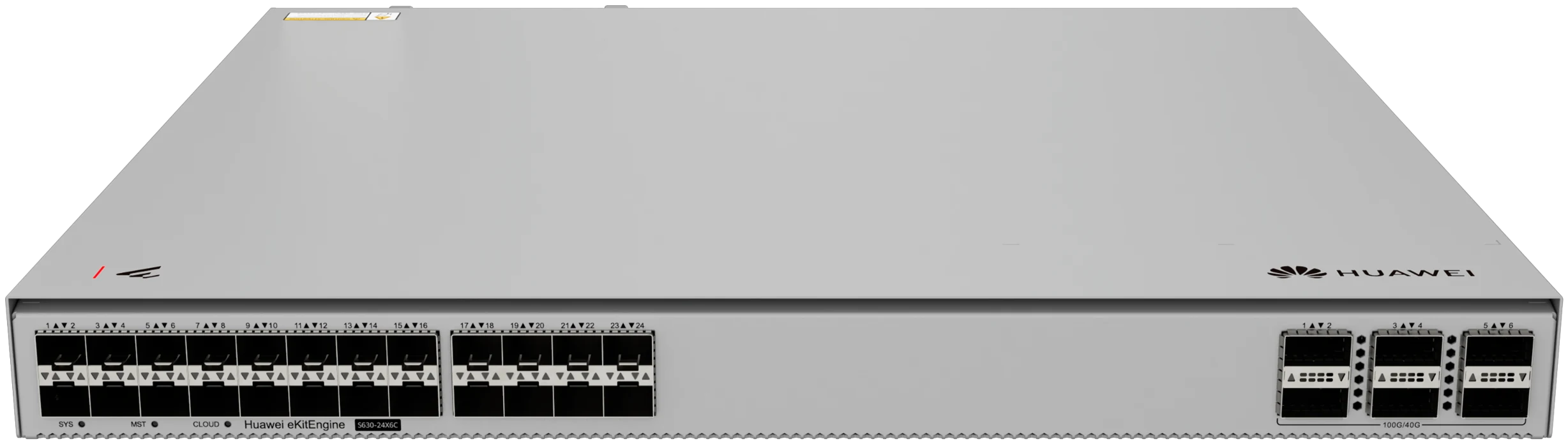

S630-24X6C

Model: S630-24X6C

Part Number: 02357NBC

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D): 175.0 mm x 650.0 mm x 550.0 mm (6.89 in. x 25.59 in. x 21.65 in.)

Installation type: Rack mounting, Desk mounting

Weight without packaging: 5.62 kg (12.39 lb)

Weight with packaging: 8.9 kg (19.62 lb)

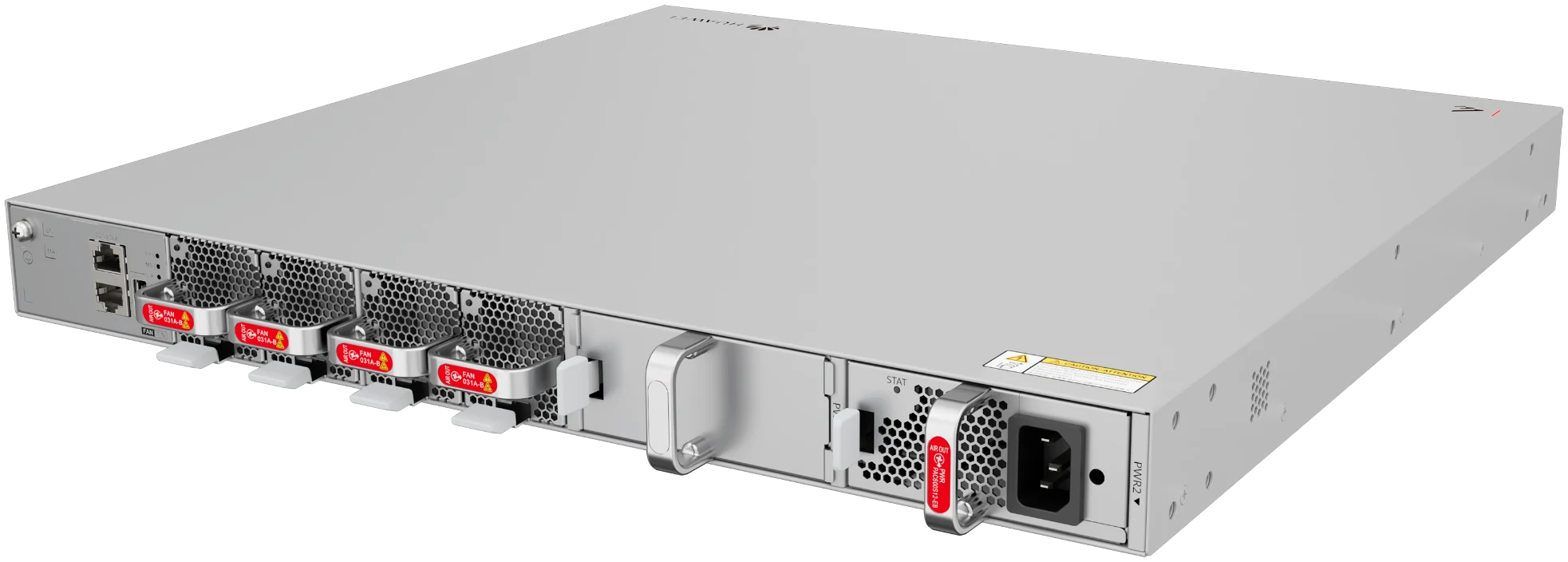

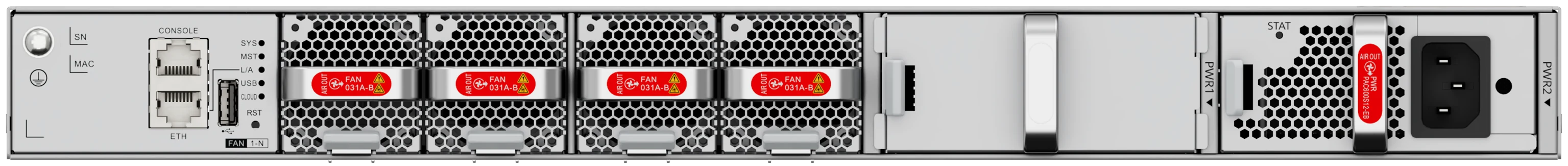

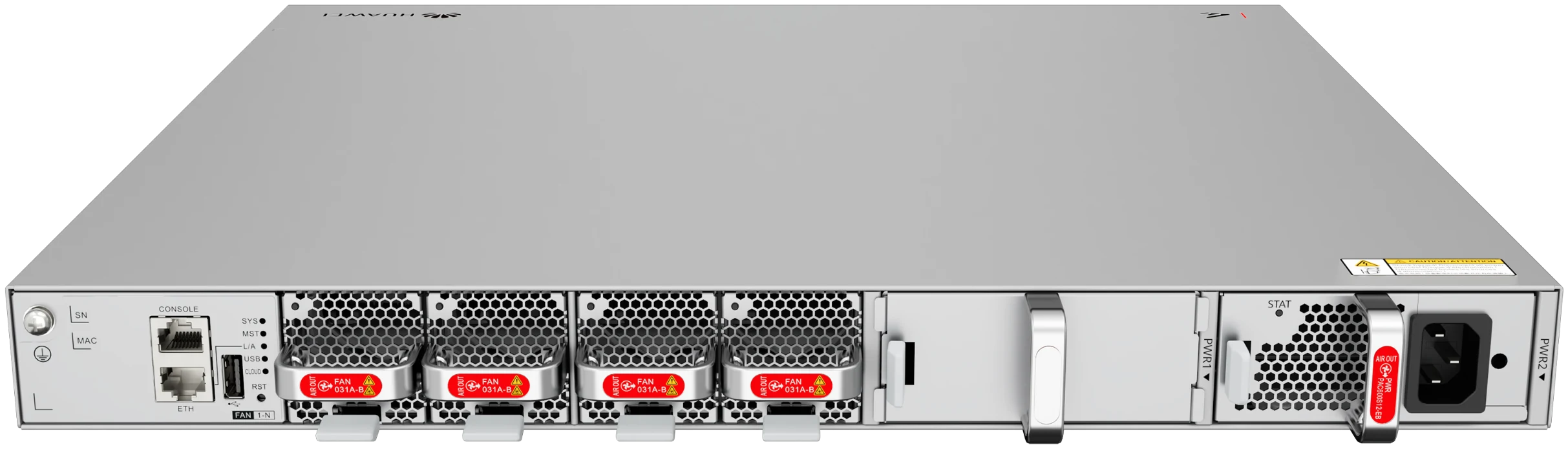

Number of fan modules: 4

Types of fans: Pluggable

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Static power consumption: 97 W

Typical power consumption: 149 W

Typical heat dissipation: 508.4 BTU/hour

Maximum power consumption: High temperature 45°C (113°F), 100% traffic, and dual power modules: 181 W

High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 254 W

Maximum heat dissipation: High temperature 45°C (113°F), 100% traffic, and dual power modules: 617.59 BTU/hour

High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 866.67 BTU/hour

Number of power slots: 2

Redundant power supply: 1+1

Pluggable AC and DC power modules can be used together in the same switch.

Power supply mode: Pluggable power supply

Rated input voltage: AC input: 100 V AC to 240 V AC; 50/60 Hz

High-voltage DC input: 240 V DC

DC input: –48 V DC to –60 V DC

Input voltage range: AC input: 90 V AC to 290 V AC; 45–65 Hz

High-voltage DC input: 190 V DC to 290 V DC

DC input: -38.4 V DC to -72 V DC

Power consumption at 100% traffic: 152 W

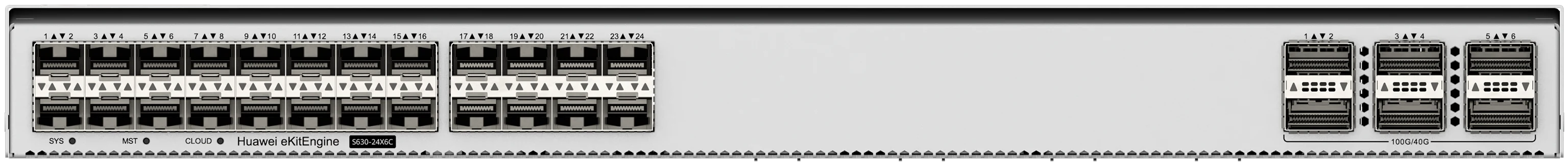

10G SFP+: 24 (10G/2.5G/1G)

100G QSFP28: 6 (100G/40G)

1 x AC power module
