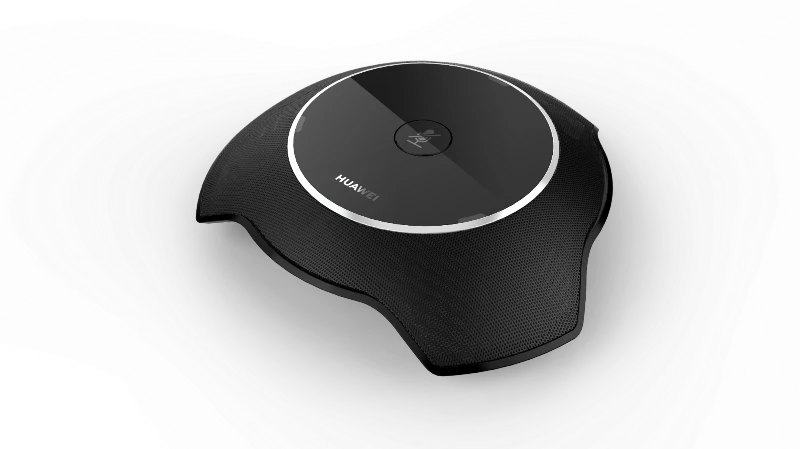

HUAWEI CloudLink Mic 500 omnidirectional microphone array angled product render on a white background

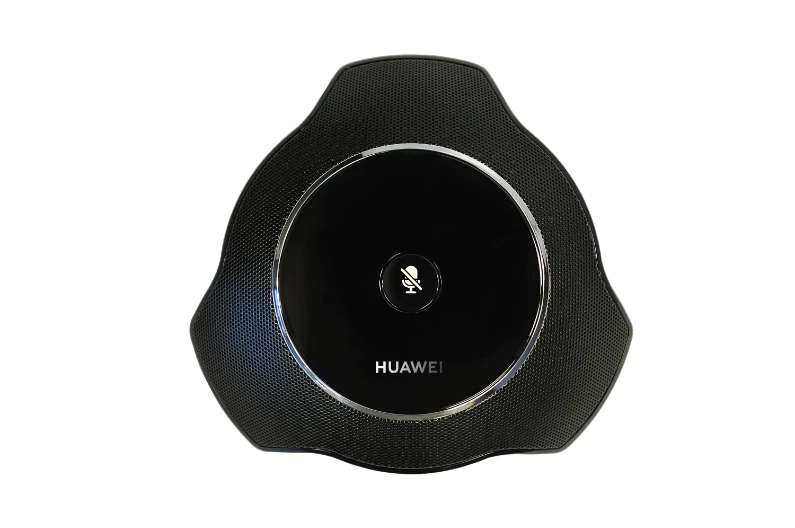

HUAWEI CloudLink Mic 500 omnidirectional microphone array front view showing the mesh body and glossy top panel

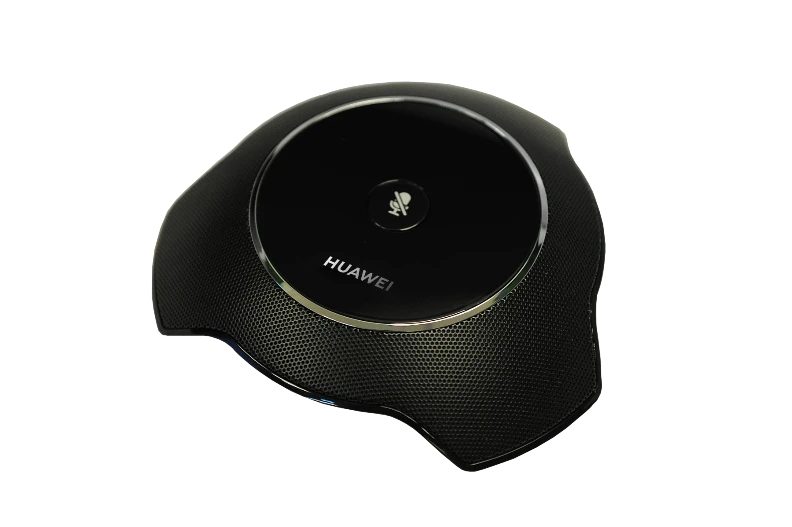

HUAWEI CloudLink Mic 500 omnidirectional microphone array angled top view showing the mesh grille

CloudLink Mic 500

Name: CloudLink Mic 500 in Saudi Arabia
Brand: Huawei
SKU: CloudLink Mic 500

(0 Customer Reviews)

HUAWEI CloudLink Mic 500 is a compact omnidirectional microphone array with 360 degree voice pickup up to 6 m. It uses lossless wideband audio transmission and 3A audio processing (AEC, ANS, AGC), and delivers full-frequency, dual-channel stereo at 48 kHz when paired with Huawei video conferencing endpoints. It is plug and play: it connects directly to the video endpoint and needs no configuration, and up to three Mic 500 units can be cascaded, depending on the endpoint model.

Order Now

At a Glance

Omnidirectional pickup, 360 degree coverage up to 6 m
Full-frequency dual-channel stereo at 48 kHz
3A audio processing: AEC, ANS and AGC

Plug and play, no configuration needed
Single-button mute control
Up to three units can be cascaded, depending on the endpoint model

Model : CloudLink Mic 500
Brand : Huawei
Category : Interactive Screens, Huawei IdeaHub, IdeaHub Accessories

Share Product:

Description

Basic Information
Product: CloudLink Mic 500 (series datasheet also covers the ceiling-mounted Mic 500T)

Voice Pickup Distance: 6 m

Voice Pickup Range: 360 degrees

Sampling Rate: 48 kHz

Microphone Frequency Response: 100 Hz to 22 kHz

Microphone Sensitivity: -38 +/-2 dB

Type: Wired mic
Working Environment
Operating Temperature: 0 C to 40 C
Design & Installation
Installation Mode: Placement (Mic 500); ceiling-mounted for Mic 500T only

Microphone Dimensions: 146 mm x 27 mm (diameter x height)

Package Dimensions: 105 mm x 255 mm x 227 mm (H x W x D)

Net Weight: 0.2 kg

Gross Weight: 0.87 kg
Specification
Audio: full-frequency, dual-channel stereo at 48 kHz

Audio Processing: 3A (AEC echo cancellation, ANS noise suppression, AGC automatic gain control)

Codecs with Huawei HD endpoints: Opus, AAC-LD, G.722, G.711, G.728

Cascading: a maximum of three Mic 500 / Mic 500T units, depending on the endpoint model
Appearance
Dark colors with silver trim; expanded metal mesh structure; compact design, no more than 15 cm; single-button mute control

Connectivity & Protocols
Omnidirectional microphone array, 360 degree pickup, 6 m range (microphone count not listed in the datasheet)
Sensors Built In
Meeting rooms and spacious conference rooms using Huawei video conferencing endpoints (TE series HD endpoints)
Application Scenario
Low power consumption (no power figures listed in the datasheet)
Power & Voltage
Wired connection directly to the video endpoint, plug and play, no configuration needed
