HUAWEI IdeaHub Controller side view showing the two side buttons and slim body

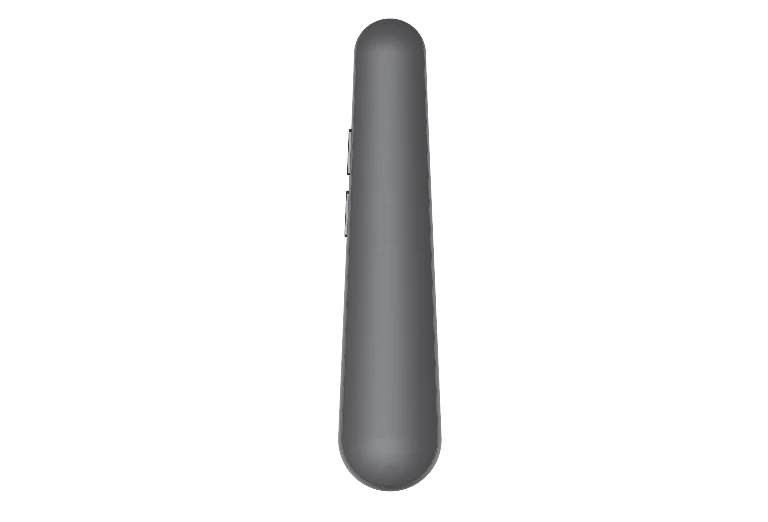

HUAWEI IdeaHub Controller back view with the two side buttons on the edge

IdeaHub Controller

Name: IdeaHub Controller in Saudi Arabia
Brand: Huawei
SKU: IdeaHub Controller

(0 Customer Reviews)

HUAWEI Smart Control 2.0 is a handheld remote designed for use with HUAWEI IdeaHub ES3 and S3 series displays, giving you more control at your fingertips. Its ergonomic design is comfortable to hold, and precise pointing lets you select a target directly on screen without navigating icons. You can tap, drag, swipe, and circle-select content to run engaging presentations, and the 12 buttons include power, home, back, camera, sound, volume, voice and menu keys. With a low-power design, it charges quickly over Type-C, and a single full charge lasts over 30 days. It works at up to 8 m in line of sight.

Datasheet:

View PDF

Order Now

At a Glance

Designed for use with HUAWEI IdeaHub
Ergonomic design for a comfortable grip
Precise pointing: select targets directly without navigating icons

Dynamic interaction: tap, drag, swipe and circle-select content
Low-power design: Type-C quick charge, over 30 days on a full charge

Model : IdeaHub Controller
Brand : Huawei
Category : Interactive Screens, Huawei IdeaHub, IdeaHub Accessories

Share Product:

Description

Basic Information
Product: Smart Control 2.0 ("Precision at Your Fingertips")

System compatibility: HUAWEI IdeaHub ES3 and S3 series

Buttons: 12, button lifespan ≥300,000 presses

Buttons and keys: Power, Sound, Left, Right, OK, Camera, Home, Back, Voice, Menu, Vol+, Vol-
Working Environment
Operating temperature: 0 to 40

Storage temperature: –20°C to +60°C

Operating humidity: 5% to 95%
Design & Installation
Dimensions (H x W x D): 144.8 mm x 40 mm x 18.9 mm

Weight: 66.8 g
Specification
Transmission distance: line-of-sight ≤8 m

Operating time: up to 30 days on a full charge

Green light on for 3s: wake up / cancel pairing / Bluetooth connected successfully

Button flashing blue: Bluetooth not connected, pairing required

Button flashing white: Bluetooth disconnected, re-pairing required

Light off: sleep mode (restart needed) / Bluetooth connected, normal use

Green light blinking: charging

Green light steady: battery fully charged

Red light on: low battery, charging needed

Sensors Built In
Control presentations on HUAWEI IdeaHub ES3 and S3 series: point, select, write, tap, drag, swipe and circle-select content
Application Scenario
Static current: ≤500 µA

UWB current: ≤120 mA

Rated operating voltage: 3.2 V to 4.48 V

Charging: Type-C quick charge
Power & Voltage
Bluetooth pairing

NFC

Type-C charging port

Mapping Switch
