S110-4P1T-BU-V2

Model: S110-4P1T-BU-V2

Noise at normal temperature (acoustic power): noise-free (no fans) below 30 dB(A)

Noise at high temperature (acoustic power): noise-free (no fans) below 30 dB(A)

Noise at normal temperature (acoustic pressure): noise-free (no fans) below 20 dB(A)

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Operating temperature variation restriction: between 1800 m and 5000 m the maximum operating temperature drops 1 C for every 220 m of added altitude

Storage temperature: -40 C to +70 C

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Long-term operating altitude: 0-5000 m

Storage altitude: 0-5000 m

Ingress protection: IP20

Chassis material: Metal

Dimensions without packaging (H x W x D): basic 230.0 mm x 49.5 mm x 29.0 mm; maximum depth 29.5 mm including rear protrusions

Dimensions with packaging (H x W x D): 90.0 mm x 280.0 mm x 200.0 mm

Chassis height: 5.17 U

Installation type: Network box

Weight without packaging: 0.62 kg

Weight with packaging: 0.82 kg

Fan types: None

Heat dissipation mode: Natural heat dissipation

MAC address entry: 4K

MTBF: 103.47 years

MTTR: 2 hours

Availability: greater than 0.99999

Static power consumption: 1.6 W

Typical power consumption: 3.7 W

Typical heat dissipation: 12.62 BTU/hour

Maximum power consumption: 3.9 W without PoE; 61.6 W at full PoE load (PoE: 54 W)

Maximum heat dissipation: 13.31 BTU/hour without PoE; 210.19 BTU/hour at full PoE load

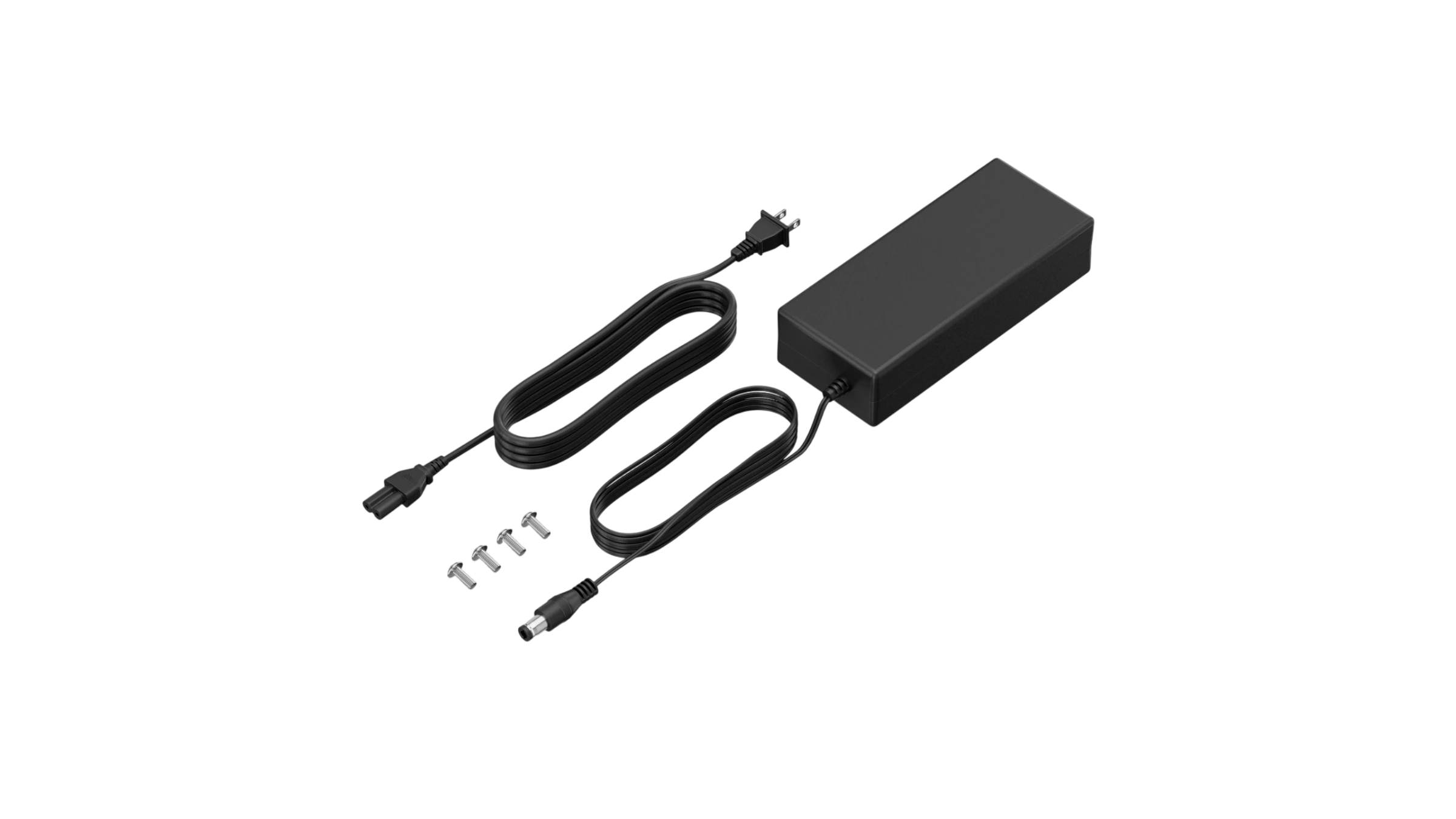

Power supply mode: Power adapter (1 x AC power adapter included)

Rated input voltage: adapter input 100-240 V AC; 50/60 Hz; adapter output 56 V DC

Input voltage range: 90-264 V AC; 47-63 Hz

Maximum input current: 1.07 A

Service port surge protection: +/-4 kV common mode

Power supply surge protection: +/-2 kV differential mode; +/-4 kV common mode

PoE: Supported

Maximum PoE power consumption: 54 W

PoE+ power interfaces: 4

Full-load PoE power 30 W (802.3at): 1 port

Full-load PoE power 15.4 W (802.3af): 3 ports

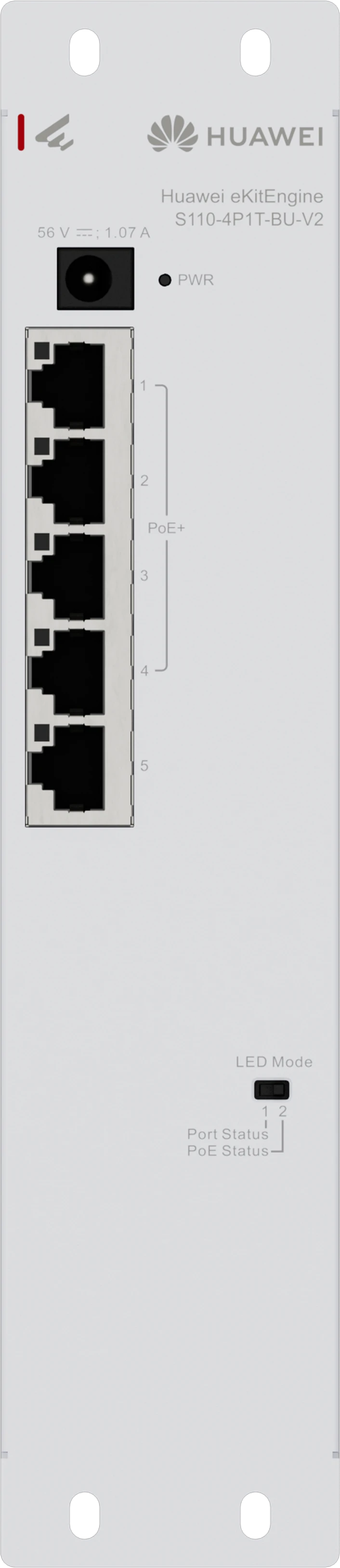

GE RJ45: 5 (4 PoE+) (1G/100M/10M)

Maximum GE ports: 5

Maximum FE ports: 5

Maximum number of physical ports: 5

Certification: EMC, safety, and manufacturing certifications
