S210I-8P4SX

Model: S210I-8P4SX

Long-term operating temperature: 0–1800 m (0–5906 ft.) altitude, industrial optical modules: Sealed cabinet: –40°C to +60°C (–40°F to +140°F); Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F); Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.)

Dimensions with packaging (H x W x D): 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.)

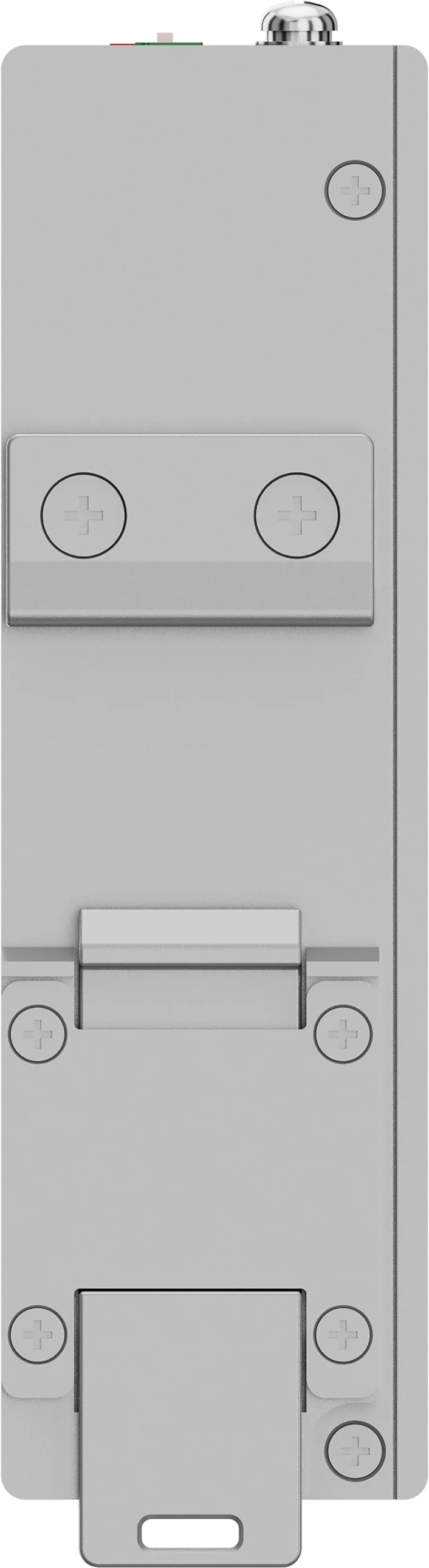

Installation type: Rack mounting, DIN rail

Weight without packaging: 0.986 kg (2.17 lb)

Weight with packaging: 1.35 kg (2.98 lb)

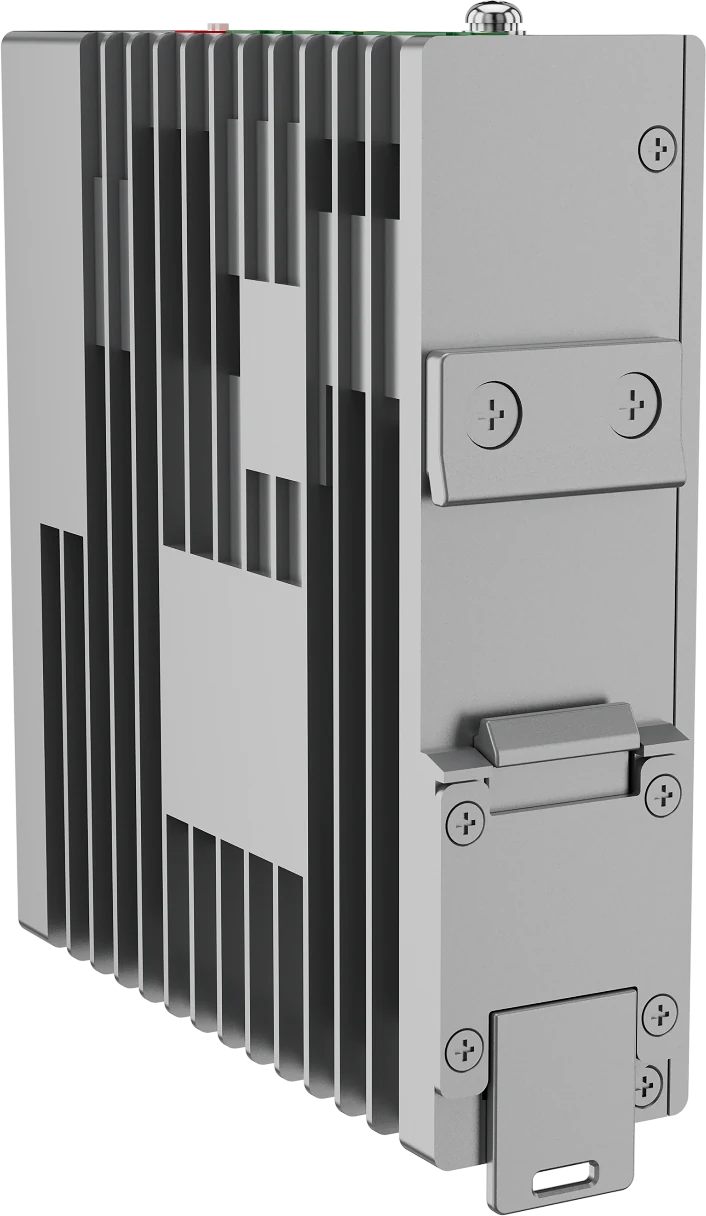

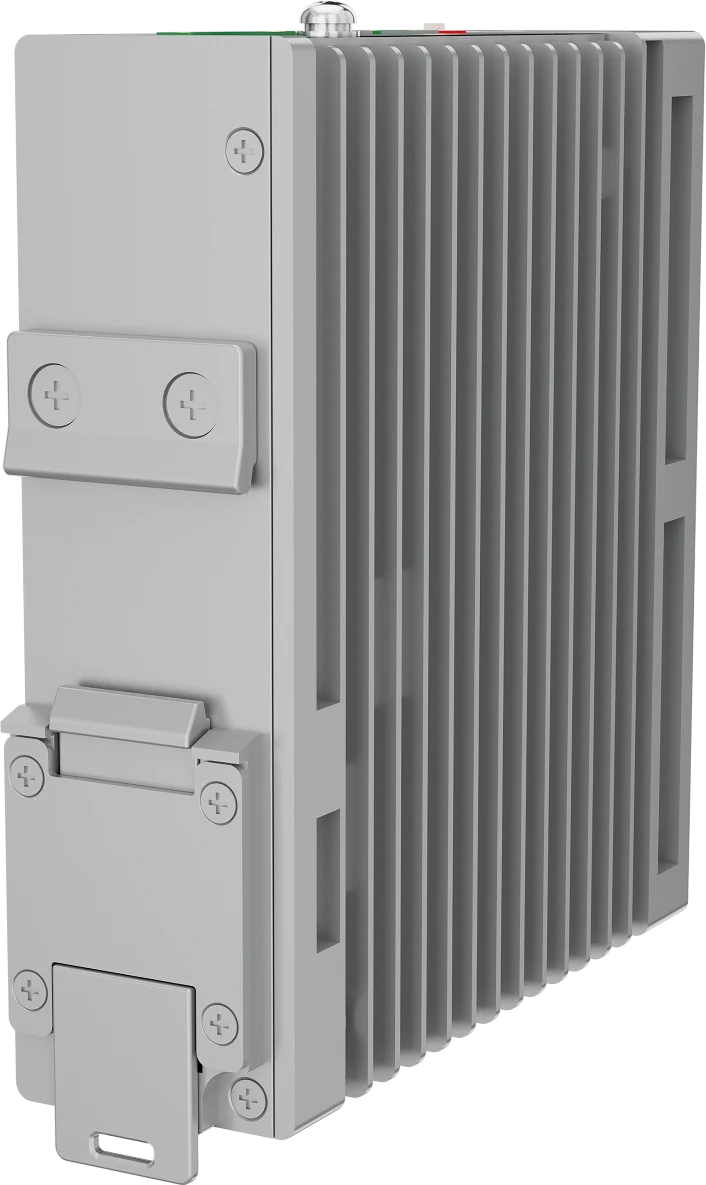

Heat dissipation mode: Natural heat dissipation

Switching capacity: 60Gbps

Packet forwarding rate: 44.6Mpps

PoE: Supported

Maximum PoE power consumption: 240 W. If the 240 W power module (PAC240S56-CN) recommended by Huawei is used, a maximum of 220 W PoE power is available. To prevent power failures caused by overload, you need to set the maximum PoE power to a value less than or equal to 220 W through the web system.

Static power consumption: 9.52 W

Typical power consumption: 15.56 W

Maximum power consumption: Without PoE: 16.24 W; Full PoE load: 257.6 W (PoE: 240 W)

Power supply mode: DC external

Input voltage range: DC input: 54 V DC to 57 V DC (PoE/PoE+); 48 V DC (PoE)

Power supply surge protection: DC power: ±2 kV in common mode and ±1 kV in differential mode

Redundant power supply: 1+1

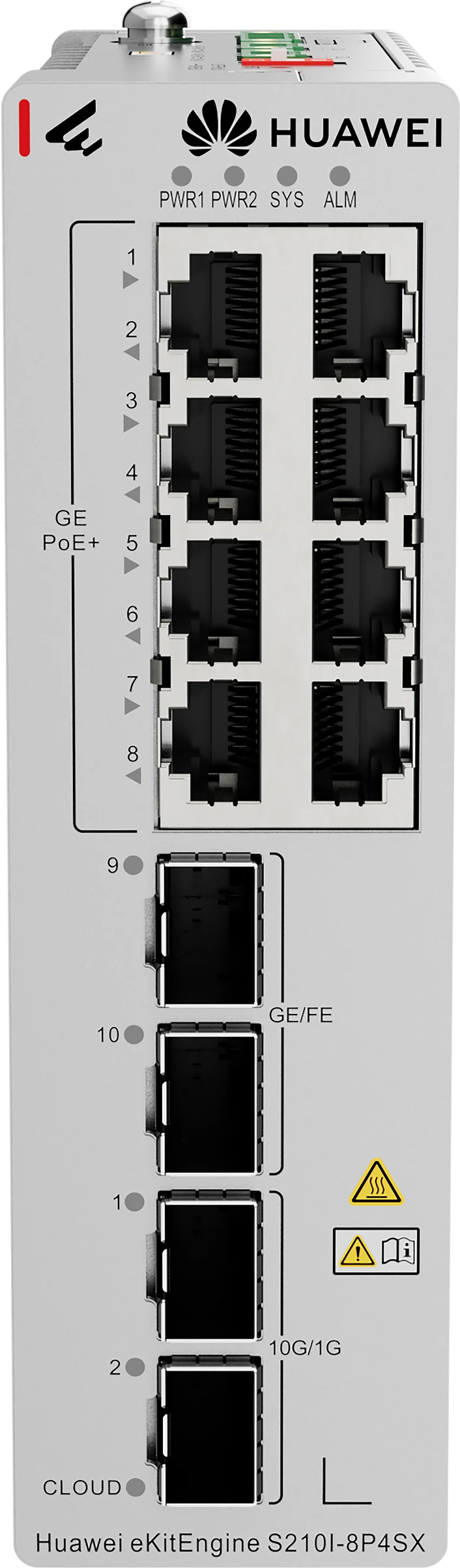

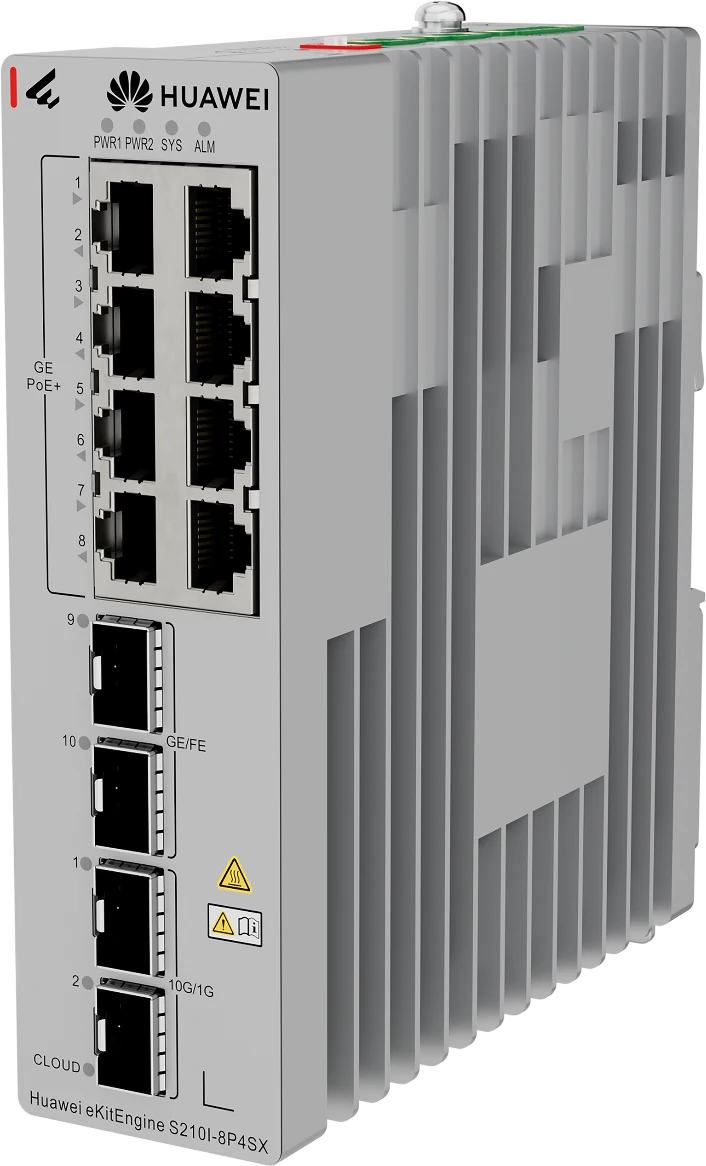

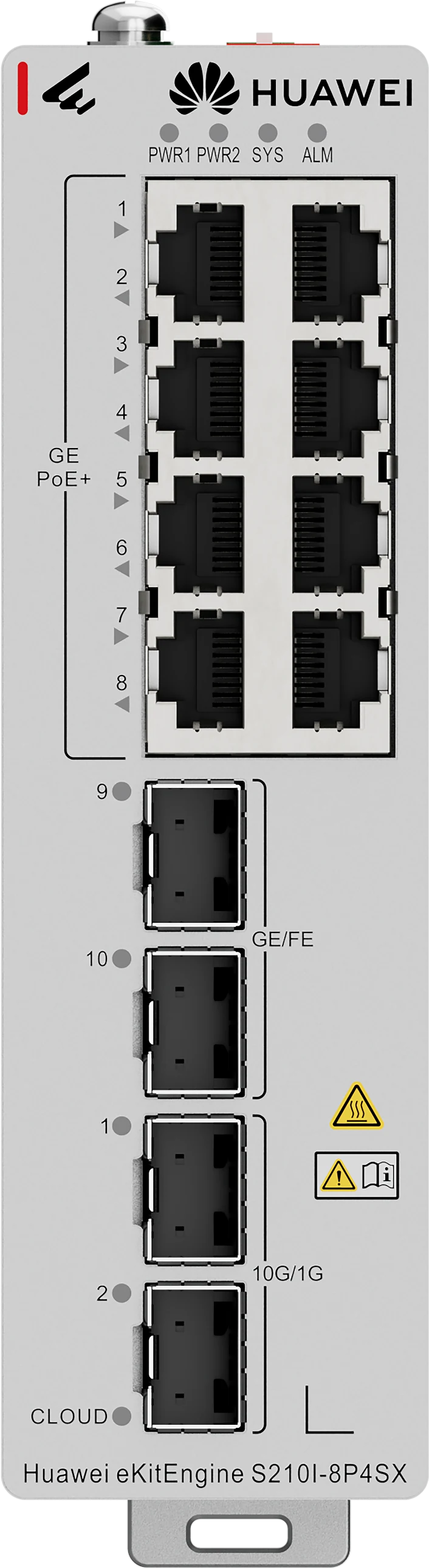

GE RJ45: 8 (PoE+) (1G/100M/10M)

GE SFP: 2 (1G/100M)

10G SFP+: 2 (10G/1G)

Certification: EMC certification, Safety certification, Manufacturing certification
