S210-24P2J

Model: S210-24P2J

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Chassis height: 1 U

Dimensions without packaging (H x W x D): Basic: 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum, including rear protrusions: 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight without packaging: 2.88 kg (6.35 lb)

Weight with packaging: 3.51 kg (7.74 lb)

Installation type: Rack mounting, Desk mounting, Wall mounting

Fan modules: 2 (built-in)

Heat dissipation mode: Air cooling; air intake from the left and front; exhaust to the right

PoE: Supported

Maximum PoE power consumption: 400 W

PoE+ power interfaces: 24

Full load PoE power consumption 30W (802.3at): 13

Full load PoE power consumption 15.4W (802.3af): 24

Static power consumption: 15.74 W

Typical power consumption: 30.32 W

Maximum power consumption: Without PoE: 32.42 W; Full PoE load: 482.68 W (PoE: 400 W)

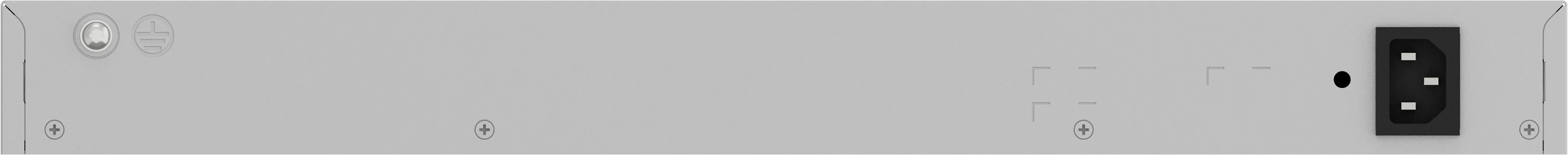

Power supply mode: AC built-in

Rated input voltage: AC: 100 V to 240 V; 50/60 Hz; High-voltage DC: 240 V DC

Input voltage range: AC: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC: 190 V DC to 290 V DC

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

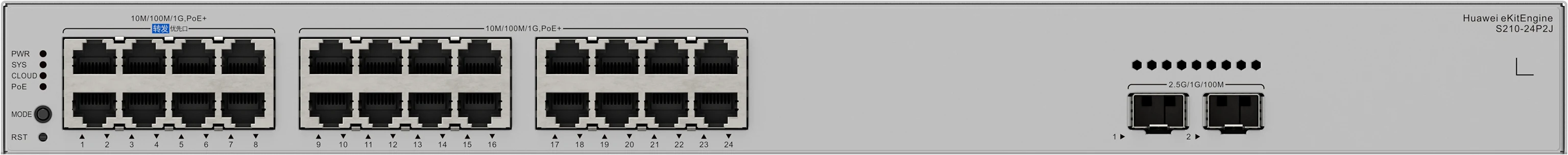

GE RJ45: 24 (PoE+) (1G/100M/10M)

2.5G SFP: 2 (2.5G/1G/100M)

Certification: EMC certification; Safety certification; Manufacturing certification
