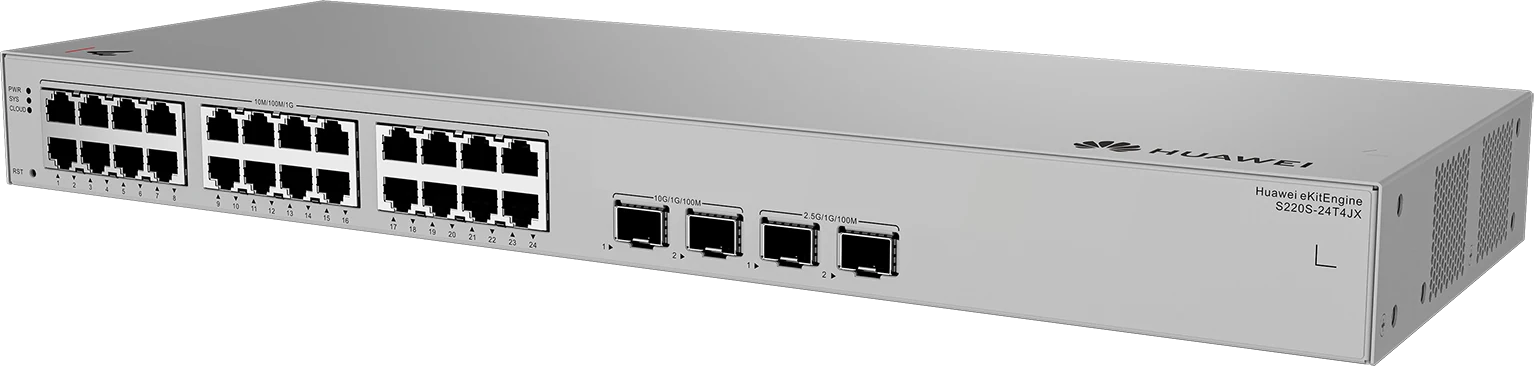

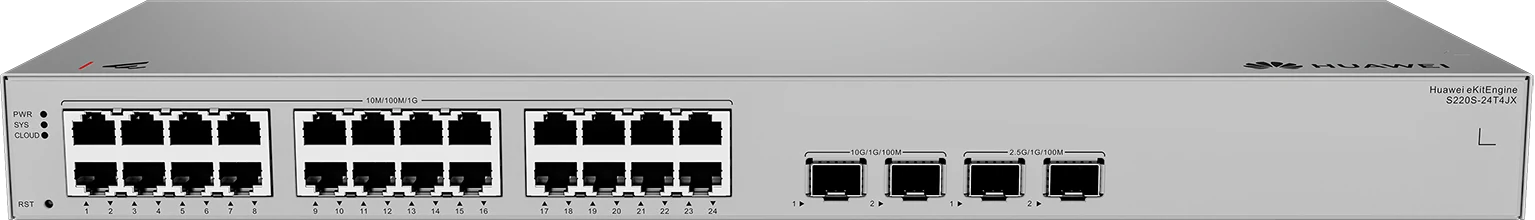

S220S-24T4JX

Model: S220S-24T4JX

Long-term operating temperature: –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 160 mm (1.72 in. x 17.40 in. x 6.30 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 167 mm (1.72 in. x 17.40 in. x 6.57 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 1.97 (4.34)

Weight with packaging: 2.76 kg (6.08 lb)

Heat dissipation mode: Natural heat dissipation

Switching capacity: 98 Gbit/s

Packet forwarding rate: 73 Mpps

Static power consumption: 11.14 W

Typical power consumption: 21.32 W

Maximum power consumption: 21.9 W

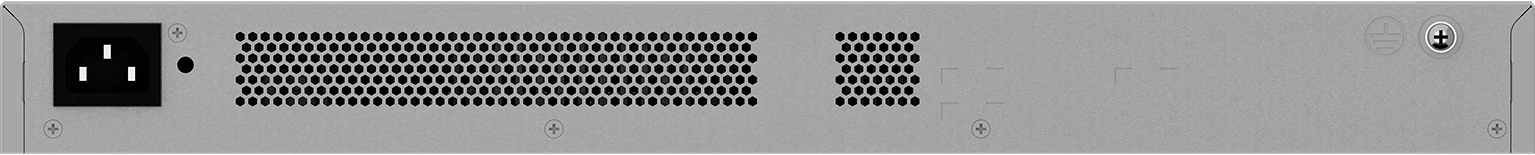

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection: ±4 kV in differential mode and ±4 kV in common mode

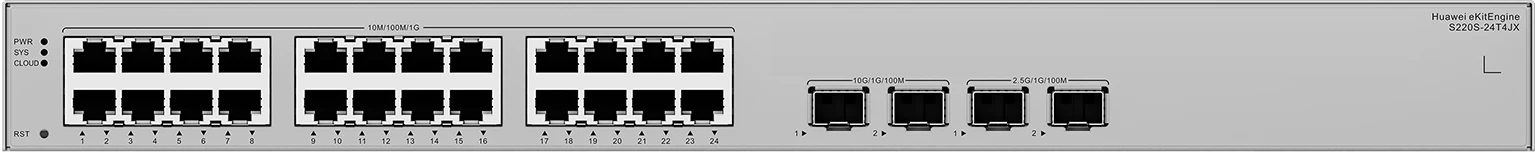

GE RJ45: 24 (1G/100M/10M)

2.5G SFP: 2 (2.5G/1G/100M)

10G SFP+: 2 (10G/1G/100M)

Certification: EMC certification, Safety certification, Manufacturing certification
