S210-8P2J

Model: S210-8P2J

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 195 mm x 160 mm (1.72 in. x 7.68 in. x 6.30 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 195 mm x 166.2 mm (1.72 in. x 7.68 in. x 6.54 in.)

Dimensions with packaging (H x W x D): 116.0 mm x 285.0 mm x 300.0 mm (4.57 in. x 11.22 in. x 11.81 in.)

Installation type: Desk mounting, Wall mounting

Weight without packaging: 1.60 kg (3.53 lb)

Weight with packaging: 2.08 kg (4.59 lb)

Heat dissipation mode: Natural heat dissipation

PoE: Supported

Maximum PoE power consumption: 128 W

Static power consumption: 7.15 W

Typical power consumption: 16.74 W

Maximum power consumption: Without PoE: 14.60 W (device), 17.59 W (device + adapter); Full PoE load: 161.02 W (PoE: 128 W)

Power supply mode: Power adapter

Input voltage range: Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz

Power supply surge protection: ±4 kV in differential mode and ±4 kV in common mode

PoE+ power interfaces: 8

Full load PoE power consumption 30W (802.3at): 4

Full load PoE power consumption 15.4W (802.3af): 8

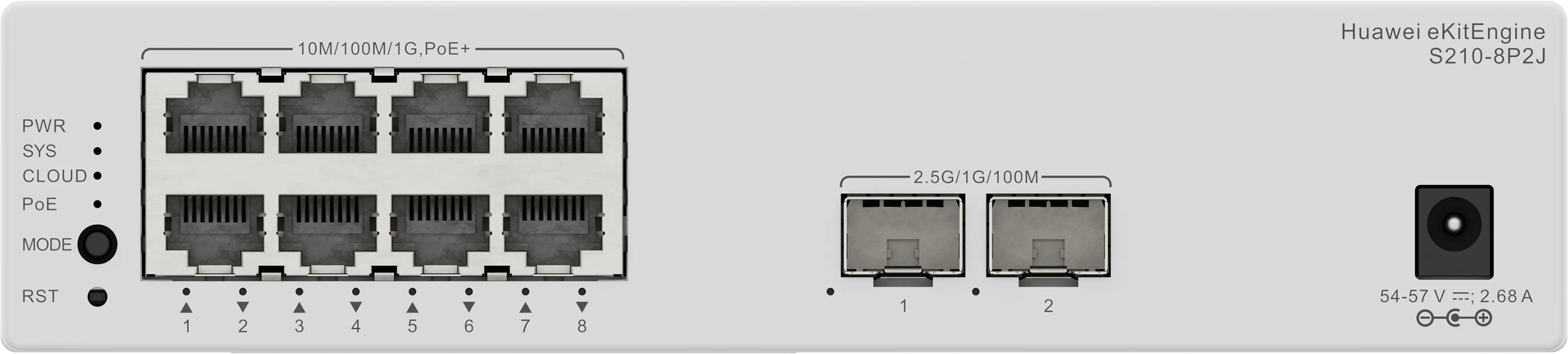

GE RJ45: 8 (PoE+) (1G/100M/10M)

2.5G SFP: 2 (2.5G/1G/100M)

Certification: EMC certification; Safety certification; Manufacturing certification
