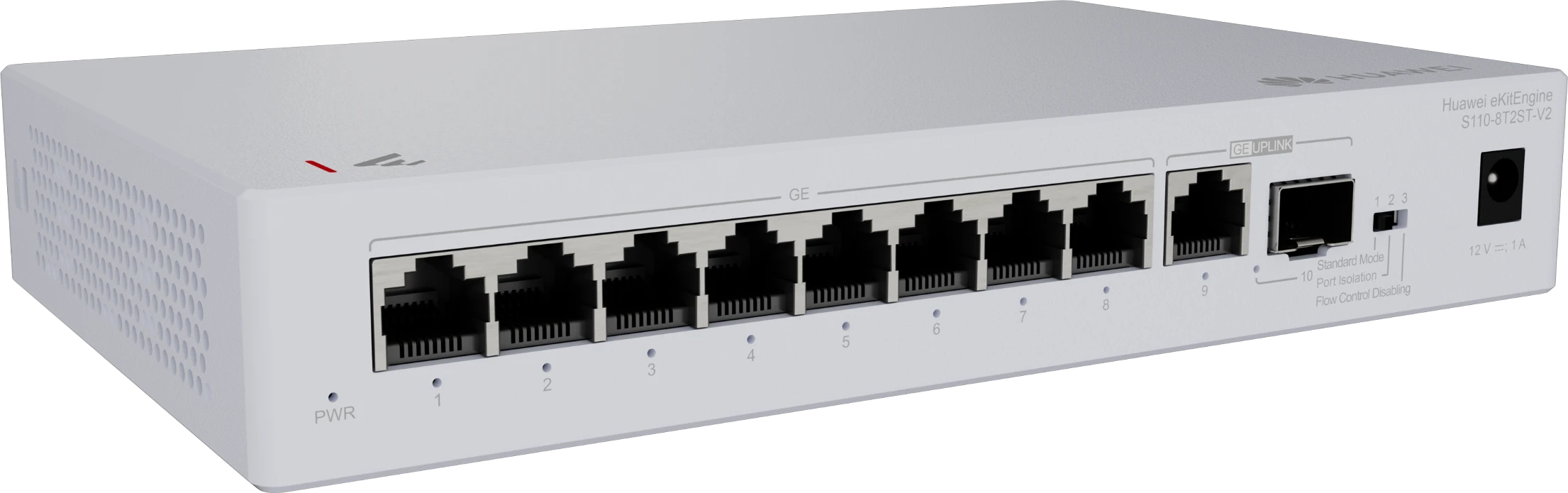

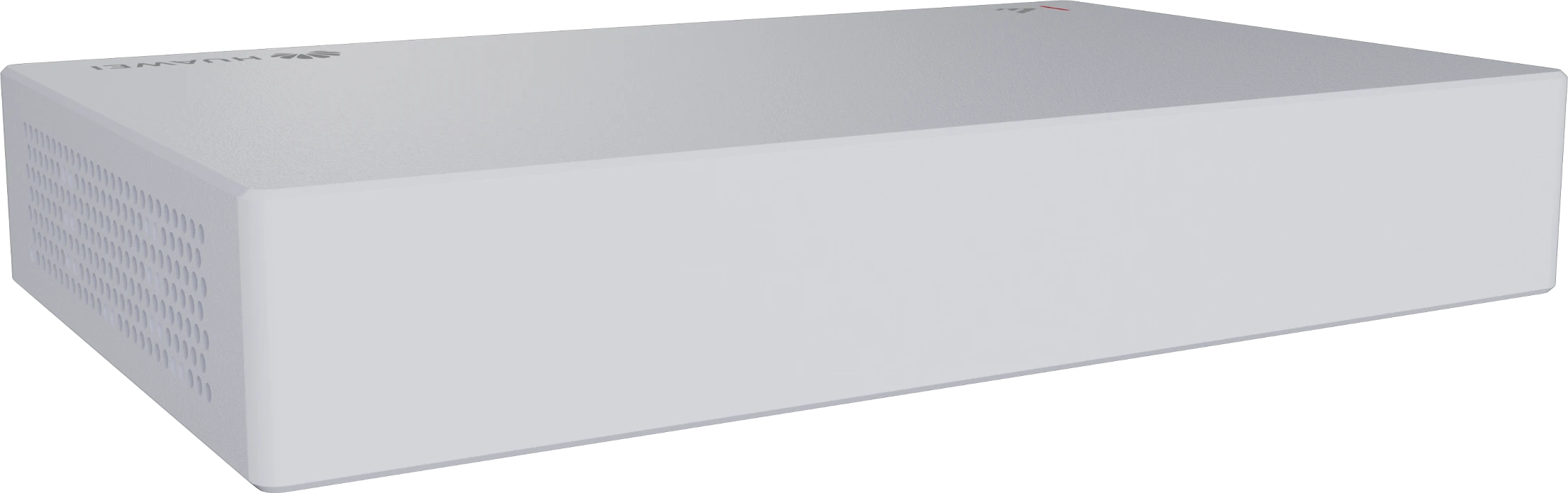

S110-8P2ST-V2 (110V/220V AC)

Model: S110-8P2ST-V2 (110V/220V AC)

Noise at normal temperature (acoustic power): noise-free (no fans) below 30 dB(A)

Noise at high temperature (acoustic power): noise-free (no fans) below 30 dB(A)

Noise at normal temperature (acoustic pressure): noise-free (no fans) below 20 dB(A)

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Operating temperature variation restriction: at 1800-5000 m the maximum operating temperature drops 1 C for every 220 m of added altitude

Storage temperature: -40 C to +70 C

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Long-term operating altitude: 0-5000 m

Storage altitude: 0-5000 m

Ingress protection: IP20

Chassis material: PC+ABS

Dimensions without packaging (H x W x D): basic 35 mm x 210.0 mm x 130.0 mm; maximum 36.5 mm x 210.0 mm x 131.7 mm

Dimensions with packaging (H x W x D): 150.0 mm x 270.0 mm x 200.0 mm

Chassis height: 0.8 U

Installation type: Desk mounting, wall mounting

Weight without packaging: 0.91 kg

Weight with packaging: 1.26 kg

Fan type: None

Heat dissipation mode: Natural convection

MAC address entries: 4K

MTBF: 78.77 years

MTTR: 2 hours

Availability: greater than 0.99999

Working mode: Standard Mode, Port Isolation, Ports 1 to 4 at 10 Mbps

Static power consumption: 2.7 W

Typical power consumption: 8.2 W

Typical heat dissipation: 27.98 BTU/hour

Maximum power consumption: 8.4 W without PoE; 142 W at full PoE load (PoE: 124 W)

Maximum heat dissipation: 28.66 BTU/hour without PoE; 484.52 BTU/hour at full PoE load

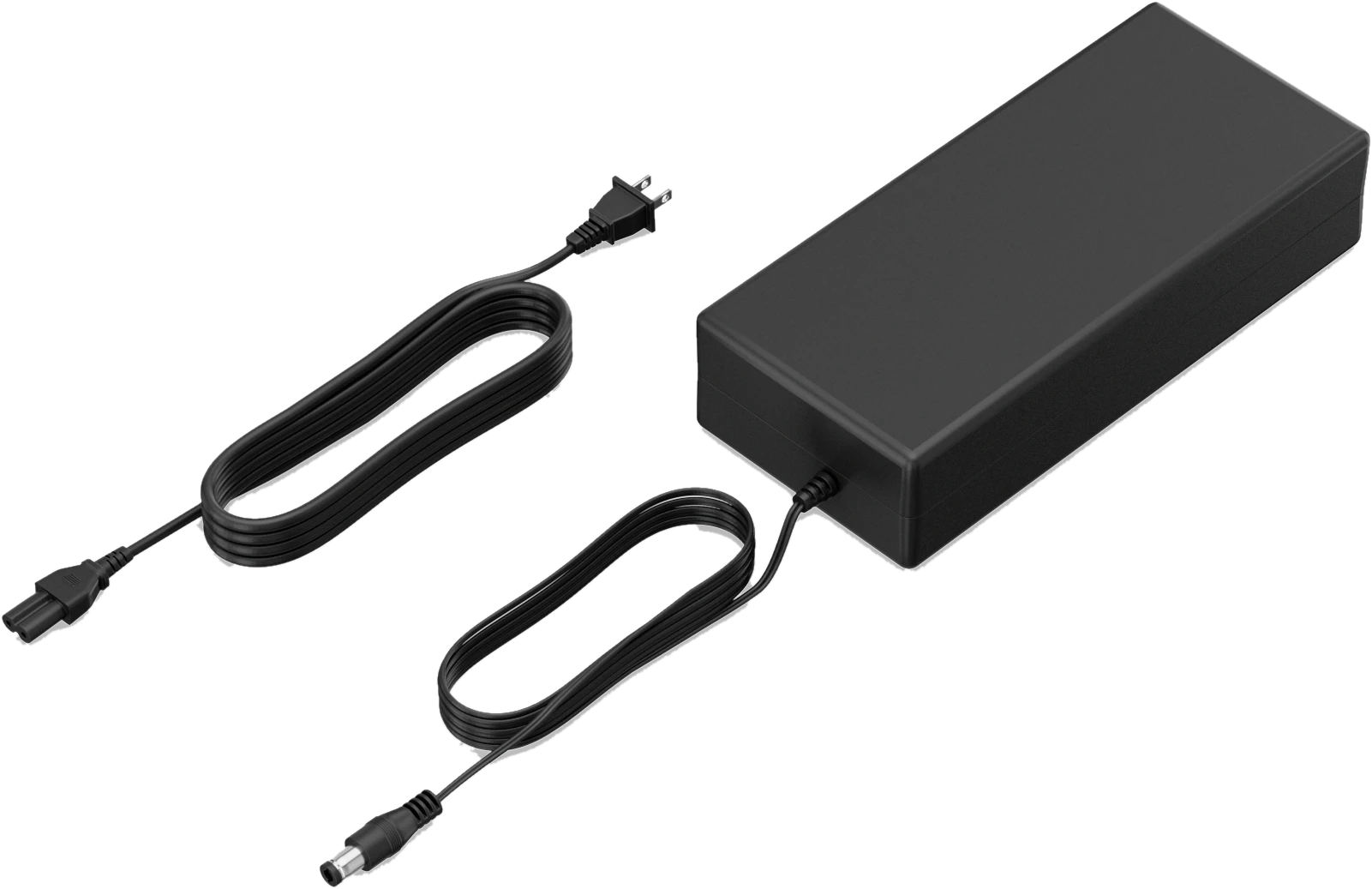

Power supply mode: Power adapter (1 x AC power adapter included)

Rated input voltage: adapter input 170-240 V AC; 50/60 Hz; adapter output 54 V DC

Input voltage range: adapter input 170-264 V AC; 47-63 Hz

Maximum input current: 2.78 A

Service port surge protection: +/-4 kV common mode

Power supply surge protection: +/-4 kV differential mode; +/-4 kV common mode

PoE: Supported

Maximum PoE power: 124 W

PoE+ power interfaces: 8

Full-load PoE 30 W (802.3at): 4 ports

Full-load PoE 15.4 W (802.3af): 8 ports

NOTE: the title on the page says 110V/220V AC, but the page lists adapter input 170-240 V AC (170-264 V AC range).

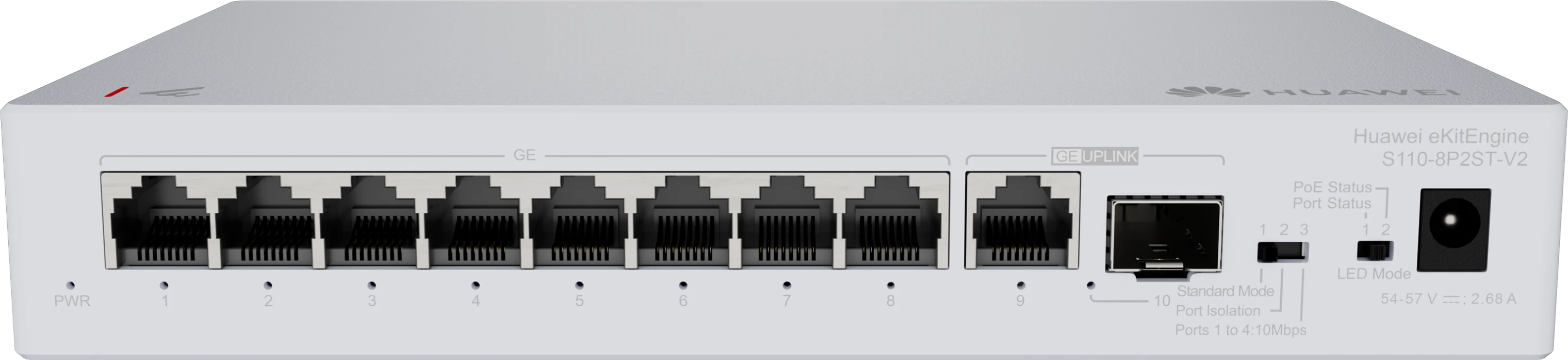

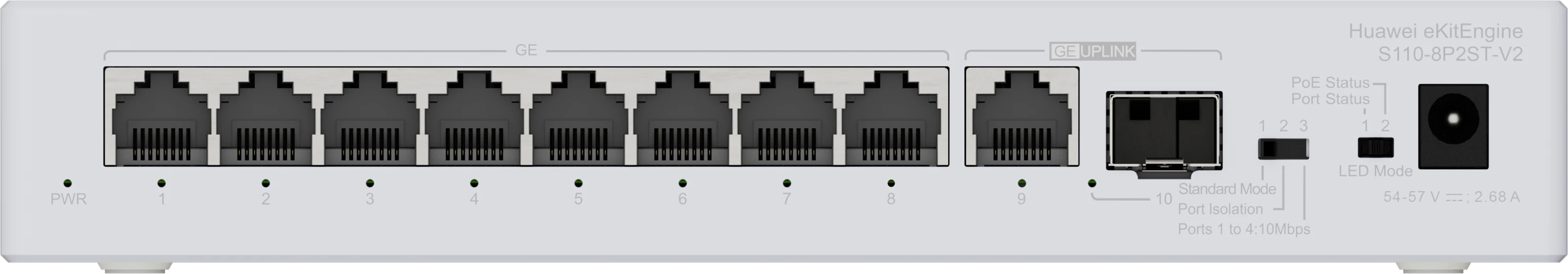

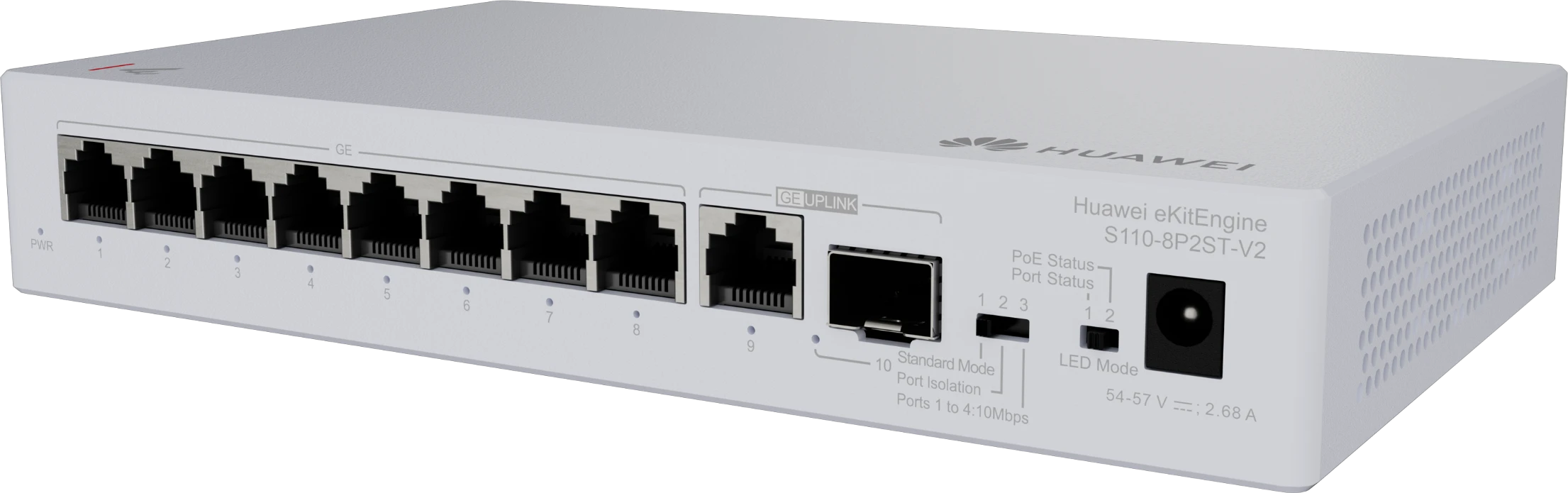

GE RJ45: 9 (8 PoE+) (1G/100M/10M)

GE SFP: 1 (1G/100M)

Maximum physical ports: 10

Maximum GE ports: 10

Maximum FE ports: 10

Certification: EMC, safety, and manufacturing certifications
