S220S-8P4JX

Model: S220S-8P4JX

Long-term operating temperature: –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 217 mm (1.72 in. x 12.60 in. x 8.54 in.)

Dimensions with packaging (H x W x D): 91.0 mm x 465.0 mm x 355.0 mm (3.58 in. x 18.31 in. x 13.98 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 2.53 kg (5.58 lb)

Weight with packaging: 3.43 kg (7.56 lb)

Heat dissipation mode: Natural heat dissipation

Switching capacity: 66 Gbit/s

Packet forwarding rate: 49 Mpps

PoE: Supported

Maximum PoE power consumption: 128 W

Static power consumption: 13.93 W

Typical power consumption: 22.73 W

Maximum power consumption: Without PoE: 23.23 W; Full PoE load: 161.56 W (PoE: 128 W)

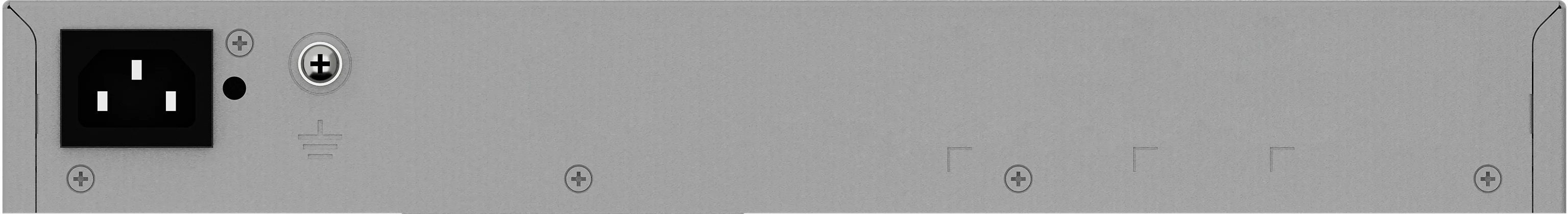

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

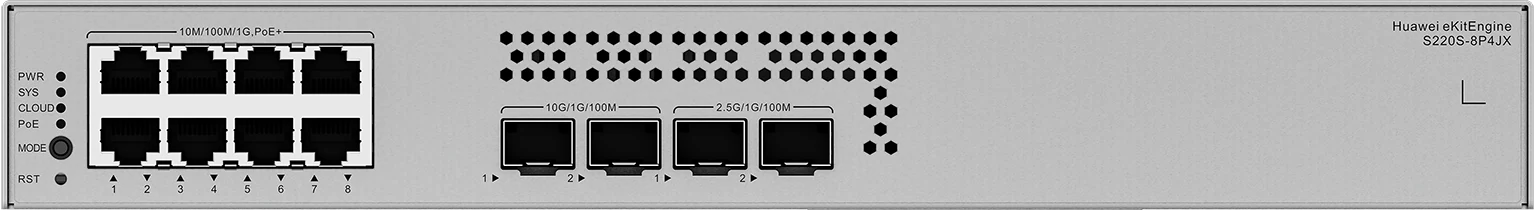

GE RJ45: 8 (PoE+) (1G/100M/10M)

2.5G SFP: 2 (2.5G/1G/100M)

10G SFP+: 2 (10G/1G/100M)

Certification: EMC certification, Safety certification, Manufacturing certification
