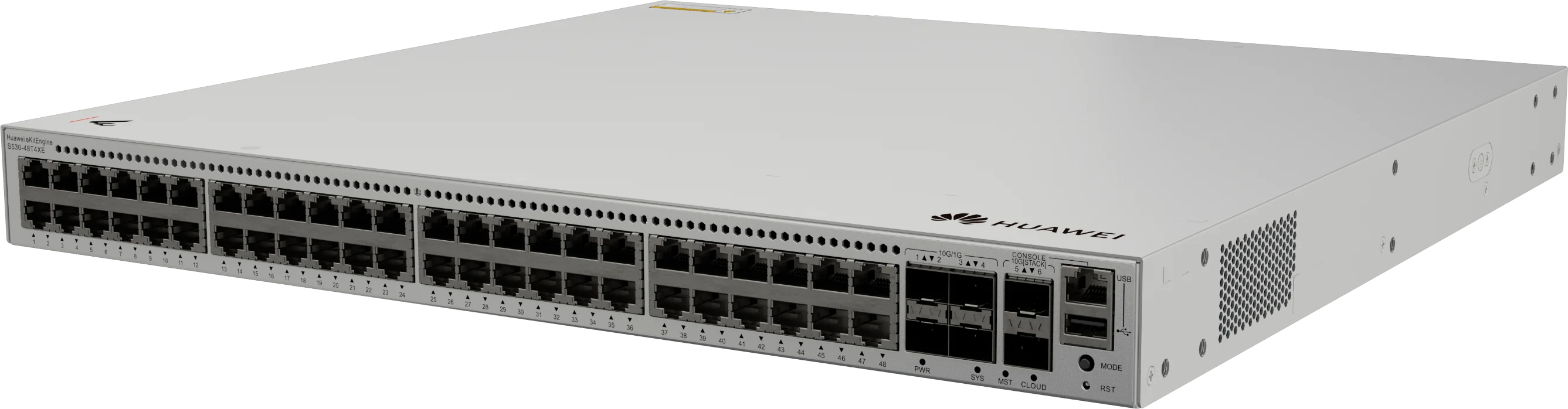

S530-48T4XE

Model: S530-48T4XE

Part Number: 98012951

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D): 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Installation type: Rack mounting, Desk mounting

Weight without packaging: 5.43 kg (11.97 lb)

Weight with packaging: 7.19 kg (15.85 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left, front, and right and air exhaust from rear

Switching capacity: 216 Gbit/s

Packet forwarding rate: 160 Mpps

iStack: Up to 9 switches of the same series in a stack

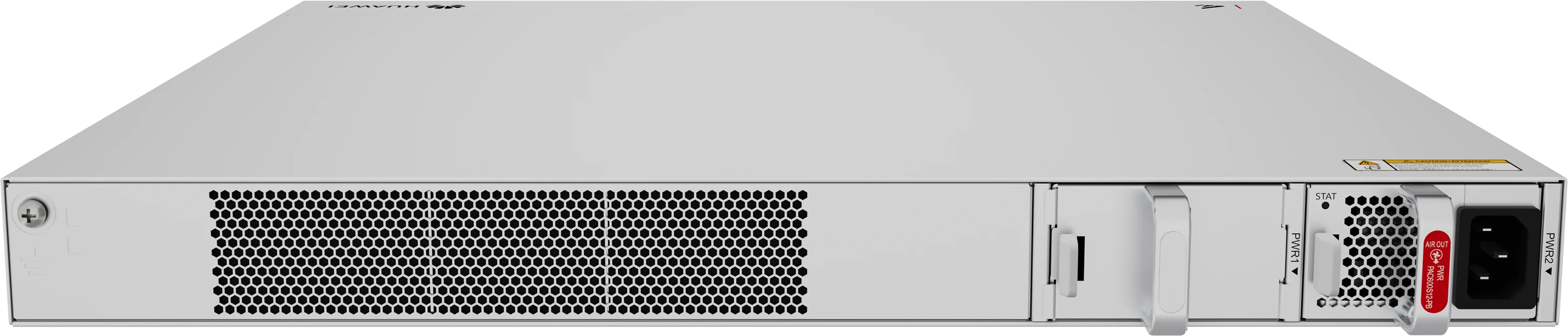

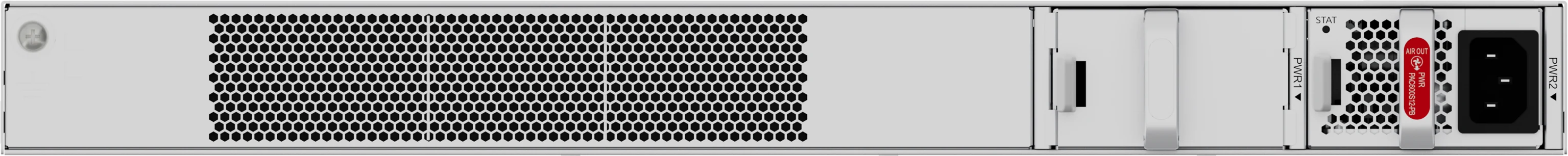

Number of power slots: 2

Static power consumption: 25.31 W

Typical power consumption: 39.10 W

Maximum power consumption: 55.12 W (with two 80 W AC power modules)

64.51 W (with two 180 W AC power modules)

93.26 W (with two 1200 W DC power modules)

Redundant power supply: 1+1 (Note: Power modules without fans and power modules with fans cannot be installed in the same chassis.)

Power supply mode: Pluggable power supply

Input voltage range: AC input: 90 V AC to 290 V AC; 45–65 Hz

High-voltage DC input: 190 V DC to 290 V DC

DC input: -38.4 V DC to -72 V DC

Power supply surge protection: Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

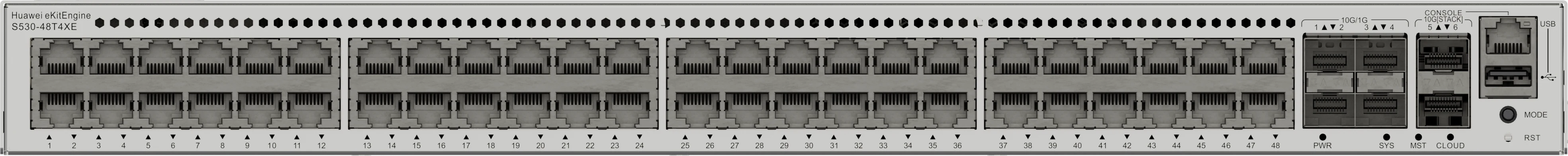

GE RJ45: 48 (1G/100M/10M)

10G SFP+: 4 (10G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
