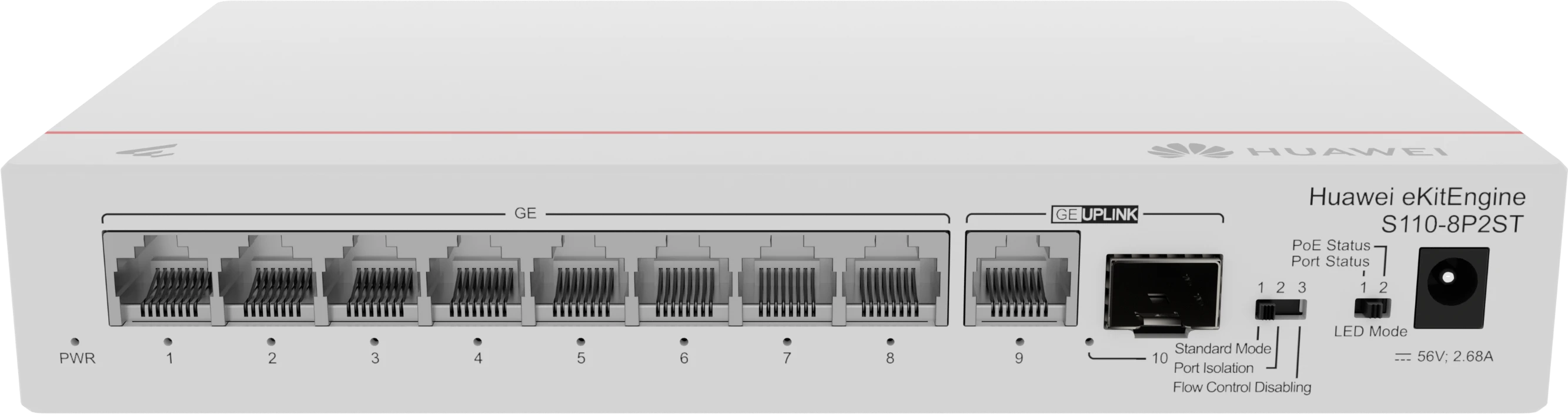

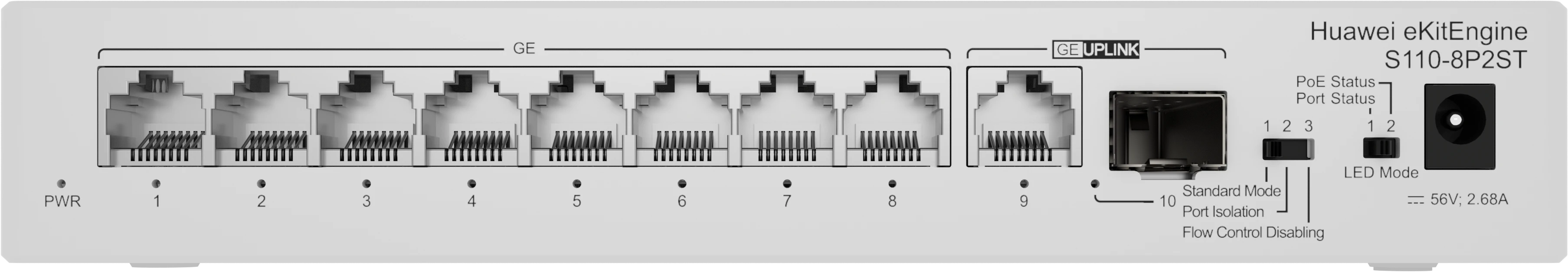

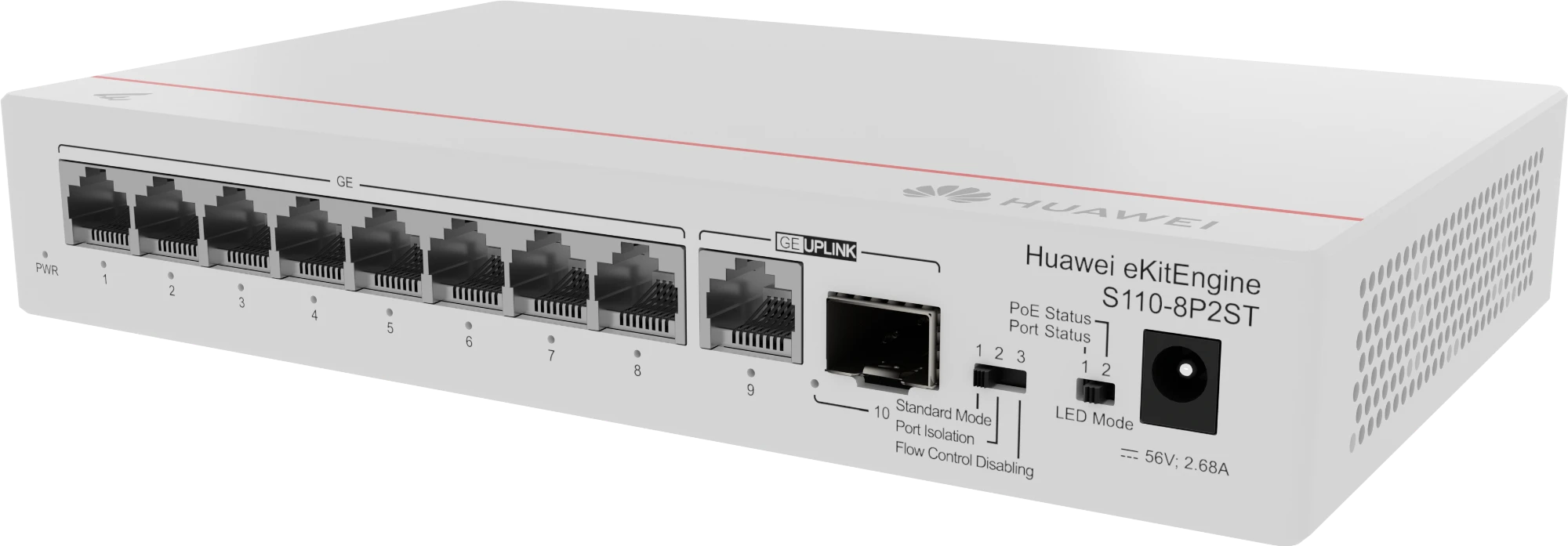

S110-8P2ST (90 V AC to 264 V AC)

Model: S110-8P2ST (90 V AC to 264 V AC)

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Operating temperature variation restriction: at 1800-5000 m the maximum operating temperature drops 1 C for every 220 m of altitude gain

Storage temperature: -40 C to +70 C

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Long-term operating altitude: 0-5000 m

Storage altitude: 0-5000 m

Dimensions without packaging (H x W x D): basic 35 mm x 210.0 mm x 130.0 mm; maximum 36.5 mm x 210.0 mm x 131.7 mm

Dimensions with packaging (H x W x D): 150.0 mm x 270.0 mm x 200.0 mm

Chassis height: 0.8 U

Installation type: Desk mounting, wall mounting

Weight without packaging: 1.11 kg (2.45 lb)

Weight with packaging: 1.46 kg (3.22 lb)

Heat dissipation mode: Natural heat dissipation

Switching capacity: 20 Gbit/s

Packet forwarding rate: 14.88 Mpps

Typical power consumption: 11 W

Maximum power consumption: 11 W without PoE; 155 W at full PoE load (PoE: 124 W)

Static power consumption: 4 W

100% power consumption: 11 W

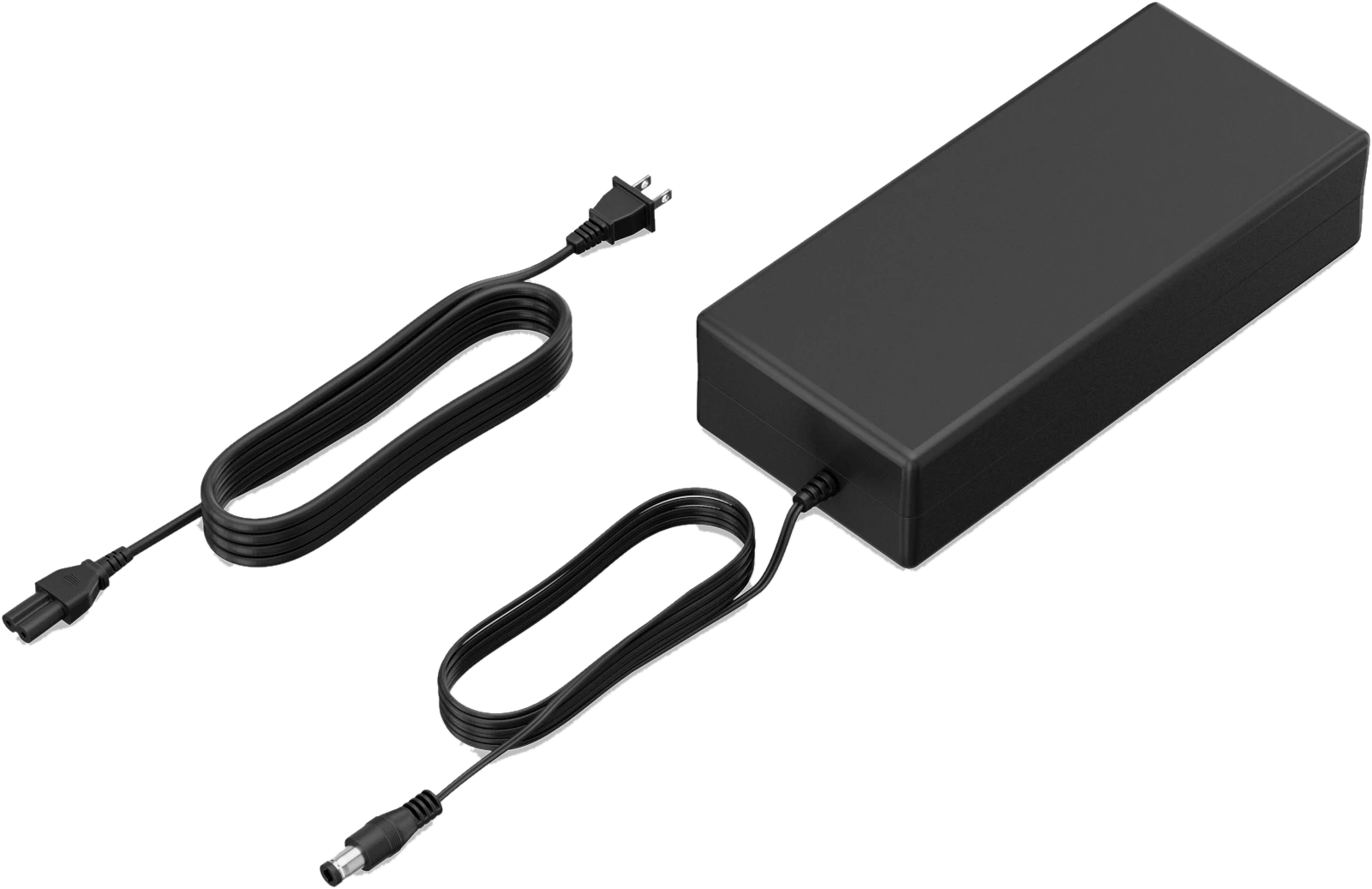

Power supply mode: Power adapter

Rated input voltage: adapter input 100-240 V AC; 50/60 Hz; adapter output 56 V DC

Input voltage range: 90-264 V AC; 47-63 Hz

Maximum input current: 2.68 A

Service port surge protection: common mode +/-4 kV

Power supply surge protection: differential mode +/-6 kV; common mode +/-6 kV

PoE: Supported

Maximum PoE power consumption: 124 W

PoE+ power interfaces: 8

Full-load PoE 15.4 W (802.3af): 8 ports

Full-load PoE 30 W (802.3at): 4 ports

GE RJ45: 9 (8 PoE+)

GE SFP: 1

Maximum physical ports on device: 10

Maximum GE ports: 10

Maximum FE ports: 10

Certification: EMC, safety, and manufacturing certifications
