S310S-8P4UN2X

Model: S310S-8P4UN2X

Part Number: 98012849

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis height: 1 U

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D): 116.0 mm x 285.0 mm x 300.0 mm (4.57 in. x 11.22 in. x 11.81 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 2.42 kg (5.34 lb)

Weight with packaging: 2.98 kg (6.57 lb)

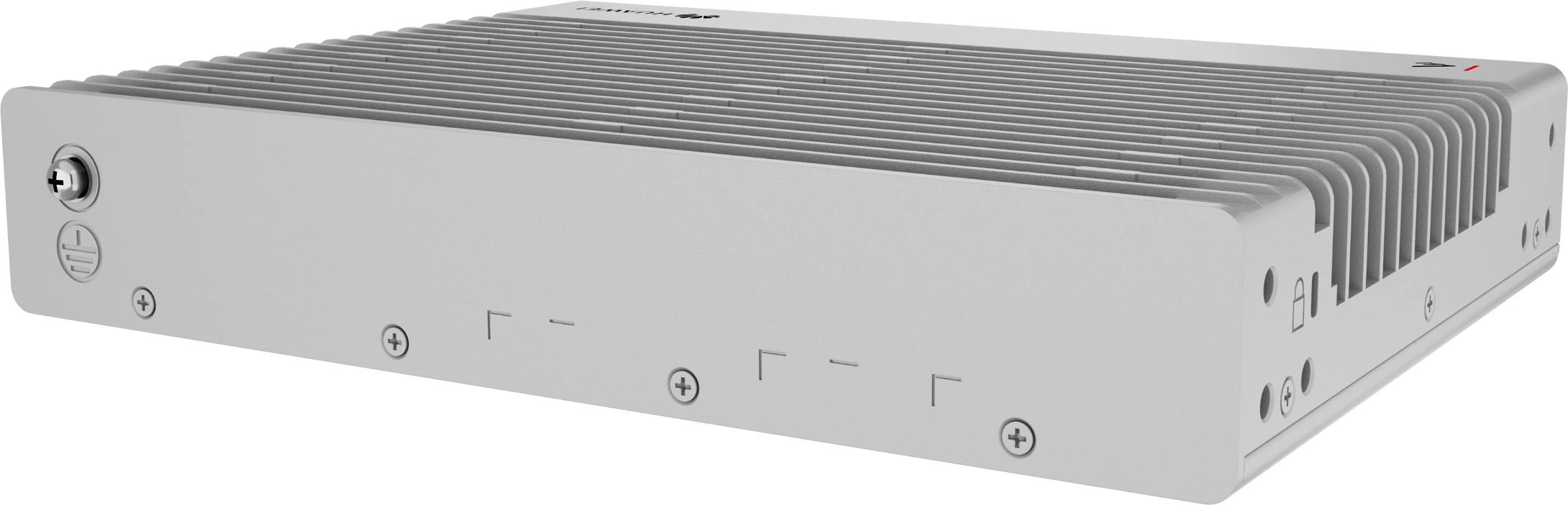

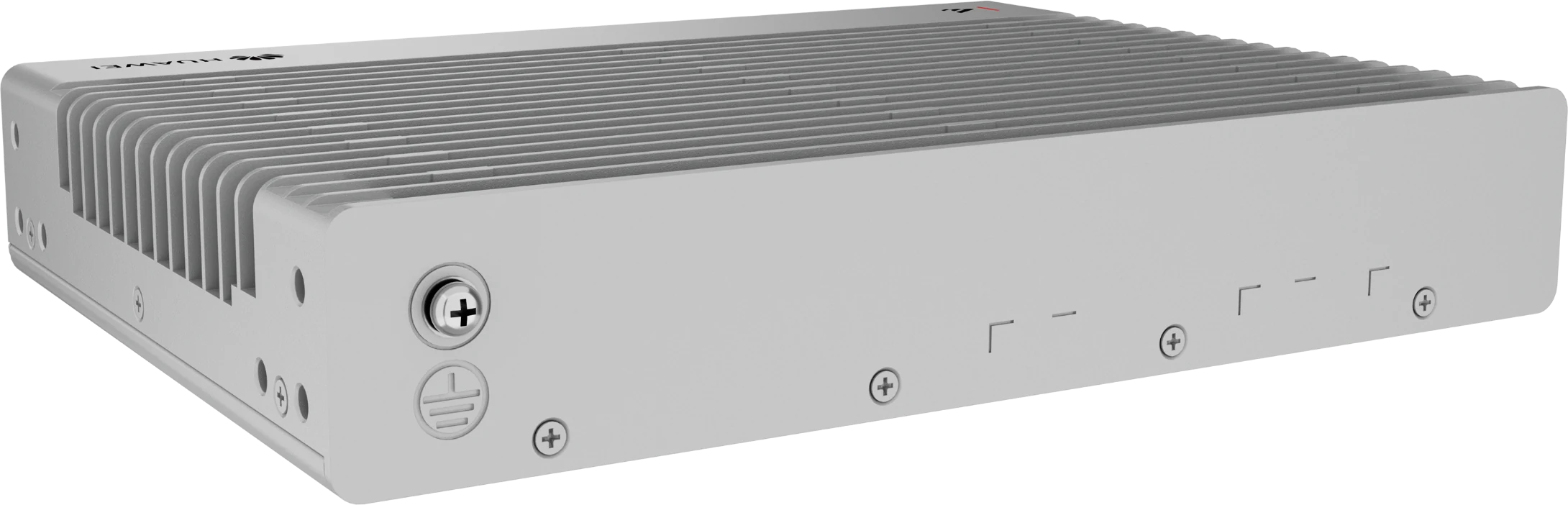

Heat dissipation mode: Natural heat dissipation

PoE: Supported

Maximum PoE power consumption: 125 W

PoE+ power interfaces: 12

PoE++ power interfaces: 4

Full load PoE power consumption 15.4W (802.3af): 8

Full load PoE power consumption 30W (802.3at): 4

Full load PoE++ power consumption 60W (802.3bt): 2

Static power consumption: 14.6 W

Typical power consumption: 21.4 W

Maximum power consumption: Without PoE: 20.8 W (device only) / 25.9 W (device + adapter); Full PoE load: 160.2 W (PoE: 125 W)

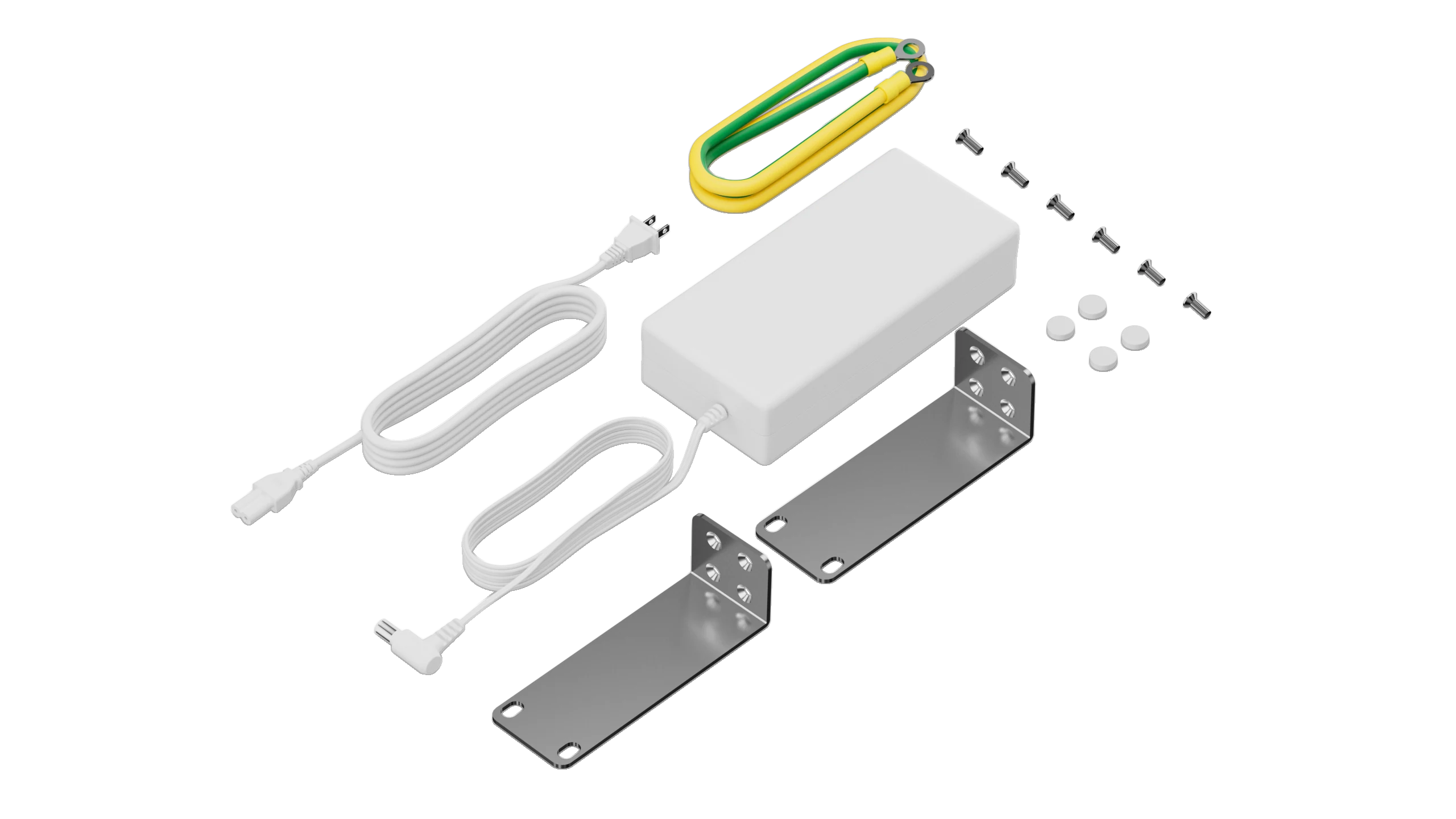

Power supply mode: Power adapter

Rated input voltage: Power adapter input: 170 V AC to 240 V AC; 50/60 Hz; Power adapter output: 54 V DC

Input voltage range: Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz

Power supply surge protection: ±4 kV differential mode and ±4 kV common mode

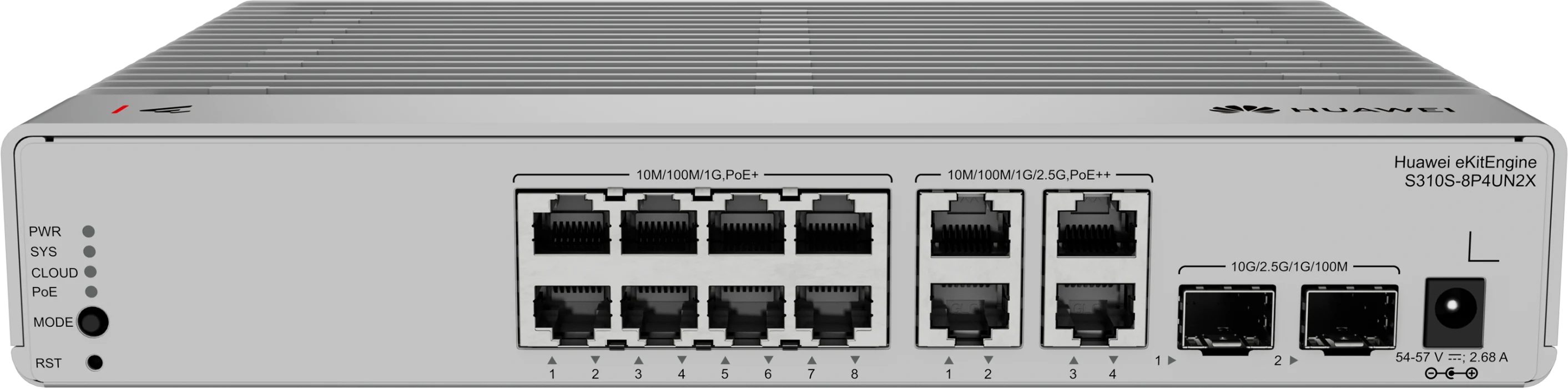

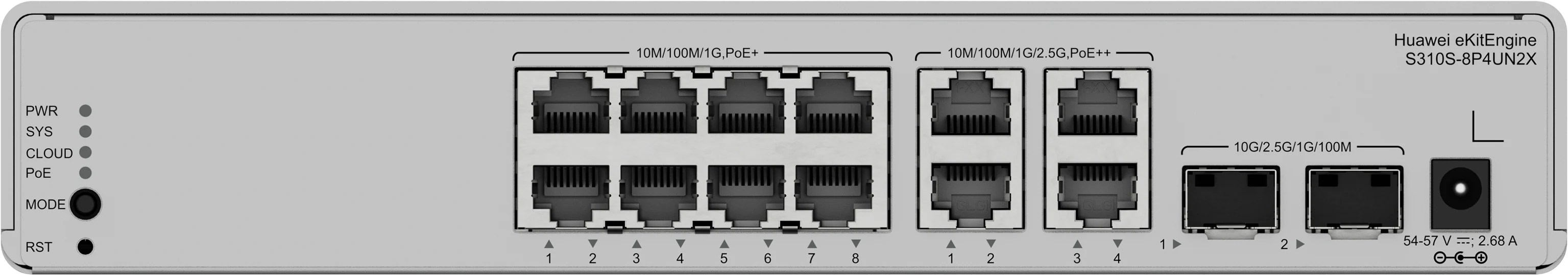

GE RJ45: 8 (PoE+) (1G/100M/10M)

2.5GE RJ45: 4 (PoE++) (2.5G/1G/100M/10M)

10G SFP+: 2 (10G/2.5G/1G/100M)

Certification: EMC certification, Safety certification, Manufacturing certification
