S210-4P8UN2X

Model: S210-4P8UN2X

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D): 94.0 mm x 310.0 mm x 350.0 mm (3.70 in. x 12.20 in. x 13.78 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting, Network Box

Weight without packaging: 2.02 kg (4.45 lb)

Weight with packaging: 2.52 kg (5.56 lb)

Static power consumption: 14.9 W

Typical power consumption: 24.6 W

Typical heat dissipation: 83.9 BTU/hour

Maximum power consumption: Without PoE: 24.5 W (device only) / 29.9 W (device + adapter); Full PoE load: 164.7 W (PoE: 125 W)

Maximum heat dissipation: Without PoE: 83.6 BTU/hour (device only) / 102.1 BTU/hour (device + adapter); Full PoE load: 561.9 BTU/hour (PoE: 426.5 BTU/hour)

Power supply mode: Power adapter

Rated input voltage: Power adapter input: 170 V AC to 240 V AC; 50/60 Hz; Power adapter output: 54 V DC

Input voltage range: Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz

Maximum input current: 2.78 A

Power consumption at 100% traffic: 24.9 W

Maximum PoE power consumption: 125 W

PoE+ power interfaces: 8

PoE++ power interfaces: 4

Full load PoE power consumption 30W (802.3at): 4

Full load PoE++ power consumption 60W (802.3bt): 2

Full load PoE power consumption 15.4W (802.3af): 8

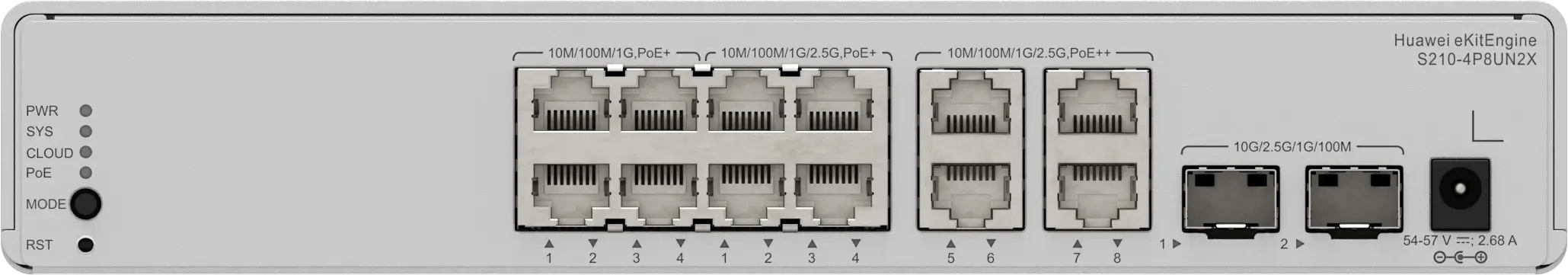

GE RJ45: 4 (PoE+) (1G/100M/10M)

2.5GE RJ45: 8 (4 PoE+; 4 PoE++) (2.5G/1G/100M/10M)

10G SFP+: 2 (10G/2.5G/1G/100M)
