S110-8T2ST

Model: S110-8T2ST

Maximum physical ports on the device: 10

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Storage temperature: -40 C to +70 C

Long-term operating altitude: 0-5000 m

Storage altitude: 0-5000 m

Above 1800 m the maximum operating temperature drops 1 C for every 220 m of altitude gain, up to 5000 m

Installation type: Desk mounting, wall mounting

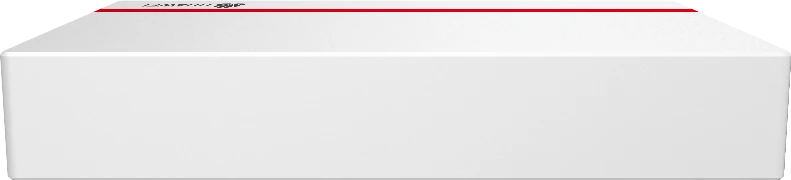

Chassis height: 0.8 U

Dimensions without packaging (H x W x D): basic 35 mm x 210.0 mm x 130.0 mm; maximum 36.5 mm x 210.0 mm x 131.7 mm (depth measured from the front-panel ports to the rear protruding parts)

Weight without packaging: 1.11 kg (2.45 lb)

Switching capacity: 20 Gbit/s

Packet forwarding rate: 14.88 Mpps

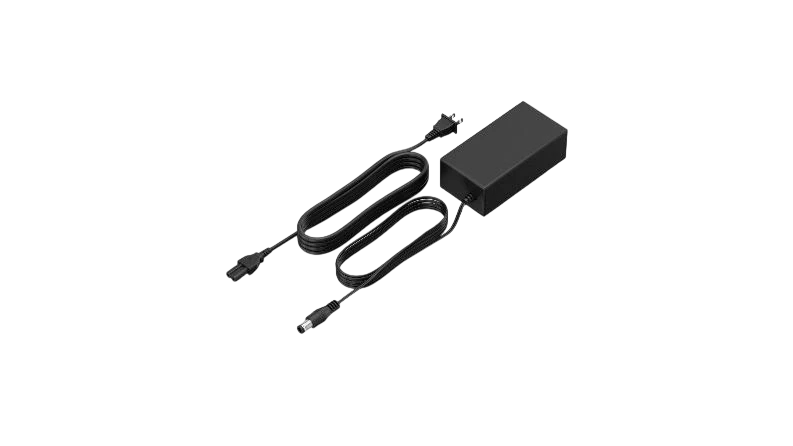

Power supply mode: Power adapter

Rated input voltage: adapter input 100-240 V AC; 50/60 Hz; adapter output 56 V DC

Input voltage range: 90-264 V AC; 47-63 Hz

Static power consumption: 4 W

Typical power consumption: 11 W

100% load power consumption: 11 W

Service port surge protection: common mode +/-4 kV

Power supply surge protection: differential mode +/-6 kV; common mode +/-6 kV

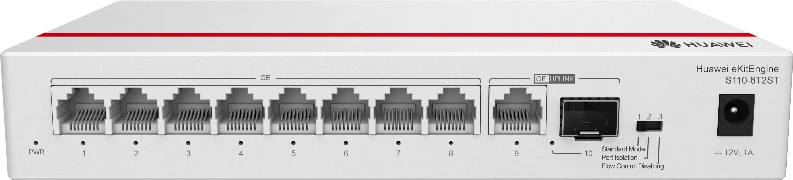

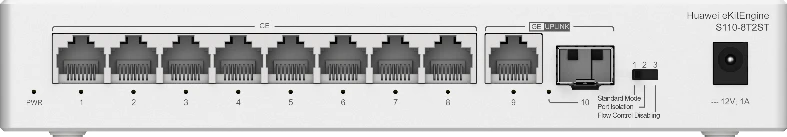

8 x 10/100/1000BASE-T ports; 1 x GE SFP port; 1 x 10/100/1000BASE-T port
