S110-8T2ST-V2

Model: S110-8T2ST-V2

Noise at normal temperature (acoustic power): noise-free (no fans) under 30 dB(A)

Noise at high temperature (acoustic power): noise-free (no fans) under 30 dB(A)

Noise at normal temperature (acoustic pressure): noise-free (no fans) under 20 dB(A)

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Operating temperature variation restriction: at 1800-5000 m the maximum operating temperature drops 1 C for every 220 m of added altitude

Storage temperature: -40 C to +70 C

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Long-term operating altitude: 0-5000 m

Storage altitude: 0-5000 m

Ingress protection: IP20

Chassis material: PC+ABS

Dimensions without packaging (H x W x D): basic 35 mm x 210.0 mm x 130.0 mm; maximum 36.5 mm x 210.0 mm x 131.7 mm

Dimensions with packaging (H x W x D): 90.0 mm x 285.0 mm x 180.0 mm

Chassis height: 0.8 U

Installation type: Desk mounting, wall mounting

Weight without packaging: 0.46 kg (1.01 lb)

Weight with packaging: 0.70 kg (1.54 lb)

Fan type: None

Heat dissipation mode: Natural heat dissipation

MAC address entry: 4K

Working mode: Standard mode; Port isolation; Flow control disabling

MTBF: 86.16 years

MTTR: 2 hours

Availability: greater than 0.99999

Static power consumption: 2.3 W

Typical power consumption: 7.6 W

Typical heat dissipation: 25.93 BTU/hour

Maximum power consumption: 8.2 W

Maximum heat dissipation: 27.98 BTU/hour

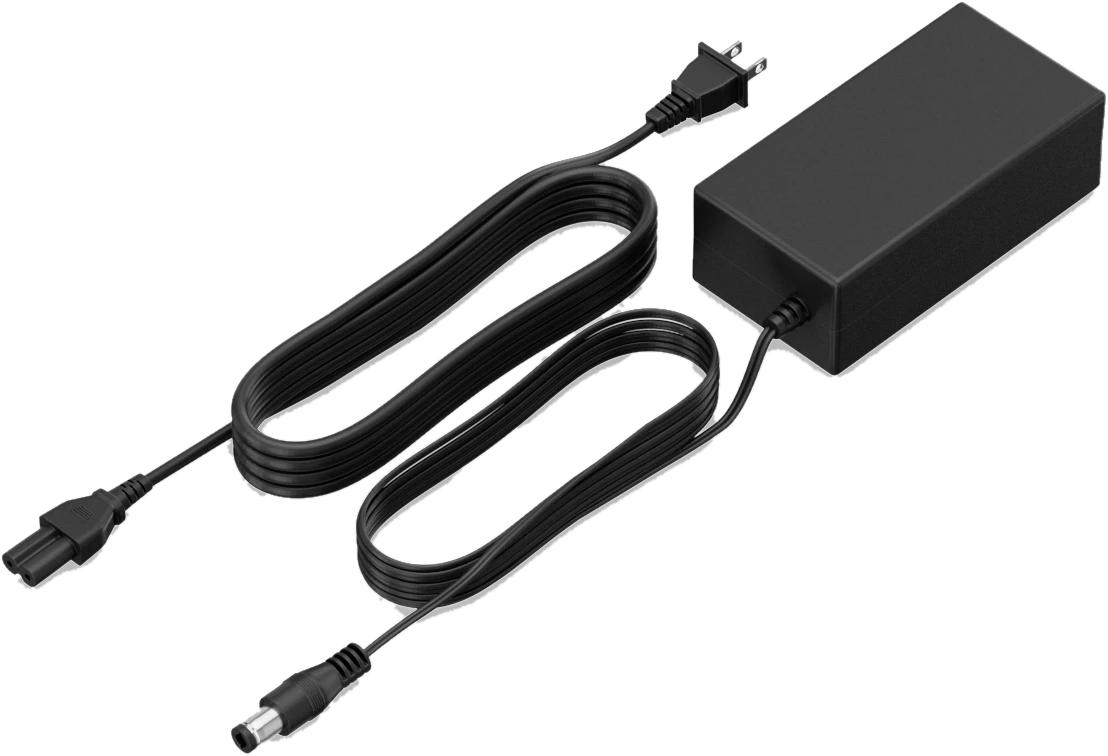

Power supply mode: Power adapter (1 x AC power adapter included)

Rated input voltage: adapter input 100-240 V AC; 50/60 Hz; adapter output 12 V DC

Input voltage range: 90-264 V AC; 47-63 Hz

Maximum input current: 1 A

Service port surge protection: +/-4 kV common mode

Power supply surge protection: +/-2 kV differential mode; +/-4 kV common mode

GE RJ45: 9 (1G/100M/10M)

GE SFP: 1 (1G/100M)

Maximum physical ports: 10

Maximum GE ports: 10

Maximum FE ports: 10

Certification: EMC, safety, and manufacturing certifications
