S220-8T4S

Model: S220-8T4S

Part Number: 98012551

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions: 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions (including rear protruding parts): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 1.41 kg (3.11 lb)

Weight with packaging: 2.22 kg (4.89 lb)

Number of fan modules: 1

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left (and front), air exhaust from right

Switching capacity: 24 Gbit/s

Packet forwarding rate: 18 Mpps

Static power consumption: 10.52 W

Typical power consumption: 15.95 W

Maximum power consumption: 21.52 W

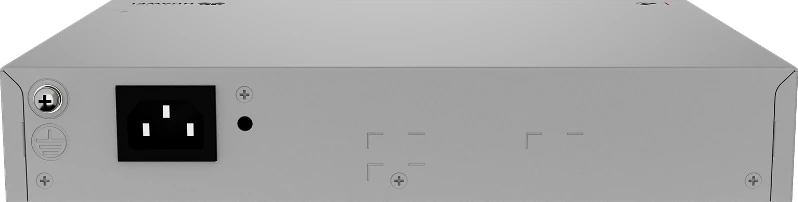

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

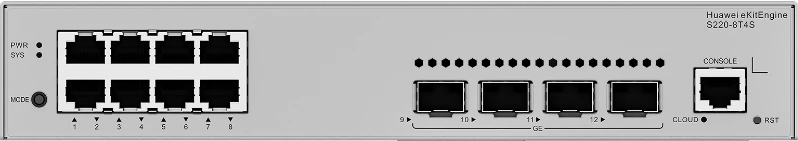

GE RJ45: 8 (1G/100M/10M)

GE SFP: 4 (1G)

Certification: EMC certification, Safety certification, Manufacturing certification
