S220S-8T2X

Model: S220S-8T2X

Long-term operating temperature: –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D): 113.0 mm x 310.0 mm x 240.0 mm (4.45 in. x 12.20 in. x 9.45 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 1.34 (2.95)

Weight with packaging: 2.07 kg (4.56 lb)

Heat dissipation mode: Natural heat dissipation

Switching capacity: 56 Gbit/s

Packet forwarding rate: 42 Mpps

Static power consumption: 5.18 W

Typical power consumption: 10.31 W

Maximum power consumption: 10.94 W

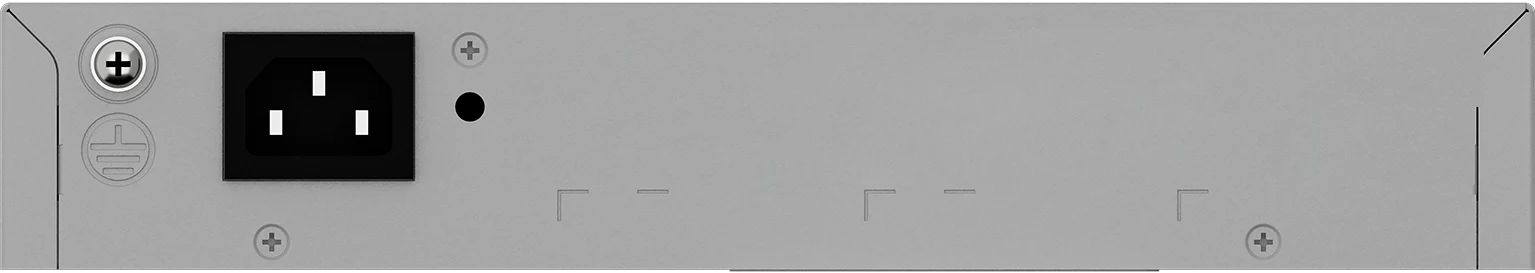

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

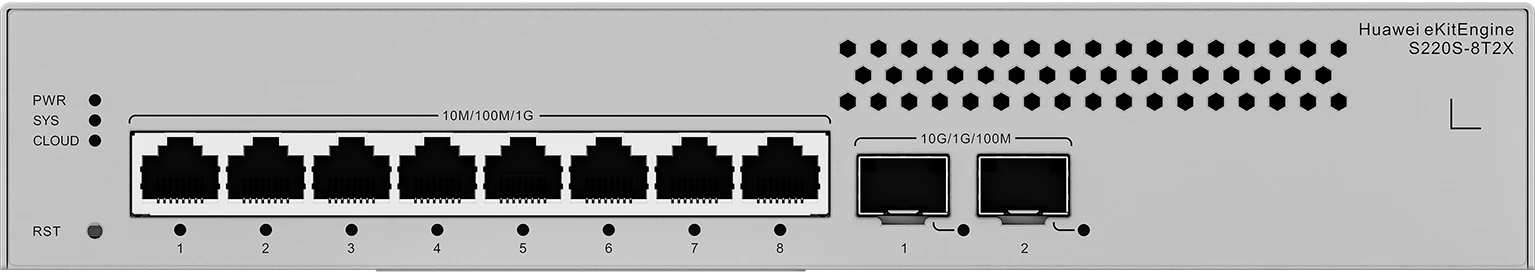

GE RJ45: 8 (1G/100M/10M)

10G SFP+: 2 (10G/1G/100M)

Certification: EMC certification, Safety certification, Manufacturing certification
