S310-24P4X-M

Model: S310-24P4X-M

Part Number: 98013235

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Storage altitude: 0-5000 m (0-16404 ft.)

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D): 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Installation type: Rack mounting, Desk mounting

Weight without packaging: 5.76 kg (12.7 lb)

Weight with packaging: 7.66 kg (16.89 lb)

Number of fan modules: 2

Types of fans: Built-in

Number of card slots: 0

PoE: Supported

Maximum PoE power consumption: Single-power module scenario:

Single 600 W AC power module: 532 W (220 V AC); 247 W (110 V AC)

Single 1000 W AC power module: 840 W (220 V AC); 774 W (110 V AC)

Single 1000 W DC power module: 840 W (56 V DC)

Dual-power module scenario:

600 W AC + 600 W AC: 840 W (220 V AC); 532 W (110 V AC)

600 W AC + 1000 W AC: 840 W (220 V AC)

600 W AC + 1000 W DC: 840 W (220 V AC/56 V DC)

1000 W AC + 1000 W AC: 840 W (220 V AC); 840 W (110 V AC)

1000 W DC + 1000 W DC: 840 W (56 V DC)

1000 W AC + 1000 W DC: 840 W (220 V AC/56 V DC); 840 W (110 V AC/56 V DC)

Three-power module scenario:

600 W AC + 600 W AC + 600 W AC: 840 W (220 V AC); 817 W (110 V AC)

600 W AC + 600 W AC + 1000 W AC: 840 W (220 V AC)

Static power consumption: 28.65 W

Typical power consumption: 39.43 W

Typical heat dissipation: 134.54 BTU/hour

Maximum power consumption: Without PoE:

45.80 W (with two 600 W AC power modules)

55.70 W (with two 1000 W AC power modules)

64.68 W (with two 1000 W DC power modules)

Full PoE load: 1023.22 W (PoE: 840 W, with three 1000 W AC power modules)

Maximum heat dissipation: Without PoE:

156.27 BTU/hour (with two 600 W AC power modules)

190.05 BTU/hour (with two 1000 W AC power modules)

220.69 BTU/hour (with two 1000 W DC power modules)

Full PoE load: 3491.33 BTU/hour (PoE: 2866.16 BTU/hour, with three 1000 W AC power modules)

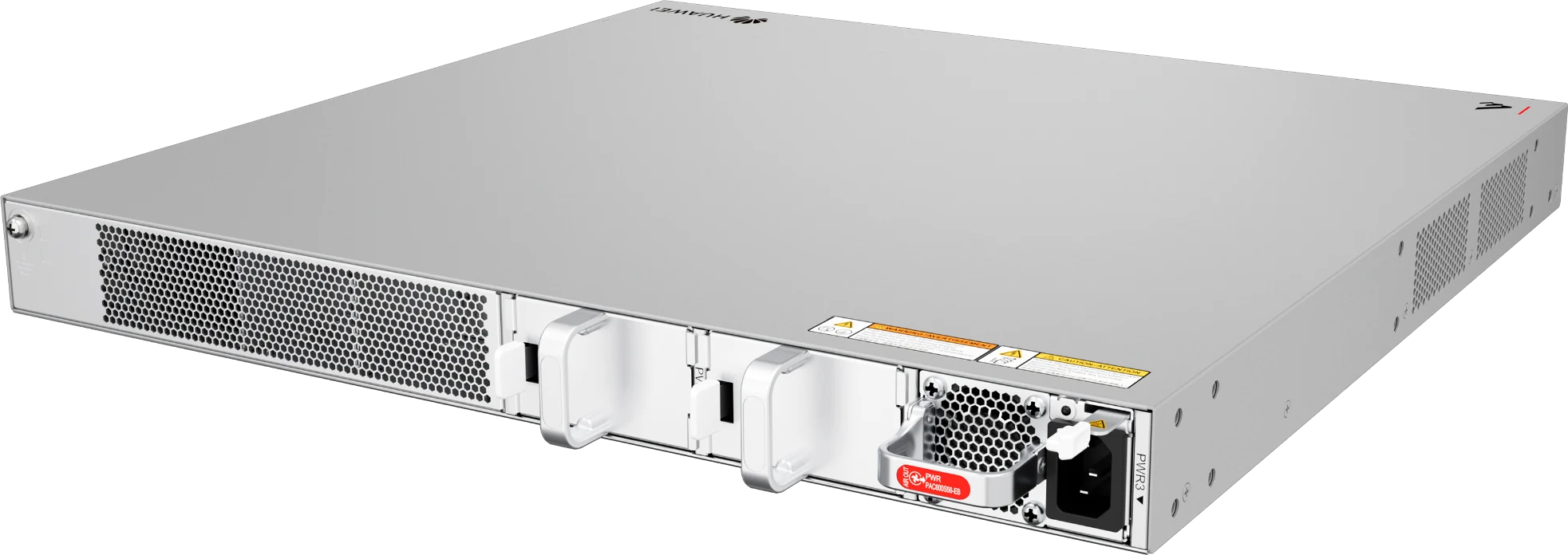

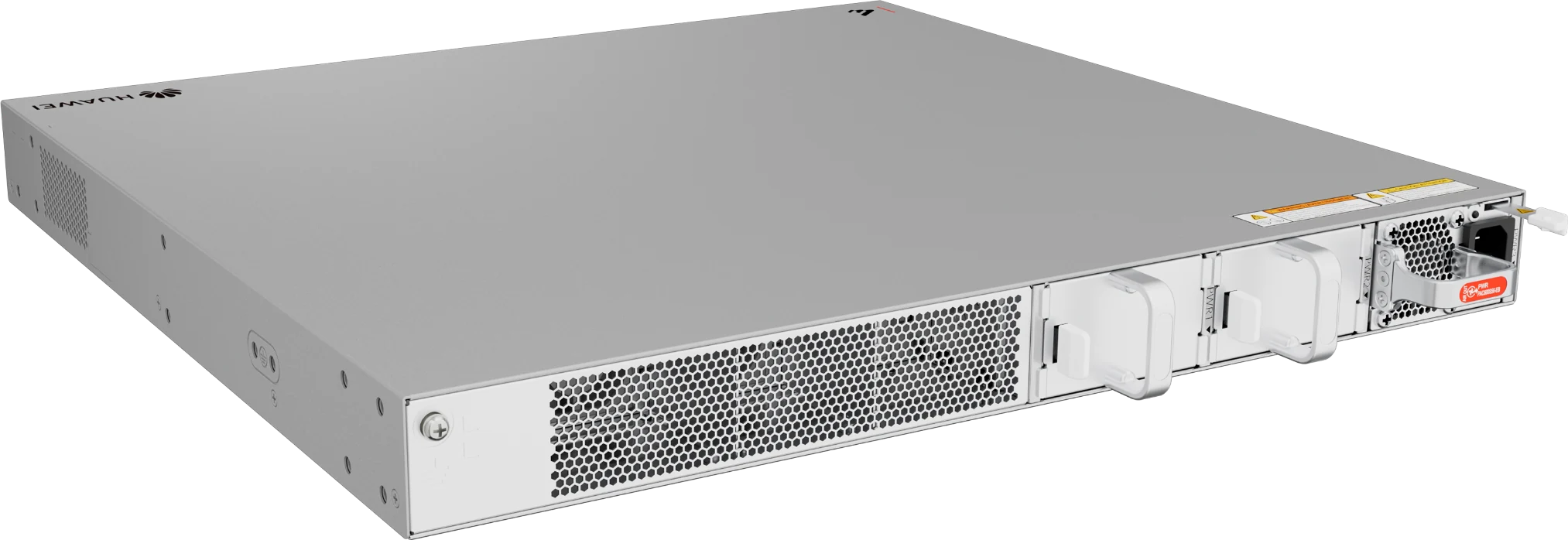

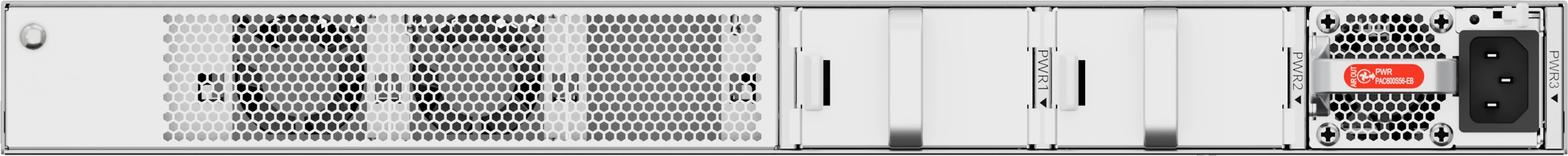

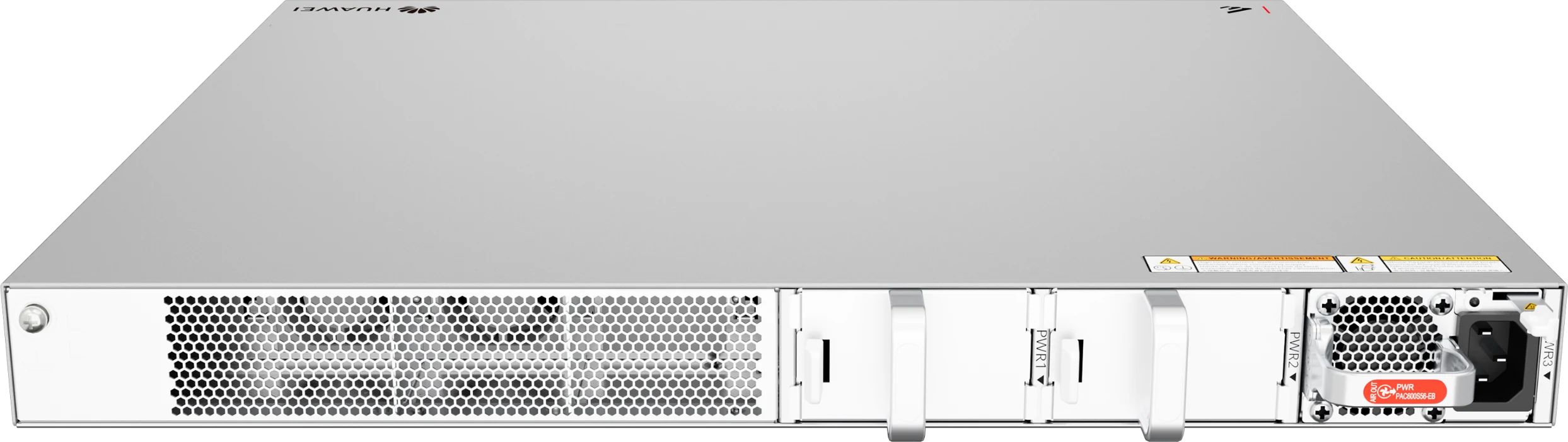

Number of power slots: 3

Redundant power supply: 1+1+1 (Pluggable AC and DC power modules can be used together on the same device.)

Rated input voltage: AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

High-voltage DC input: 240 V DC (PAC600S56-EB; PAC1000S56-EB (02314APU))

High-voltage DC input: 125 V DC to 240 V DC (PAC1000S56-EB (02314APU-001))

DC input: –48 V DC to –60 V DC

Input voltage range: AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz

High-voltage DC input: 190 V DC to 290 V DC (PAC600S56-EB; PAC1000S56-EB (02314APU))

High-voltage DC input: 100 V DC to 290 V DC (PAC1000S56-EB (02314APU-001))

DC input: –38.4 V DC to –72 V DC

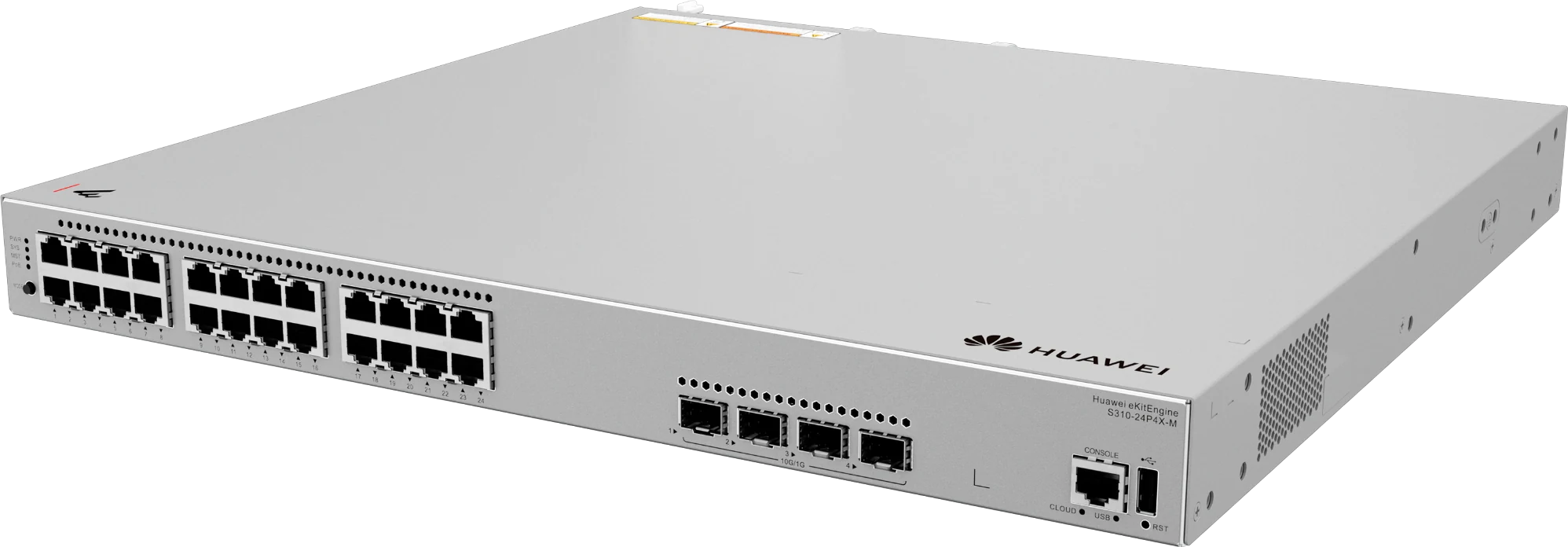

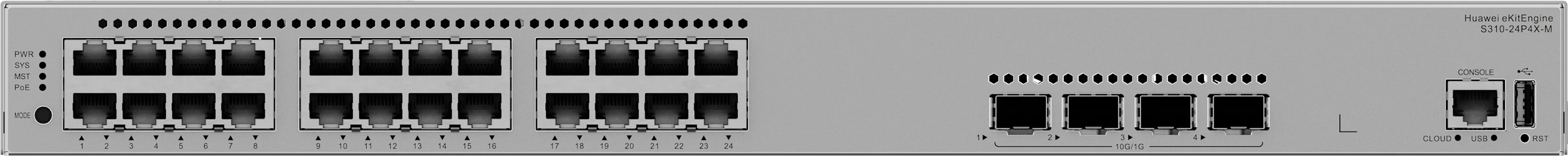

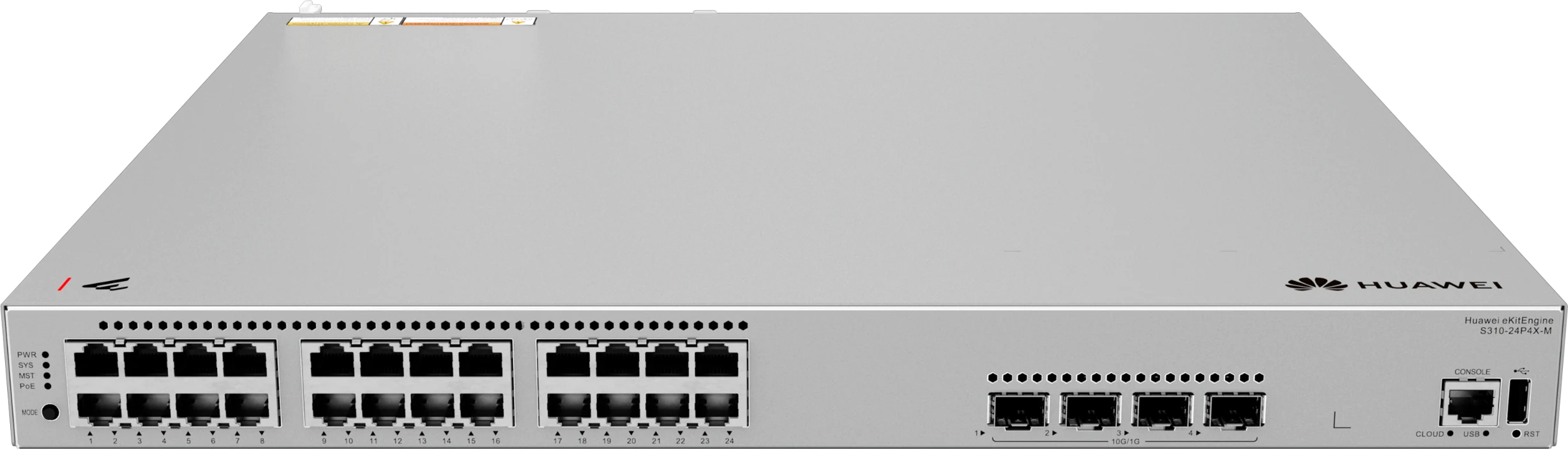

GE RJ45: 24(PoE+) (1G/100M/10M)

10G SFP+: 4 (10G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
