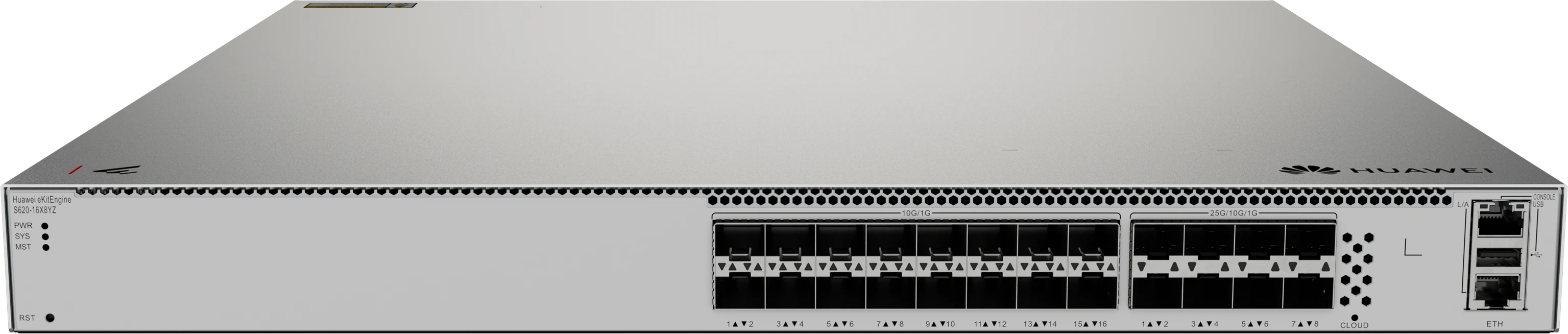

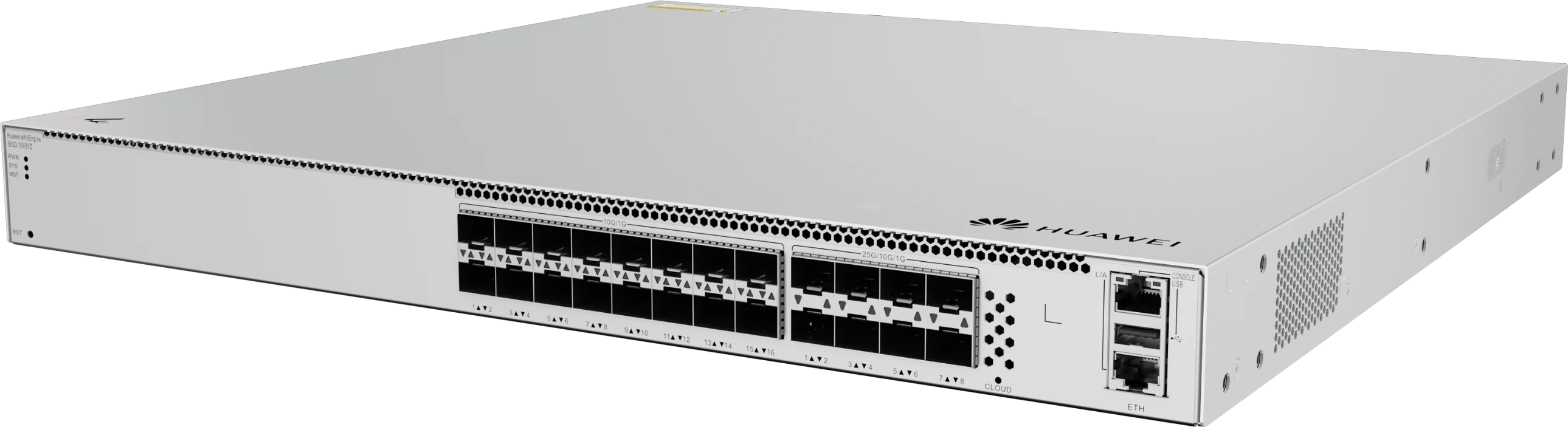

S620-16X8YZ

Model: S620-16X8YZ

Part Number: 98012580

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)

Dimensions with packaging (H x W x D): 145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)

Installation type: Rack mounting, Desk mounting

Weight without packaging: 6.0 kg (13.23 lb)

Weight with packaging: 8.49 kg

Number of fan modules: 2

Types of fans: Pluggable

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from front and right and air exhaust from rear

Switching capacity: 1120 Gbit/s

Packet forwarding rate: 833 Mpps

iStack: Up to 9 switches of the same series in a stack

Number of card slots: 1

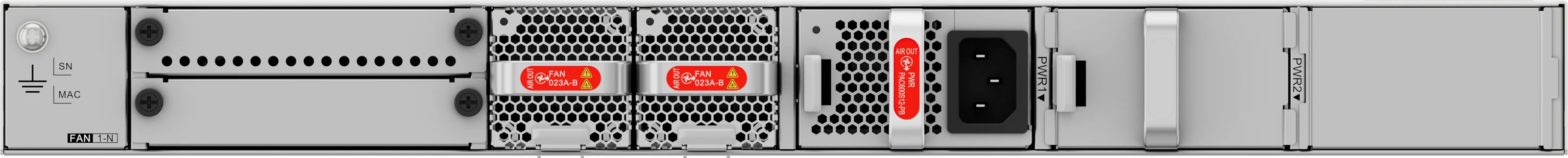

Number of power slots: 2

Static power consumption: 50 W

Typical power consumption: 30% traffic under the ATIS standard and dual power modules:

- 79 W (with two 180 W AC power modules)

- 73 W (with two 240 W DC power modules)

Maximum power consumption: 100% traffic under the ATIS standard and dual power modules:

- 85 W (with two 180 W AC power modules)

- 78 W (with two 240 W DC power modules)

Redundant power supply: 1+1

Pluggable AC and DC power modules can be used together on the same device.

Note: Power modules with fans and power modules without fans cannot be installed on the same device.

Power supply mode: Pluggable power supply

Input voltage range: AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz

High-voltage DC input: 190 V DC to 290 V DC

DC input: -38.4 V DC to -72 V DC

Power supply surge protection: Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

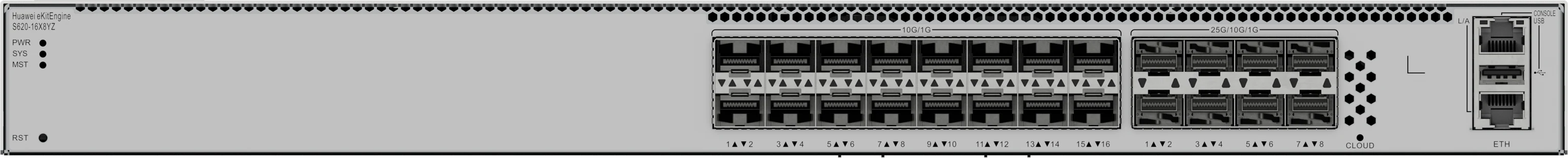

10G SFP+: 16 (10G/2.5G/1G)

25G SFP28: 8 (25G/10G/2.5G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
