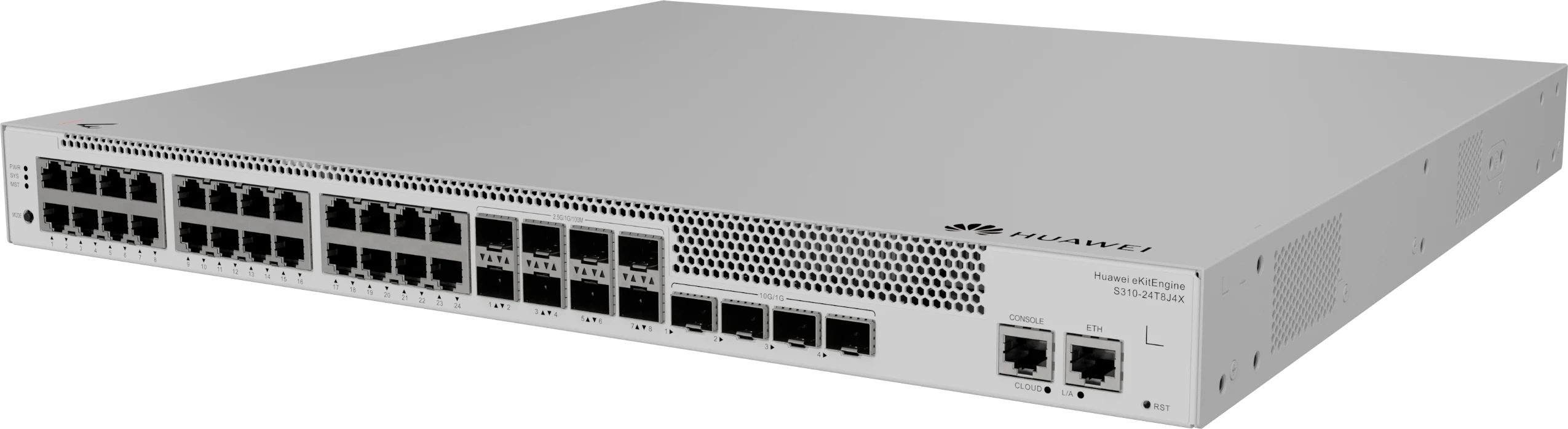

S310-24T8J4X

Model: S310-24T8J4X

Part Number: 98012570

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D): 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Installation type: Rack mounting, Desk mounting

Weight without packaging: 4.13 kg (9.1 lb)

Weight with packaging: 6.57 kg (14.48 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left and front, air exhaustion from right

Switching capacity: 168 Gbit/s

Packet forwarding rate: 125 Mpps

iStack: Up to 4 switches of the same series in a stack

Static power consumption: 22.26 W

Typical power consumption: 39.18 W

Maximum power consumption: 49.52 W

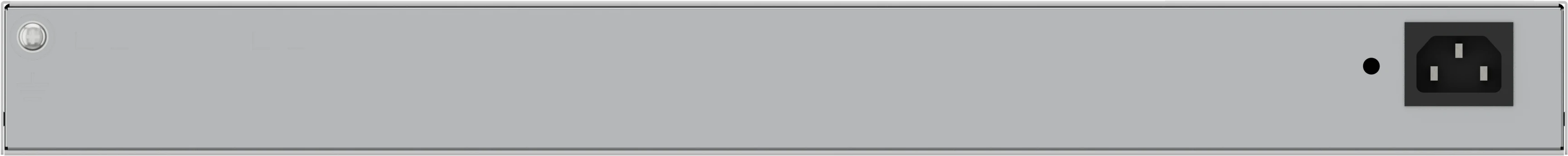

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 264 V AC; 47–63 Hz

High-voltage DC input: 88 V DC to 300 V DC

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

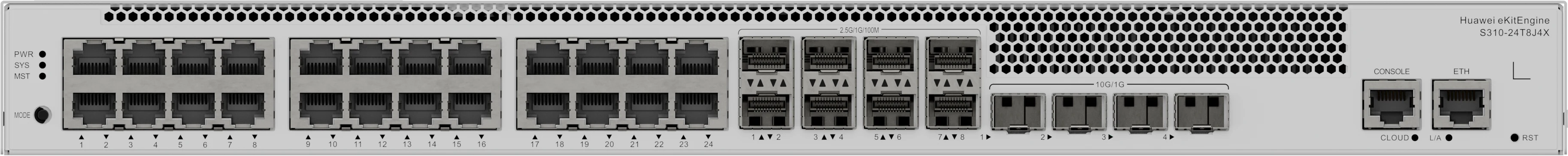

GE RJ45: 24 (1G/100M/10M)

2.5G SFP: 8 (2.5G/1G/100M)

10G SFP+: 4 (10G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
