S110-8P2T-BU-V2

Model: S110-8P2T-BU-V2

Noise at normal temperature (acoustic power): noise-free (no fans) under 30 dB(A)

Noise at high temperature (acoustic power): noise-free (no fans) under 30 dB(A)

Noise at normal temperature (acoustic pressure): noise-free (no fans) under 20 dB(A)

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Operating temperature variation restriction: at 1800-5000 m the maximum operating temperature drops 1 C for every 220 m of altitude gain

Storage temperature: -40 C to +70 C

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Long-term operating altitude: 0-5000 m

Storage altitude: 0-5000 m

Ingress protection: IP20

Chassis material: Metal

Dimensions without packaging (H x W x D): basic 230.0 mm x 49.5 mm x 29.0 mm; maximum 230.0 mm x 49.5 mm x 29.5 mm (depth measured to rear protrusions)

Dimensions with packaging (H x W x D): 90.0 mm x 280.0 mm x 200.0 mm

Chassis height: 5.17 U

Installation type: Network box

Weight without packaging: 0.82 kg

Weight with packaging: 1.06 kg

Fan types: None

Heat dissipation mode: Natural heat dissipation

MAC address entry: 4K

MTBF: 95.66 years

MTTR: 2 hours

Availability: greater than 0.99999

Static power consumption: 2.6 W

Typical power consumption: 6.8 W

Typical heat dissipation: 23.2 BTU/hour

Maximum power consumption: 6.9 W without PoE; 140 W at full PoE load (PoE: 124 W)

Maximum heat dissipation: 23.54 BTU/hour without PoE; 477.69 BTU/hour at full PoE load

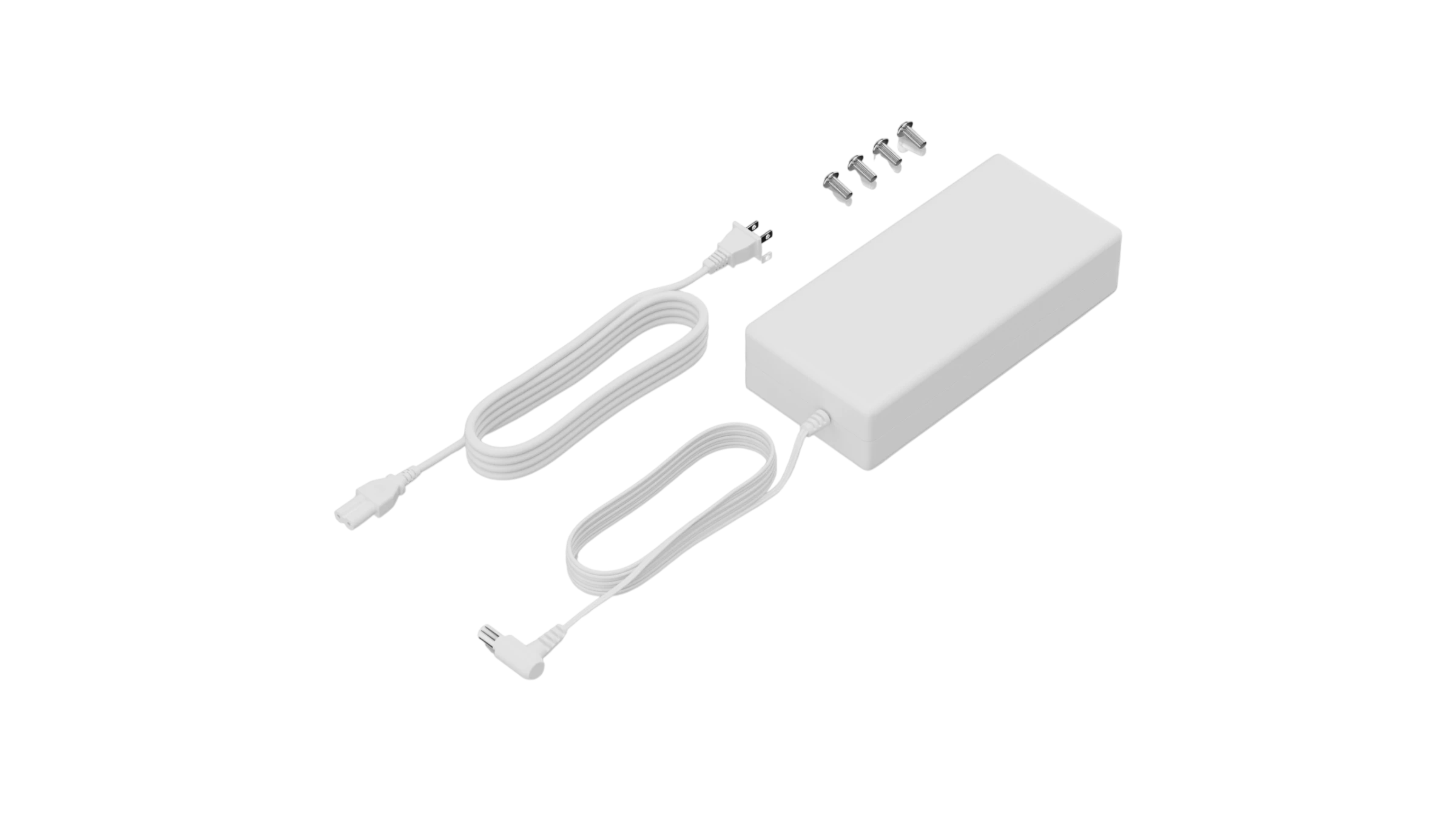

Power supply mode: Power adapter (1 x AC power adapter included)

Rated input voltage: adapter input 170-240 V AC; 50/60 Hz; adapter output 54 V DC

Input voltage range: adapter input 170-264 V AC; 47-63 Hz

Maximum input current: 2.78 A

Service port surge protection: +/-4 kV common mode

Power supply surge protection: +/-4 kV differential mode; +/-4 kV common mode

PoE: Supported

Maximum PoE power consumption: 124 W

PoE+ power interfaces: 8

Full-load PoE 30 W (802.3at): 4 ports

Full-load PoE 15.4 W (802.3af): 8 ports

GE RJ45: 10 (8 PoE+) (1G/100M/10M)

Maximum physical ports on device: 10

Maximum GE ports: 10

Maximum FE ports: 10

Certification: EMC, safety, and manufacturing certifications
