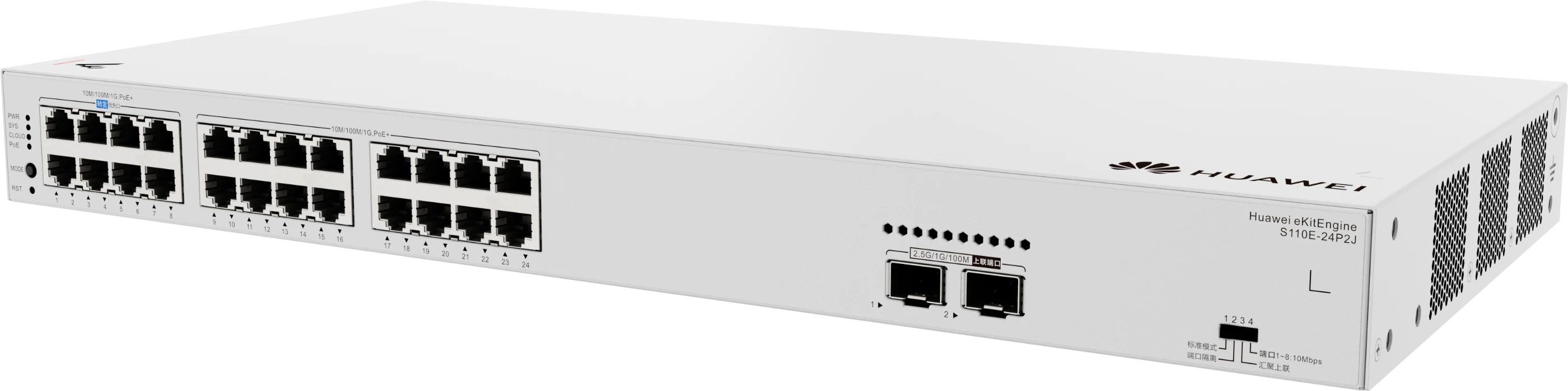

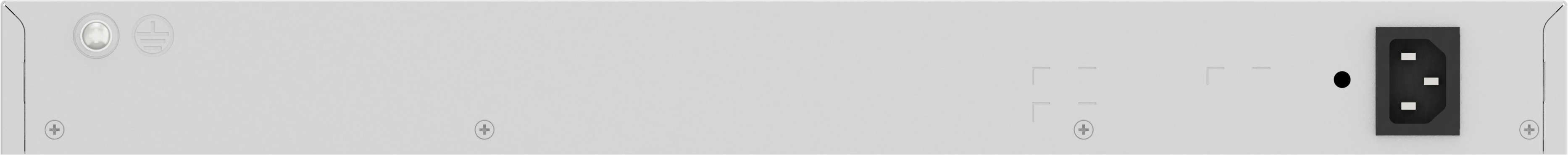

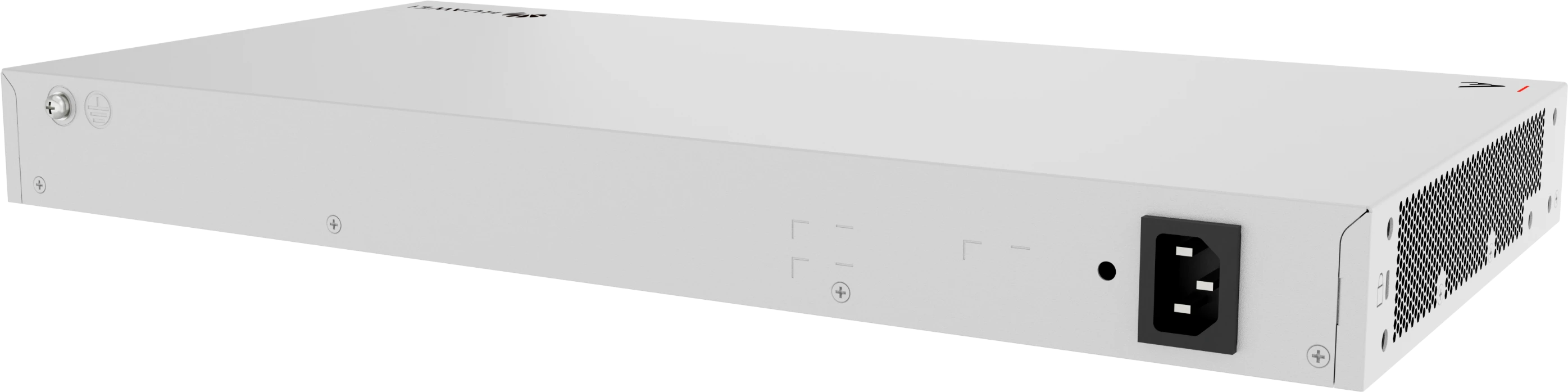

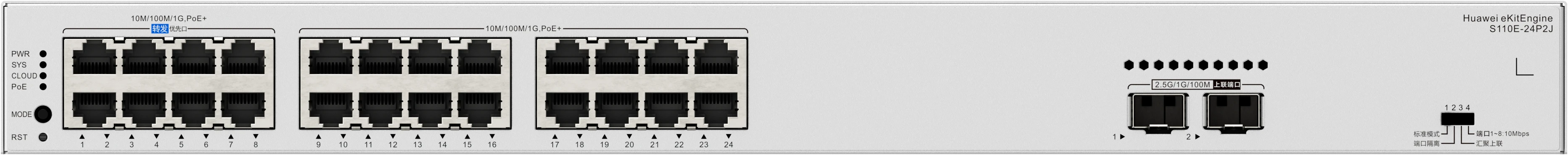

S110E-24LP2J

Model: S110E-24LP2J

Dimensions without packaging (H x W x D): basic 43.6 mm x 442 mm x 220 mm; maximum 43.6 mm x 442 mm x 227 mm (depth measured to rear protruding parts)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm

Installation type: Rack mounting, desk mounting, wall mounting

Weight without packaging: 3.23 kg (7.12 lb)

Weight with packaging: 3.86 kg (8.51 lb)

Fan type: Built-in

Heat dissipation mode: Air cooling

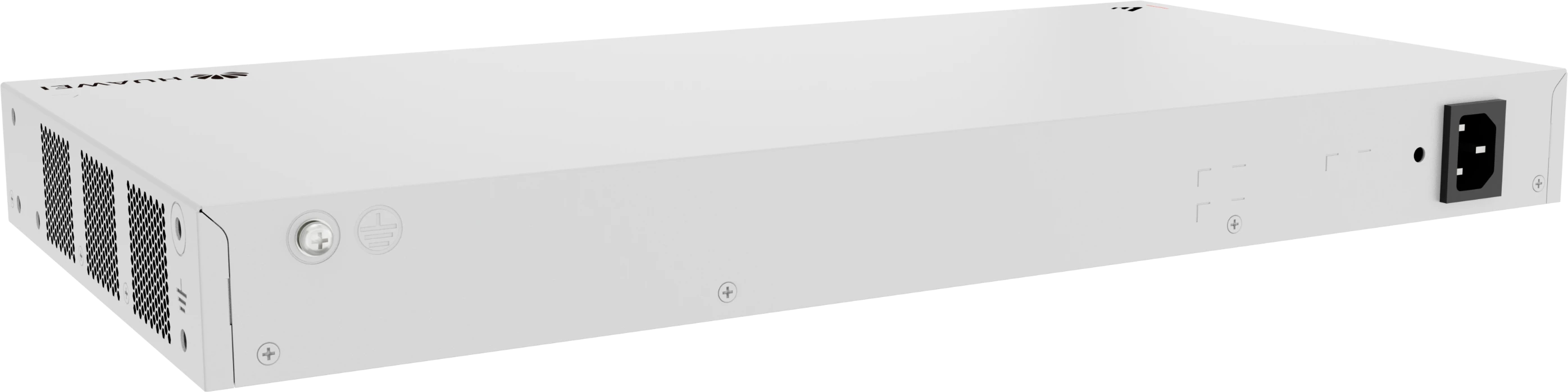

Airflow direction: intake from the left and front; exhaust to the right

Static power consumption: 15.74 W

Typical power consumption: 30.32 W

Typical heat dissipation: 103.44 BTU/hour

Maximum power consumption: 32.42 W without PoE; 313.58 W at full PoE load (PoE: 247 W)

Maximum heat dissipation: 110.63 BTU/hour without PoE; 1069.97 BTU/hour at full PoE load

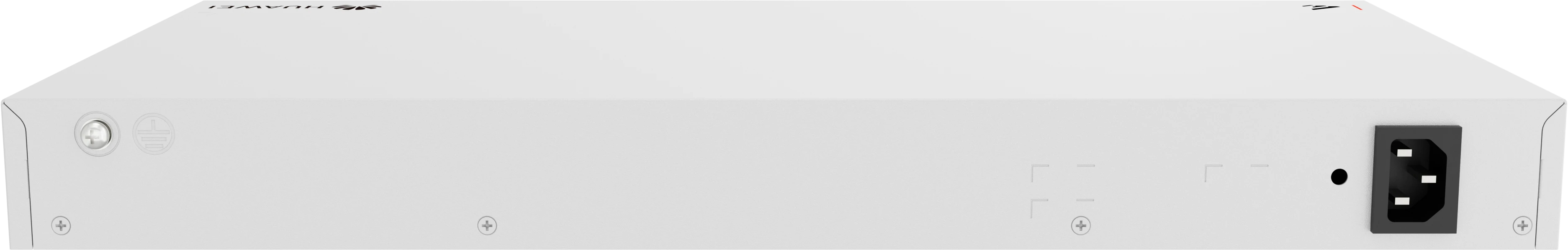

Power supply mode: AC built-in

PoE: Supported

Power consumption at 100% traffic: 30.92 W

Maximum PoE power consumption: 247 W

PoE+ power interfaces: 24

Full-load PoE 30 W (802.3at): 8 interfaces

Full-load PoE 15.4 W (802.3af): 16 interfaces

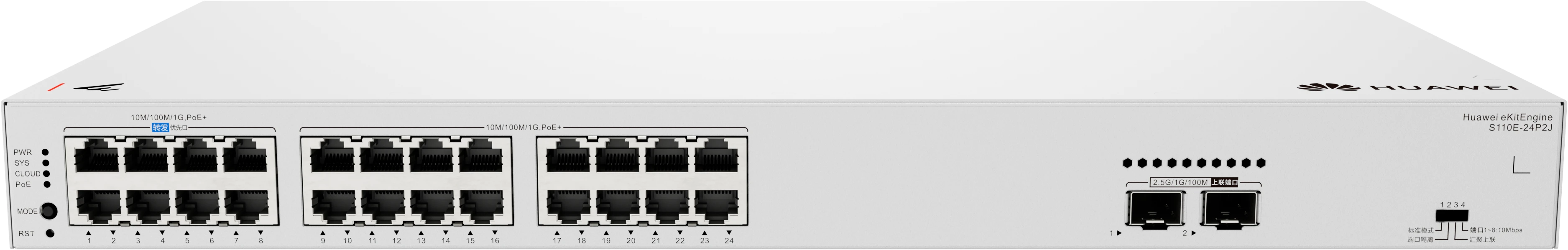

GE RJ45: 24 (PoE+) (1G/100M/10M)

2.5G SFP: 2 (2.5G/1G/100M)
