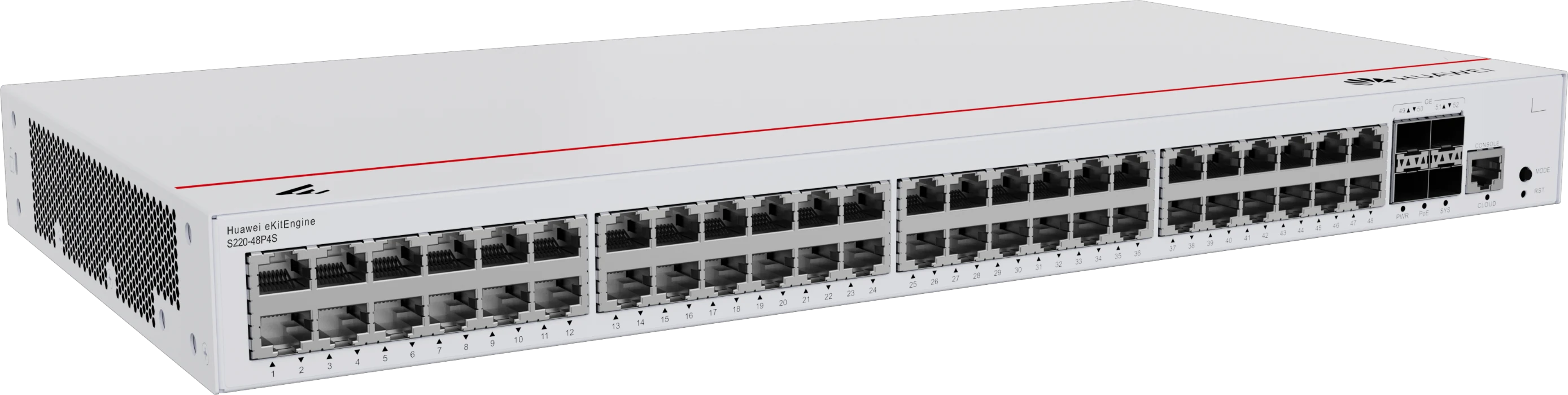

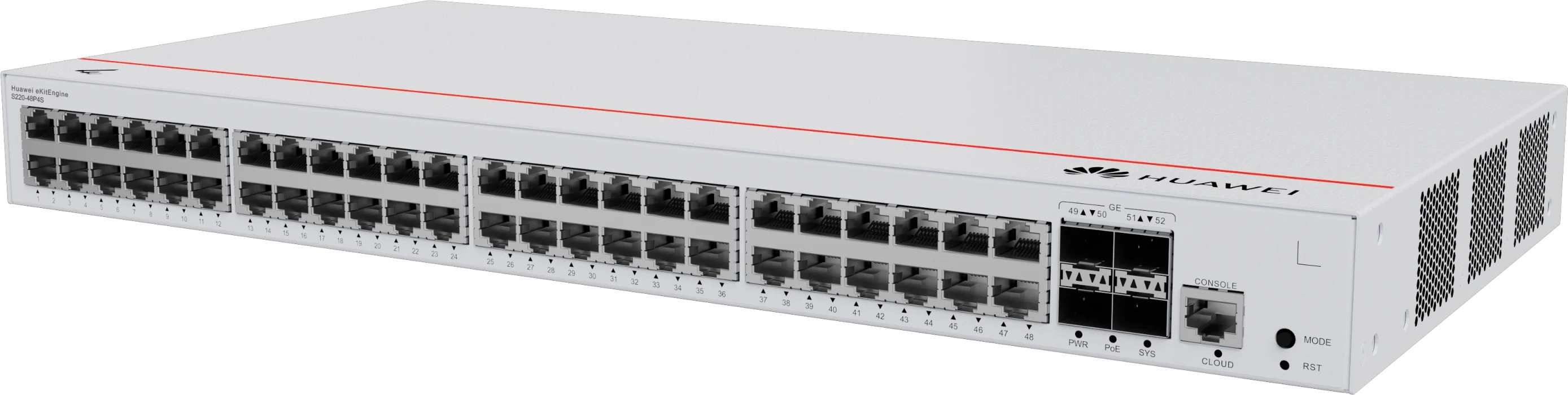

S220-48P4S

Model: S220-48P4S

Part Number: 98012379

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions: 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.); Maximum dimensions (including rear protruding parts): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 3.24 kg (7.14 lb)

Weight with packaging: 4.29 kg (9.46 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left (and front), air exhaust from right

Switching capacity: 104 Gbit/s

Packet forwarding rate: 77 Mpps

PoE: Supported

Maximum PoE power consumption: 380 W

Static power consumption: 34.04 W

Typical power consumption: 48.64 W

Maximum power consumption: Without PoE: 63.70 W; Full PoE load: 462.80 W (PoE: 380 W)

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

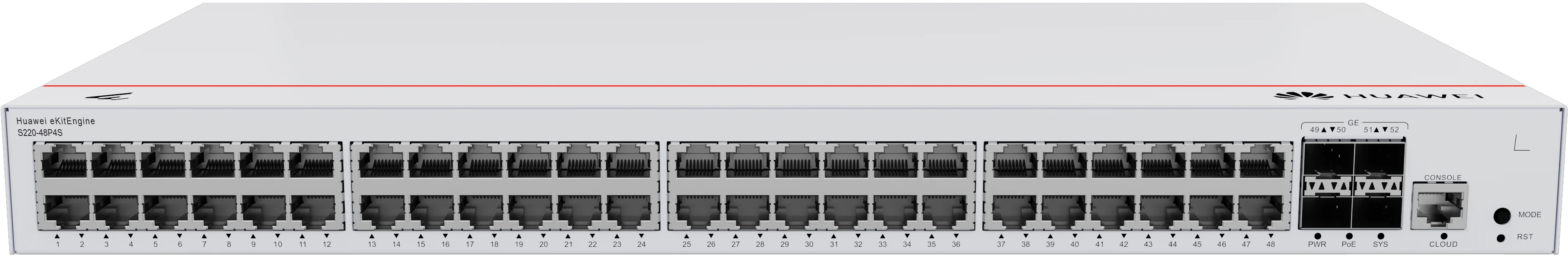

GE RJ45: 48 (PoE+) (1G/100M/10M)

GE SFP: 4 (1G)

Certification: EMC certification, Safety certification, Manufacturing certification
