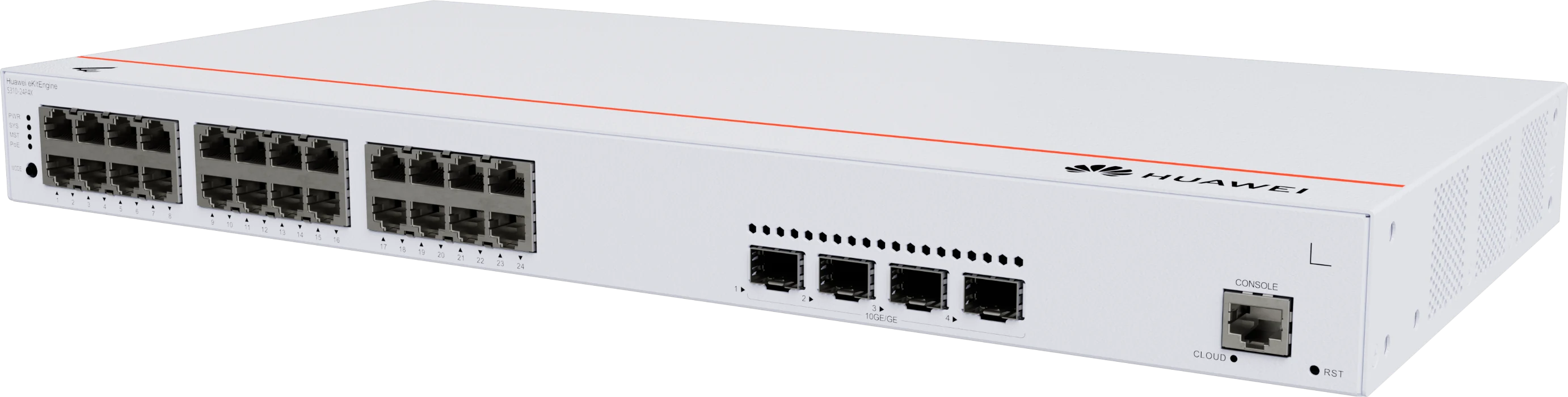

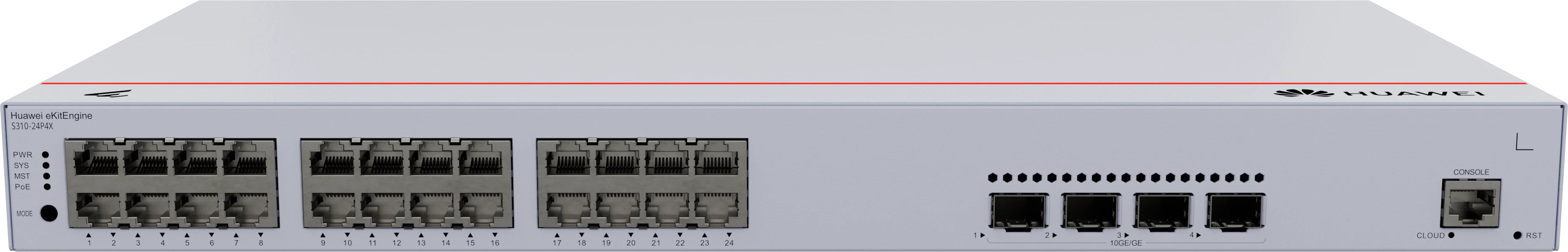

S310-24P4X

Model: S310-24P4X

Part Number: 98012382

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 2.92 kg (6.44 lb)

Weight with packaging: 3.79 kg (8.36 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left and front, air exhaustion from right

Switching capacity: 128 Gbit/s

Packet forwarding rate: 96 Mpps

iStack: Up to 4 switches of the same series in a stack

PoE: Supported

Maximum PoE power consumption: 400 W

Static power consumption: 27.07 W

Typical power consumption: 37.12 W

Maximum power consumption: Without PoE: 44.35 W

Full PoE load: 485.91 W (PoE: 400 W)

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz

High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

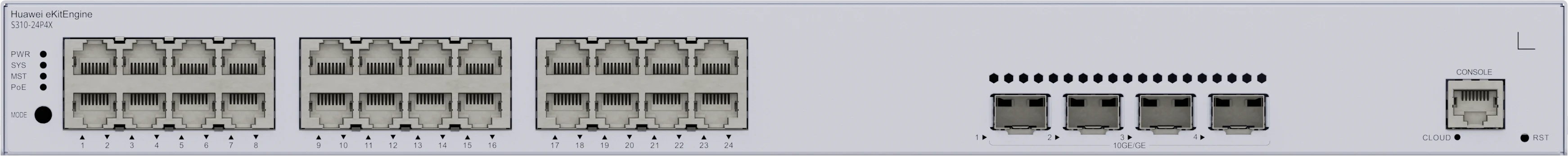

GE RJ45: 24 (PoE+) (1G/100M/10M)

10G SFP+: 4 (10G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
