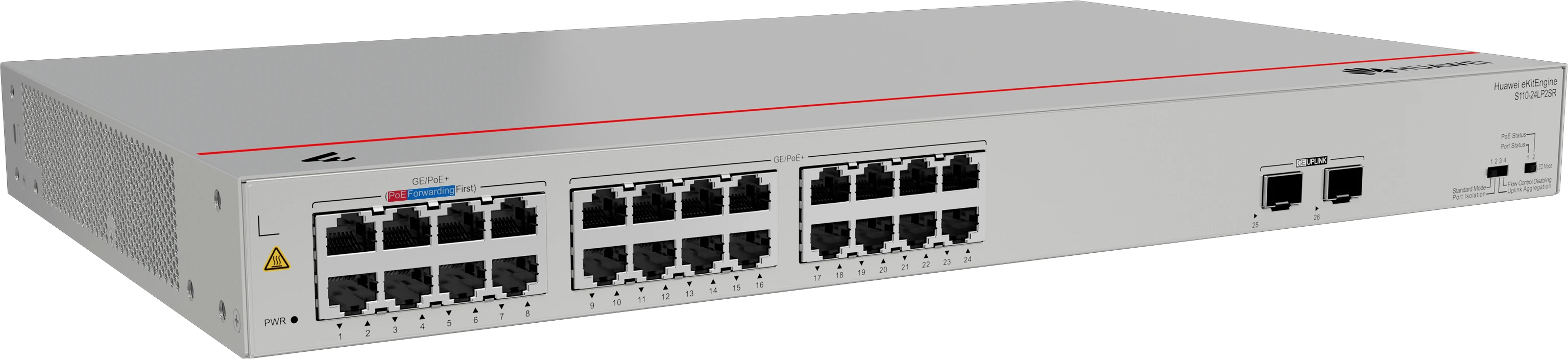

S110-24LP2SR

Model: S110-24LP2SR

GE RJ45: 24 (PoE+) (1G/100M/10M)

PoE: Supported

Maximum PoE power consumption: 124 W

Long-term operating temperature: 0 C to 40 C at 0-1800 m altitude

Long-term operating relative humidity: 5% to 95% RH, non-condensing

Chassis material: Metal

Installation type: Rack mounting, desk mounting, wall mounting

Dimensions without packaging (H x W x D): basic 43.6 mm x 442.0 mm x 260.0 mm; maximum 43.6 mm x 442.0 mm x 267.0 mm (depth measured from the front-panel ports to the rear protruding parts)

Dimensions with packaging (H x W x D): 90.0 mm x 555.0 mm x 400.0 mm

Weight without packaging: 3.2 kg

Weight with packaging: 3.7 kg

Switching capacity: 52 Gbit/s

Packet forwarding rate: 38.69 Mpps

Heat dissipation: natural convection

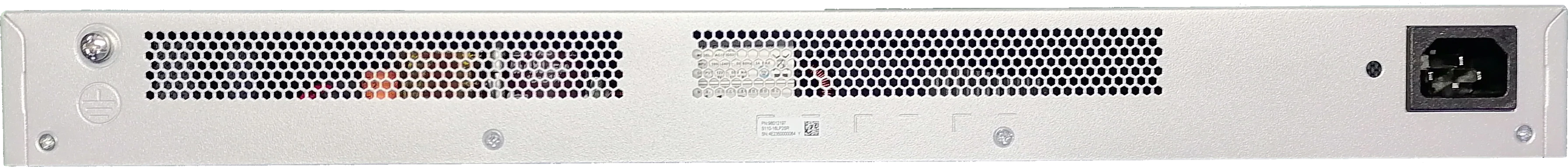

Power supply mode: AC built-in

Input voltage range: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Static power consumption: 13 W

Typical power consumption: 24 W

Maximum power consumption: 24 W without PoE; 165 W at full PoE load (PoE: 124 W)

Surge protection: +/-6 kV differential mode and +/-6 kV common mode

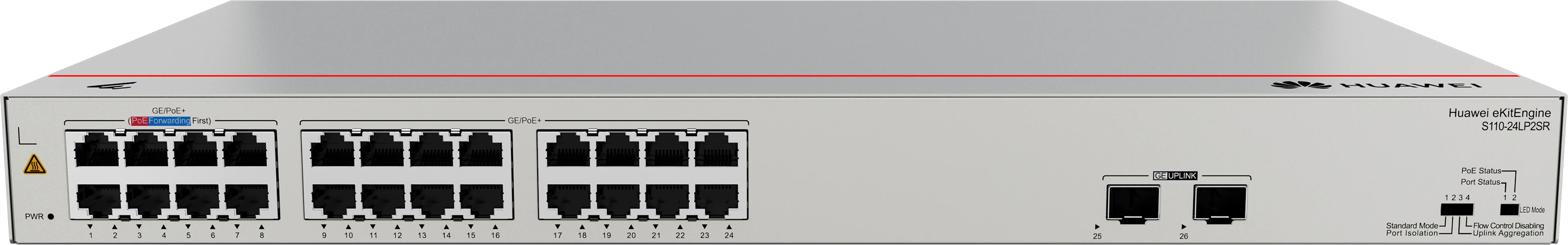

24 x 10/100/1000BASE-T ports; 2 x GE SFP ports

Certifications: EMC, safety, and manufacturing certifications
