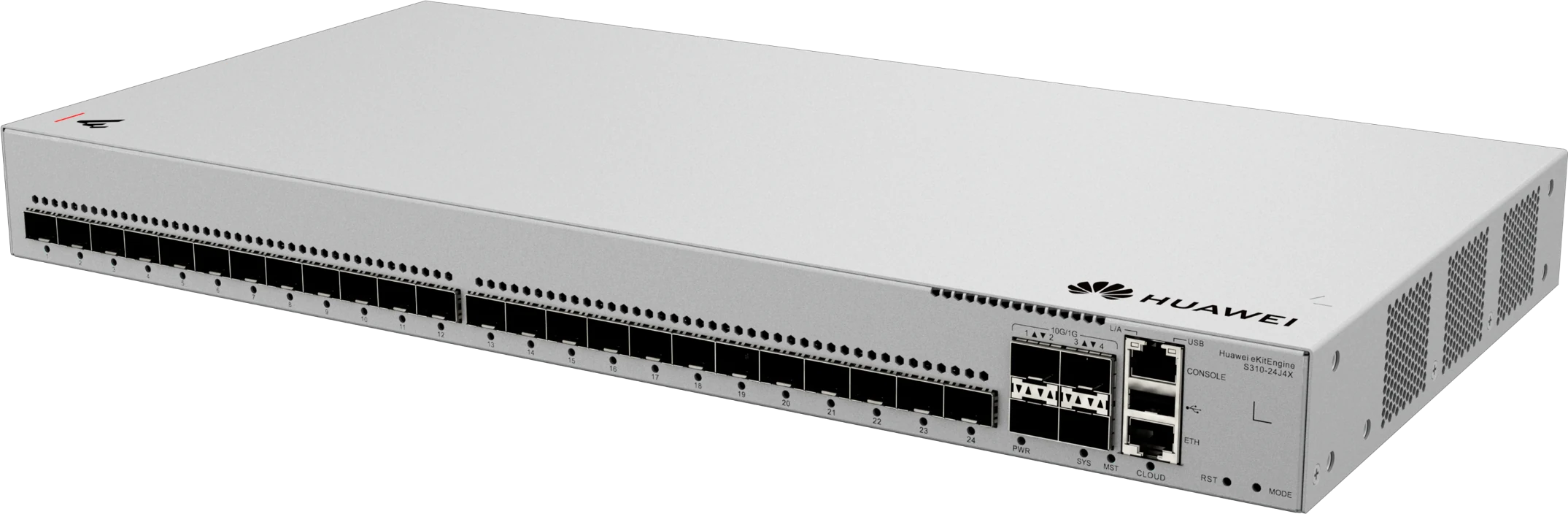

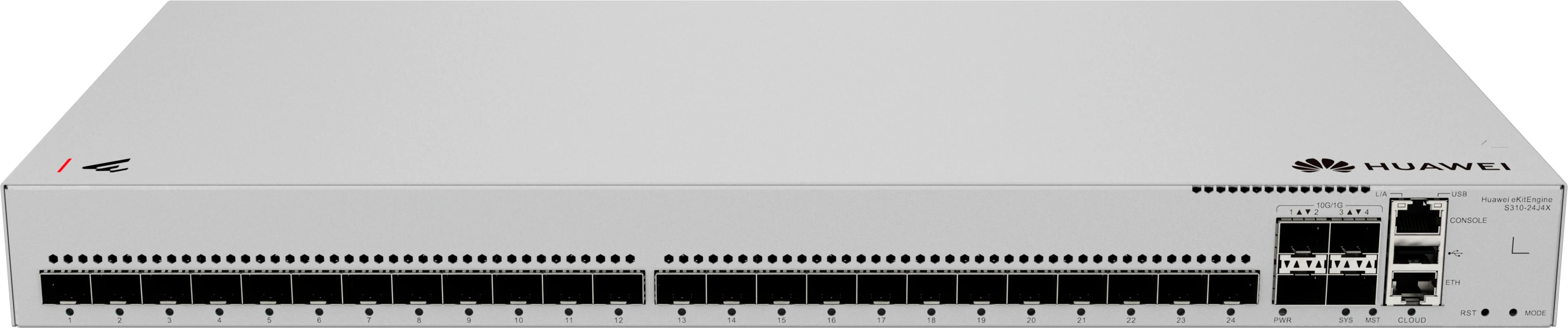

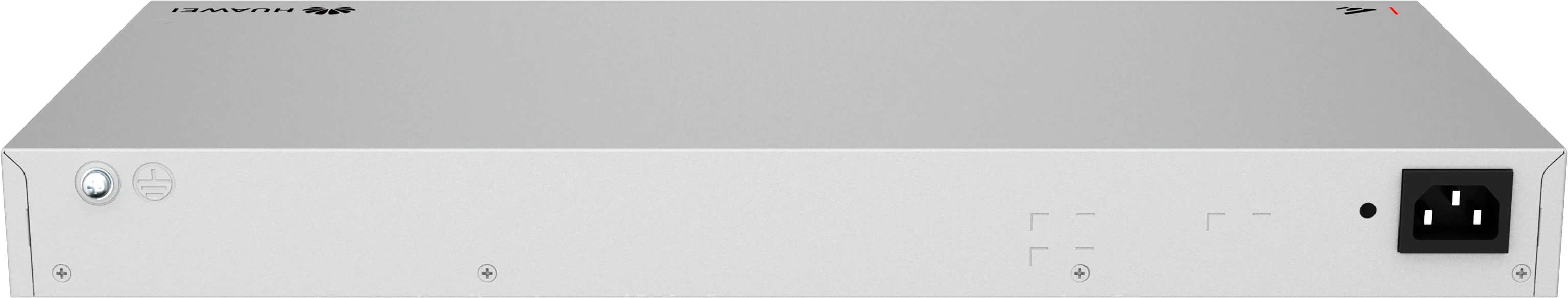

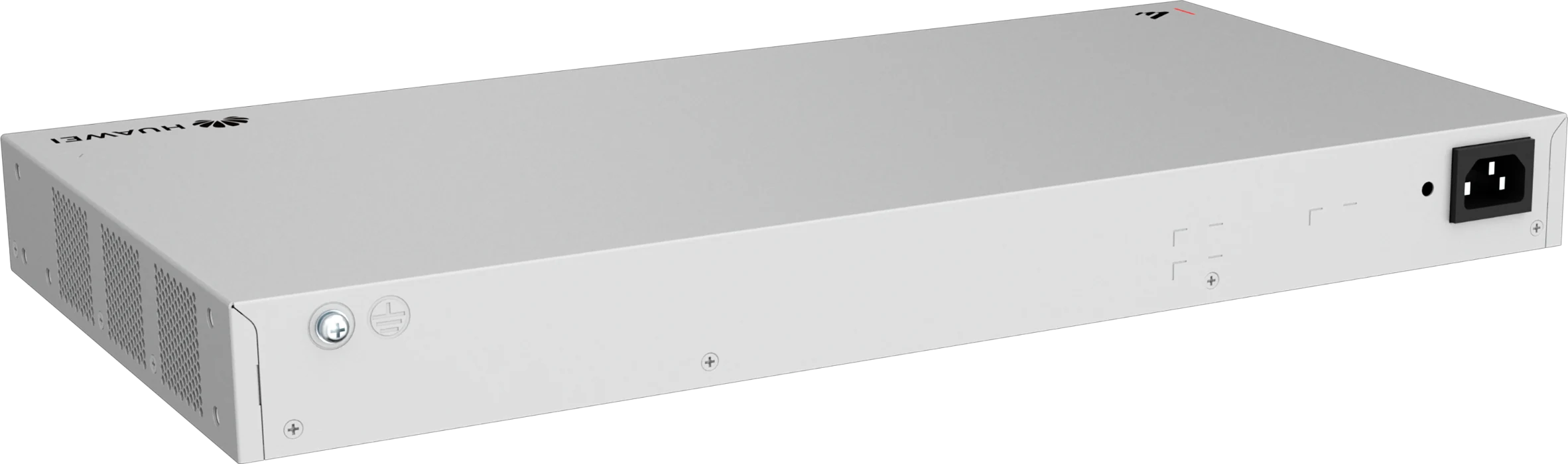

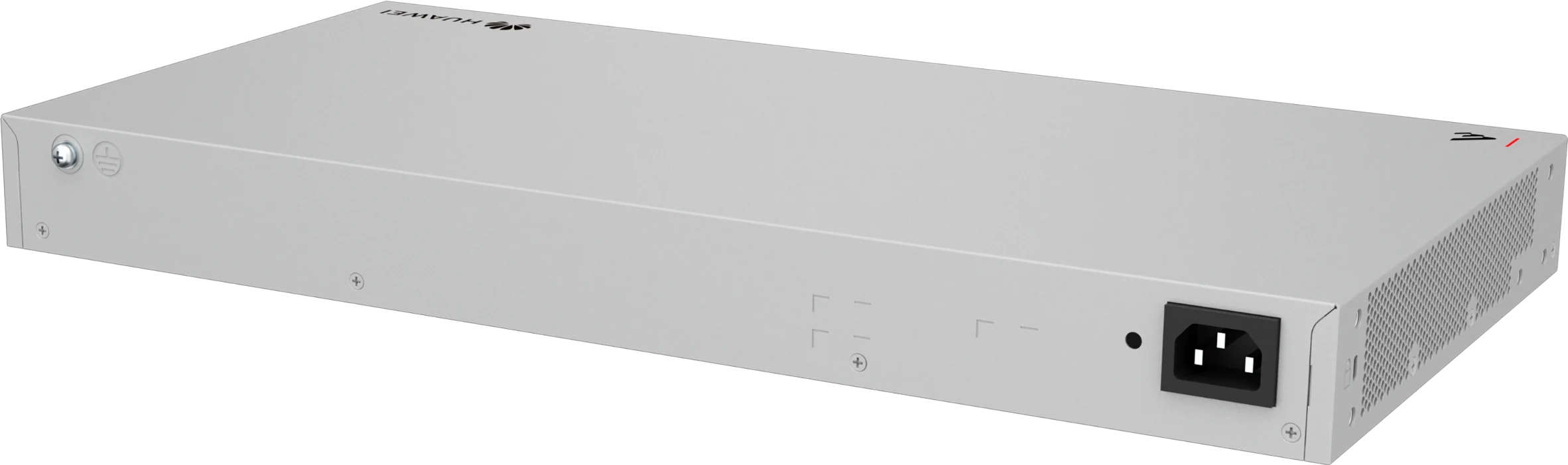

S310-24J4X

Model: S310-24J4X

Part Number: 98013245

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Storage altitude: 0-5000 m (0-16404 ft.)

Restriction on the operating temperature variation rate: Above 1800 m, the maximum operating temperature drops by 1°C (1.8°F) per 220 m (722 ft.) of added altitude, up to 5000 m (16404 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).

Long-term operating altitude: 0–5000 m (0–16404 ft.)

Noise at normal temperature (acoustic power): 52.8 dB(A)

Noise at high temperature (acoustic power): 59.8 dB(A)

Noise at normal temperature (acoustic pressure): 39.35 dB(A)

Ingress protection level (dustproof/waterproof): IP20

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.40 in. x 8.98 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 2.72 kg (6 lb)

Weight with packaging: 3.32 kg (7.32 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left and front, air exhaustion from right

Chassis height: 1 U

Integrated fixed device: Y

Remarks: A maximum of 12 copper modules can be installed on 1000BASE-X optical ports.

Switching capacity: For more details, see the datasheet/brochure or contact product sales personnel.

Packet forwarding rate: For more details, see the datasheet/brochure or contact product sales personnel.

Number of card slots: 0

MTBF: 51.36 years

MTTR: 2 hours

Availability: > 0.99999

CPU: 1.1 GHz, 2 cores

Memory: 2 GB

Flash memory: Physical space: 1 GB

USB: Supported

Dying gasp: Supported

Static power consumption: 28.3 W

Typical power consumption: 48.4 W

Maximum power consumption: 76 W

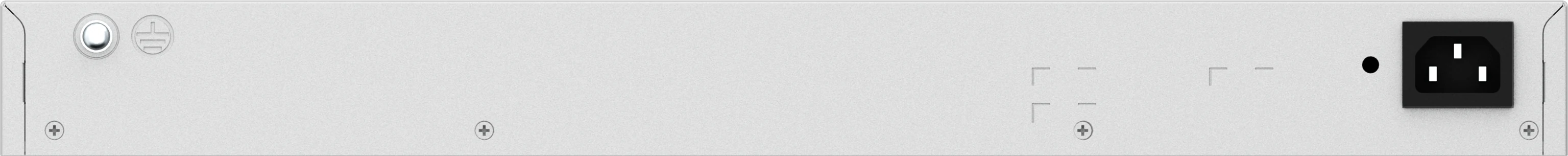

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

High-voltage DC input: 88 V DC to 300 V DC

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

Typical heat dissipation: 165.2 BTU/hour

Maximum heat dissipation: 259.3 BTU/hour

Power consumption at 100% traffic: 50.8 W

Maximum input current: 2 A

Number of power slots: 0

Rated input voltage: AC input: 100 V AC to 240 V AC, 50/60 Hz

High-voltage DC input: 240 V DC

First supported version: V600R025C10

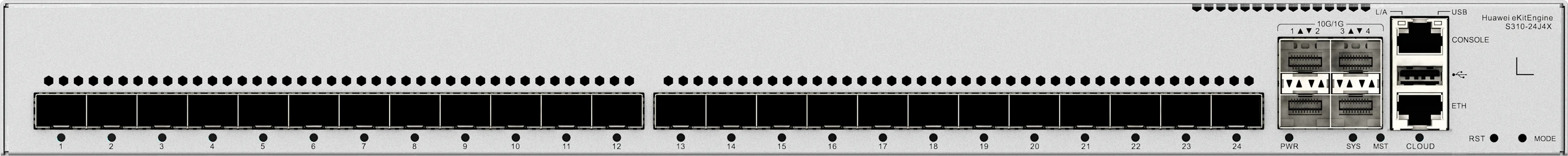

2.5G SFP: 24 (2.5G/1G/100M)

10G SFP+: 4 (10G/2.5G/1G)

Console port: RJ45

Eth Management port: RJ45

Certification: EMC certification; Safety certification; Manufacturing certification
