S310-24U4X

Model: S310-24U4X

Part Number: 98012947

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D): 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Installation type: Rack mounting, Desk mounting

Weight without packaging: 5.92 kg (13.05 lb)

Weight with packaging: 7.99 kg (17.61 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left, front, and right and air exhaust from rear

Switching capacity: 128 Gbit/s

Packet forwarding rate: 95 Mpps

iStack: Up to 4 switches of the same series in a stack

PoE: Supported

Maximum PoE power consumption: Single-power module scenario:

Single 600 W AC power module: 513 W (220 V AC); 228 W (110 V AC)

Single 1000 W AC power module: 846 W (220 V AC); 756 W (110 V AC)

Single 1000 W DC power module: 846 W (56 V DC)

Dual-power module scenario:

600 W AC + 600 W AC: 1083 W (220 V AC); 513 W (110 V AC)

600 W AC + 1000 W AC: 1386 W (220 V AC)

600 W AC + 1000 W DC: 1386 W (220 V AC/56 V DC)

1000 W AC + 1000 W AC: 1746 W (220 V AC); 1566 W (110 V AC)

1000 W DC + 1000 W DC: 1746 W (56 V DC)

1000 W AC + 1000 W DC: 1746 W (220 V AC/56 V DC); 1566 W (110 V AC/56 V DC)

Three-power module scenario:

600 W AC + 600 W AC + 600 W AC: 1653 W (220 V AC); 798 W (110 V AC)

600 W AC + 600 W AC + 1000 W AC: 1926 W (220 V AC)

600 W AC + 1000 W AC + 1000 W AC: 2268 W (220 V AC)

600 W AC + 600 W AC + 1000 W DC: 1926 W (220 V AC/220 V AC/56 V DC)

600 W AC + 1000 W AC + 1000 W DC: 2268 W (220 V AC/220 V AC/56 V DC)

600 W AC + 1000 W DC + 1000 W DC: 2268 W (220 V AC/56 V DC/56 V DC)

1000 W AC + 1000 W AC + 1000 W AC: 2268 W (220 V AC); 2268 W (110 V AC)

1000 W AC + 1000 W AC + 1000 W DC: 2268 W (220 V AC/220 V AC/56 V DC); 2268 W (110 V AC/110 V AC/56 V DC)

1000 W AC + 1000 W DC + 1000 W DC: 2268 W (220 V AC/56 V DC/56 V DC); 2268 W (110 V AC/56 V DC/56 V DC)

1000 W DC + 1000 W DC + 1000 W DC: 2268 W (56 V DC)

Static power consumption: 28.8 W

Typical power consumption: 36.98 W

Maximum power consumption: Without PoE:

51.60 W (with two 600 W AC power modules)

54.70 W (with two 1000 W AC power modules)

65.30 W (with two 1000 W DC power modules)

Full PoE load: 2428.11 W (PoE: 2268 W, with three 1000 W AC power modules)

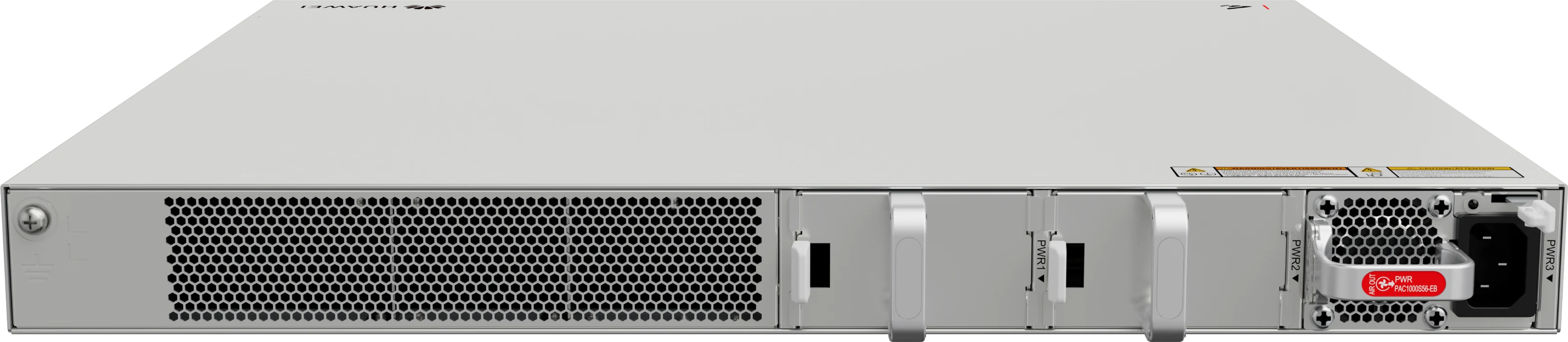

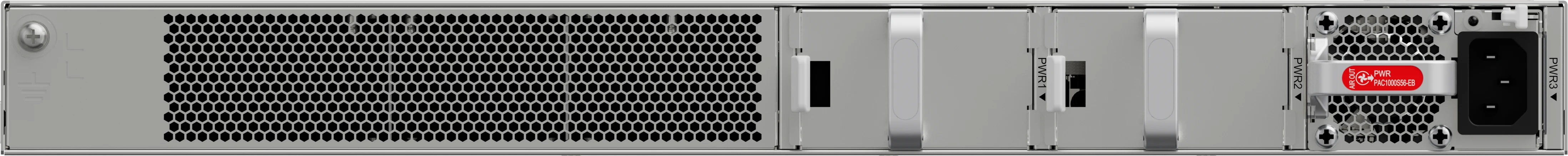

Power supply mode: Pluggable power supply

Input voltage range: AC input: 90 V AC to 290 V AC; 45–65 Hz

High-voltage DC input: 190 V DC to 290 V DC

DC input: -38.4 V DC to -72 V DC

Power supply surge protection: Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode

Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

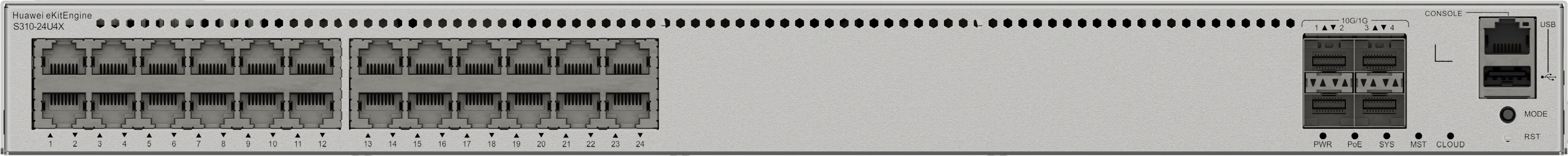

GE RJ45: 24 (PoE++) (1G/100M/10M)

10G SFP+: 4 (10G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
