S310-48J4X

Model: S310-48J4X

Part Number: 98013246

Long-term operating temperature: -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Storage altitude: 0-5000 m (0-16404 ft.)

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.40 in. x 8.98 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 3.34 kg (7.36 lb)

Weight with packaging: 3.93 kg (8.66 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left and front, air exhaustion from right

Number of card slots: 0

Static power consumption: 51.5 W

Typical power consumption: 86.4 W

Maximum power consumption: 130.5 W

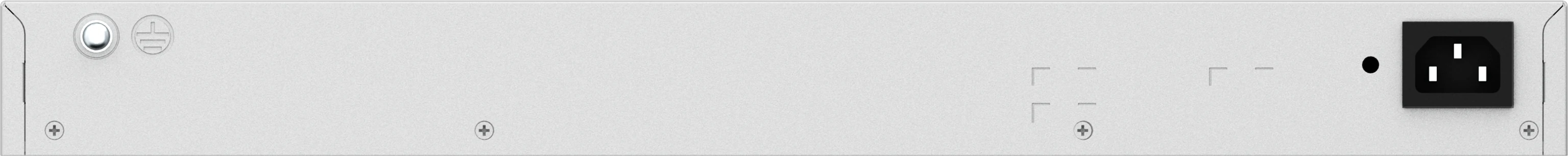

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

Typical heat dissipation: 294.8 BTU/hour

Maximum heat dissipation: 445.3 BTU/hour

Power consumption at 100% traffic: 91.1 W

Maximum input current: 3 A

Number of power slots: 0

Rated input voltage: AC input: 100 V AC to 240 V AC, 50/60 Hz

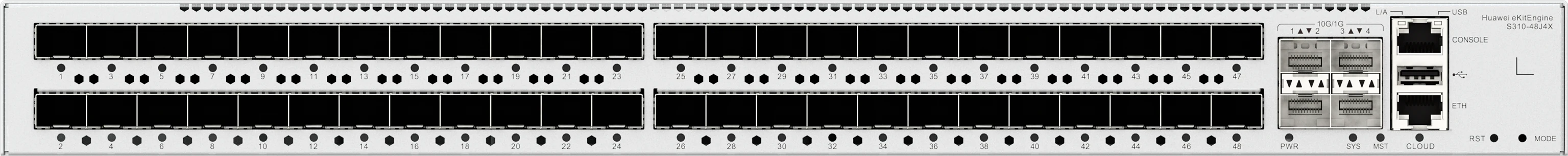

2.5G SFP: 48 (2.5G/1G/100M)

10G SFP+: 4 (10G/2.5G/1G)

Certification: EMC certification; Safety certification; Manufacturing certification
