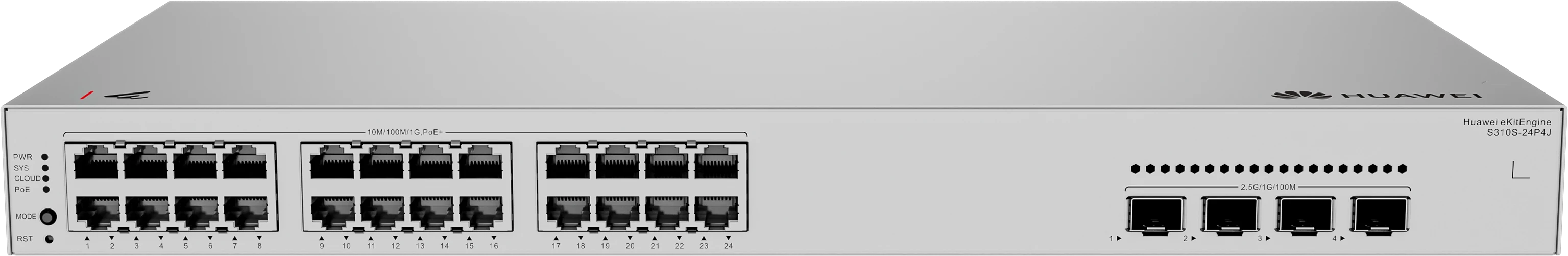

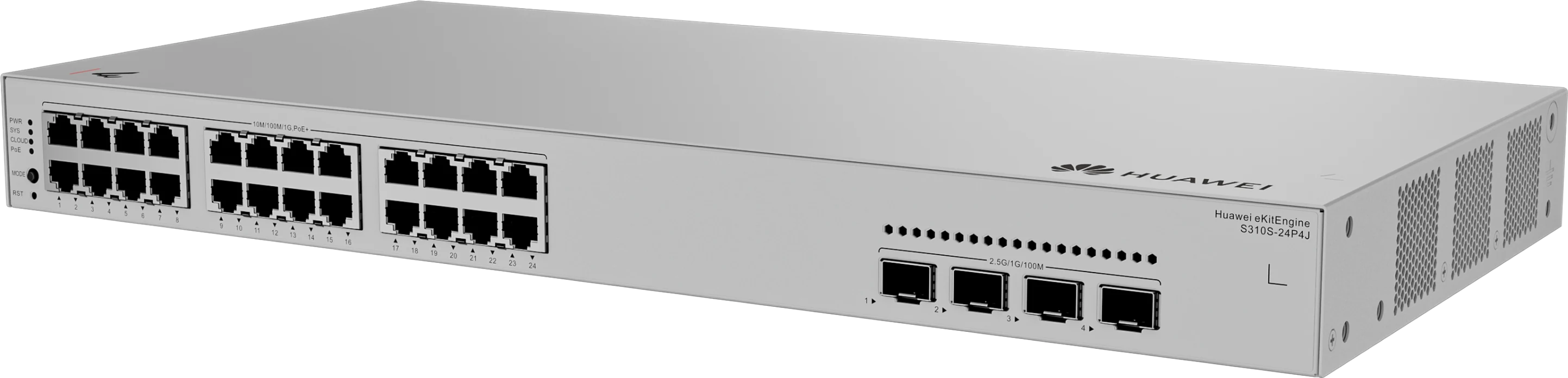

S310S-24P4J

Model: S310S-24P4J

Part Number: 98012523

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D): 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type: Rack mounting, Desk mounting, Wall mounting

Weight without packaging: 2.8 kg (6.17 lb)

Weight with packaging: 3.71 kg (8.18 lb)

Number of fan modules: 2

Types of fans: Built-in

Heat dissipation mode: Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction: Air intake from left and front, air exhaustion from right

Switching capacity: 68 Gbit/s

Packet forwarding rate: 51 Mpps

PoE: Supported

Maximum PoE power consumption: 400 W

Static power consumption: 18.74 W

Typical power consumption: 33.32 W

Maximum power consumption: Without PoE: 38.58 W; Full PoE load: 482.55 W (PoE: 400 W)

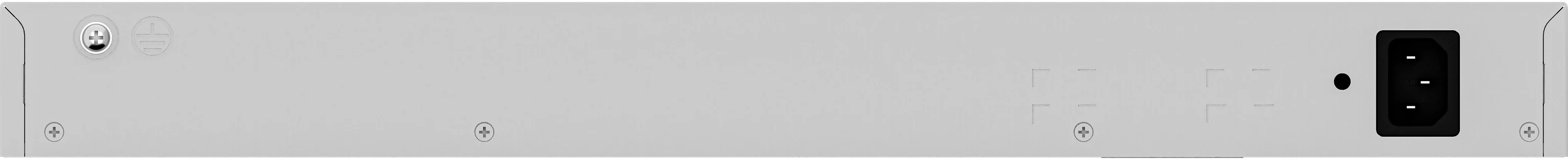

Power supply mode: AC built-in

Input voltage range: AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

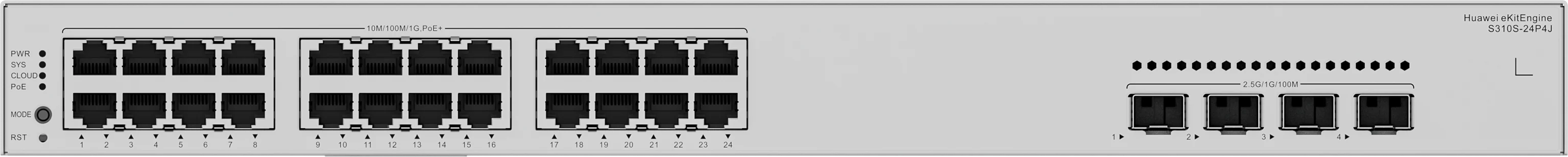

GE RJ45: 24 (PoE+) (1G/100M/10M)

2.5G SFP: 4 (2.5G/1G/100M)

Certification: EMC certification, Safety certification, Manufacturing certification
