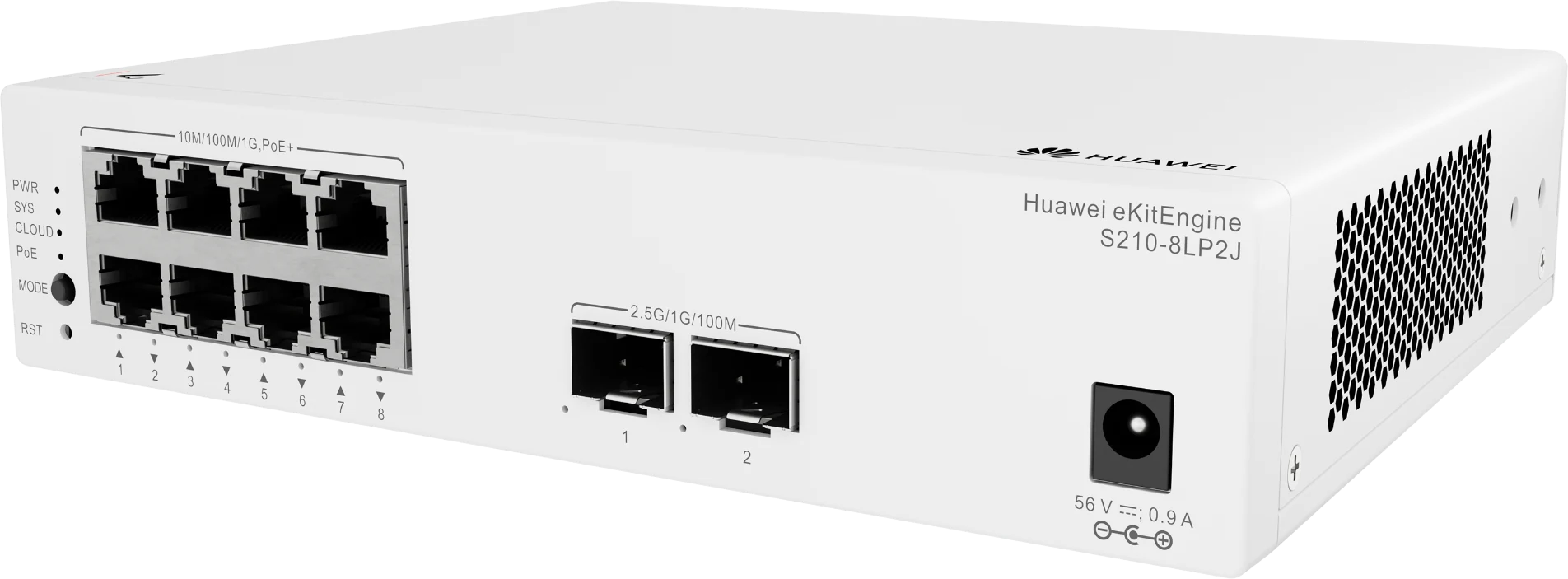

S210-8LP2J

Model: S210-8LP2J

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 195 mm x 160 mm (1.72 in. x 7.68 in. x 6.30 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 195 mm x 166.2 mm (1.72 in. x 7.68 in. x 6.54 in.)

Dimensions with packaging (H x W x D): 116.0 mm x 285.0 mm x 300.0 mm (4.57 in. x 11.22 in. x 11.81 in.)

Installation type: Desk mounting, Wall mounting

Weight without packaging: 1.35 kg (2.98 lb)

Weight with packaging: 1.83 kg (4.03 lb)

Heat dissipation mode: Natural heat dissipation

Chassis height: 1 U

PoE: Supported

Maximum PoE power consumption: 32 W

Static power consumption: 7.15 W

Typical power consumption: 13.14 W

Maximum power consumption: Without PoE: 13.60 W (device), 15.59 W (device + adapter); Full PoE load: 55.82 W (PoE: 32 W)

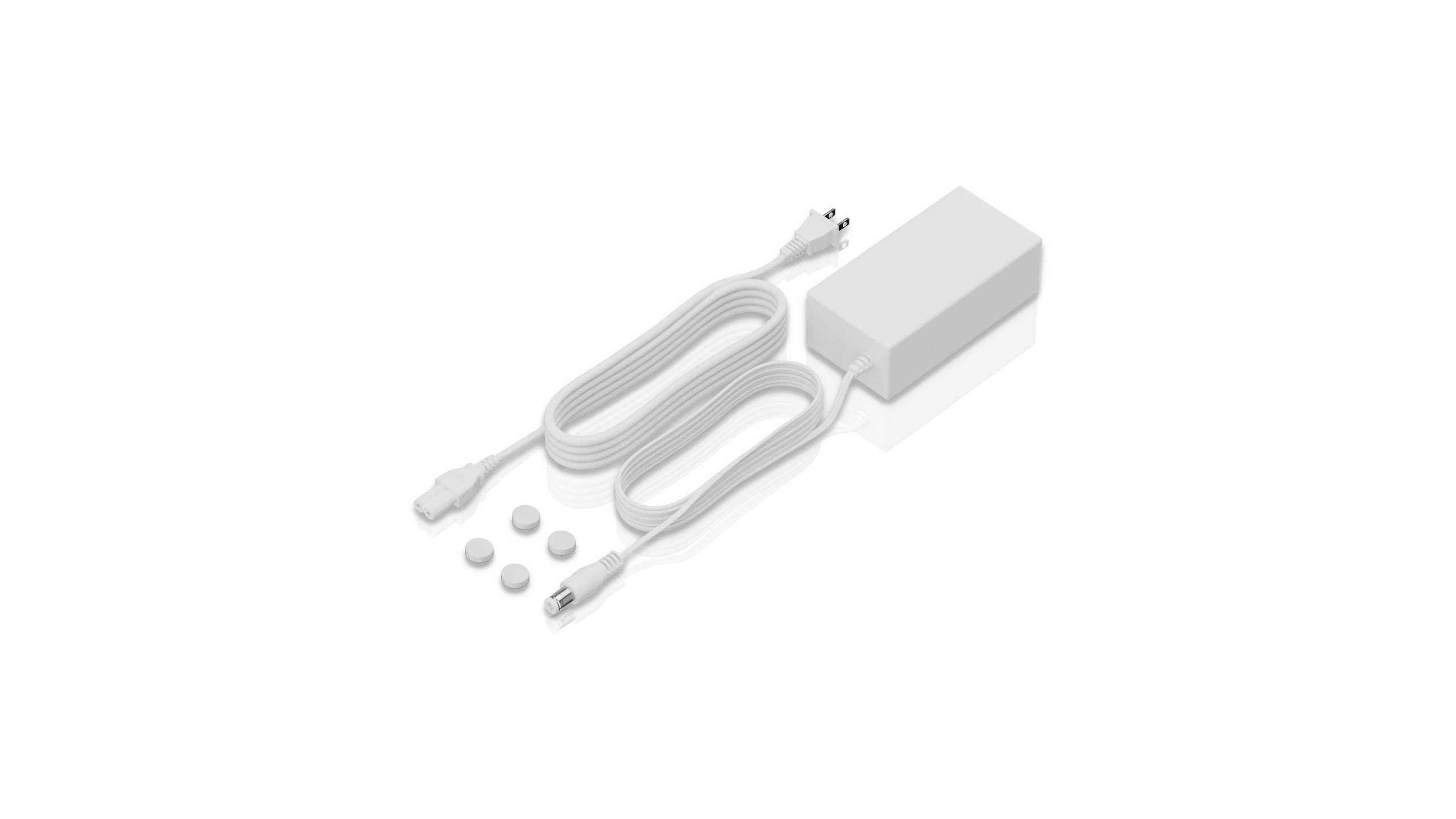

Power supply mode: Power adapter

Input voltage range: Power adapter input: 90 V AC to 264 V AC; 45 Hz to 65 Hz

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

PoE+ power interfaces: 8

Full load PoE power consumption 30W (802.3at): 1

Full load PoE power consumption 15.4W (802.3af): 2

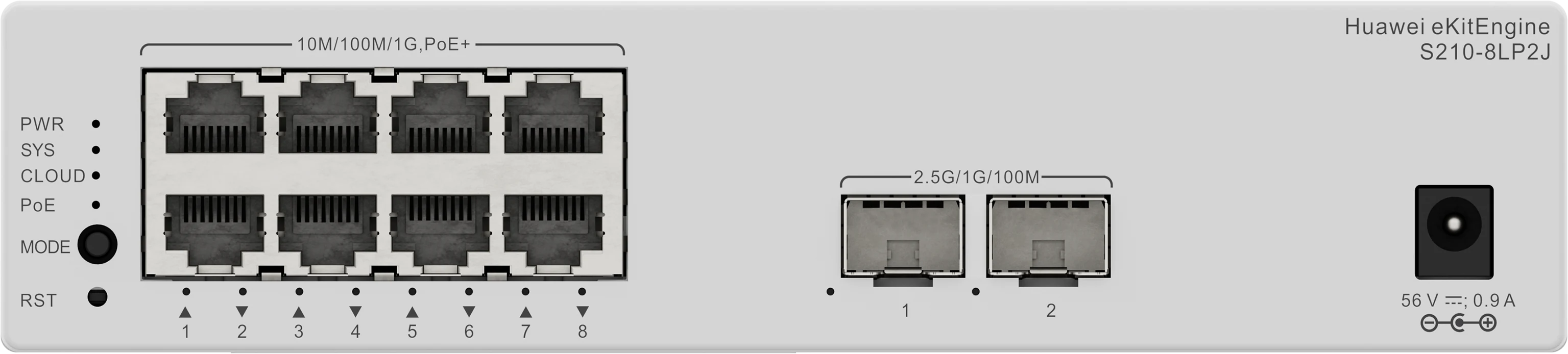

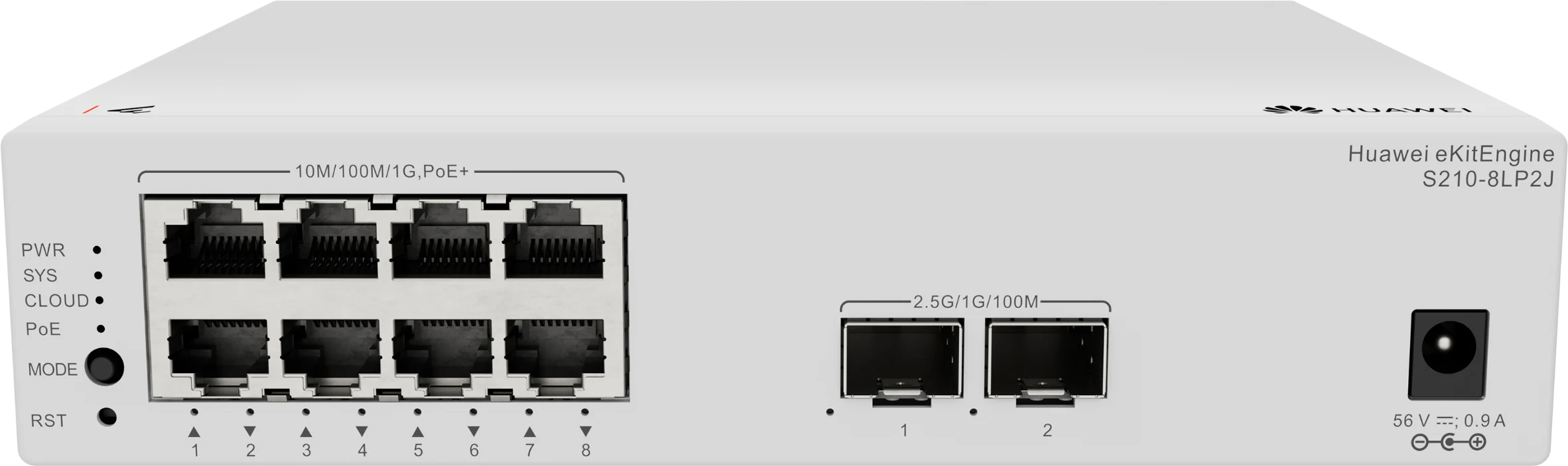

GE RJ45: 8 (PoE+) (1G/100M/10M)

2.5G SFP: 2 (2.5G/1G/100M)

Certification: EMC certification; Safety certification; Manufacturing certification
