S210-8T

Model: S210-8T

Long-term operating temperature: –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity: 5% RH to 95% RH, non-condensing

Chassis material: Metal

Dimensions without packaging (H x W x D): Basic: 35 mm x 195 mm x 130 mm (1.38 in. x 7.68 in. x 5.12 in.). Maximum: 35 mm x 195 mm x 136 mm (1.38 in. x 7.68 in. x 5.35 in.)

Dimensions with packaging (H x W x D): 93.0 mm x 285.0 mm x 190.0 mm (3.66 in. x 11.22 in. x 7.48 in.)

Installation type: Desk mounting, Wall mounting

Weight without packaging: 0.81 kg (1.79 lb)

Weight with packaging: 1.06 kg (2.34 lb)

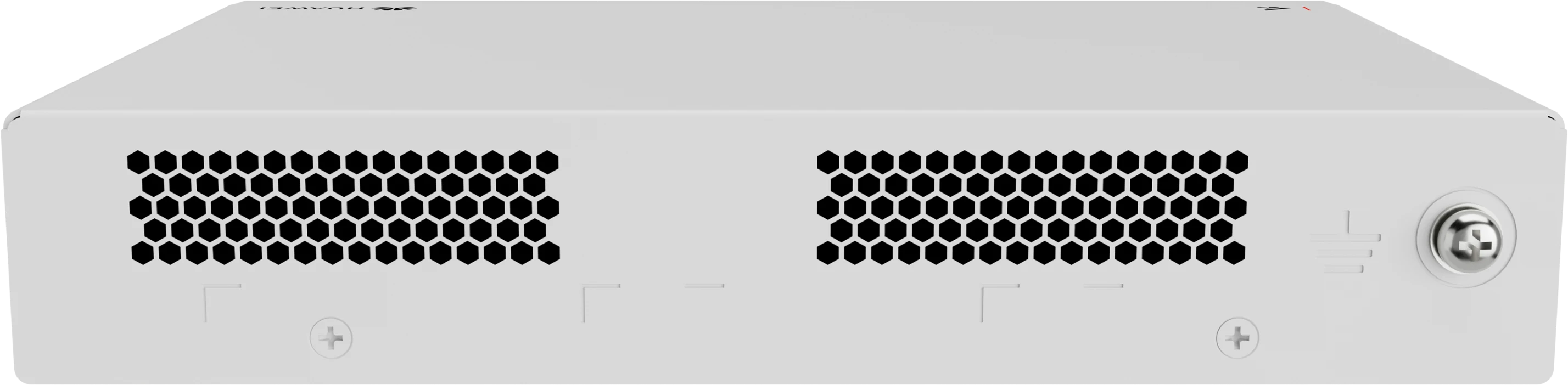

Heat dissipation mode: Natural heat dissipation

Chassis height: 0.8 U

Static power consumption: 4.85 W

Typical power consumption: 7.91 W

Maximum power consumption: 6.94 W (device); 8.90 W (device + adapter)

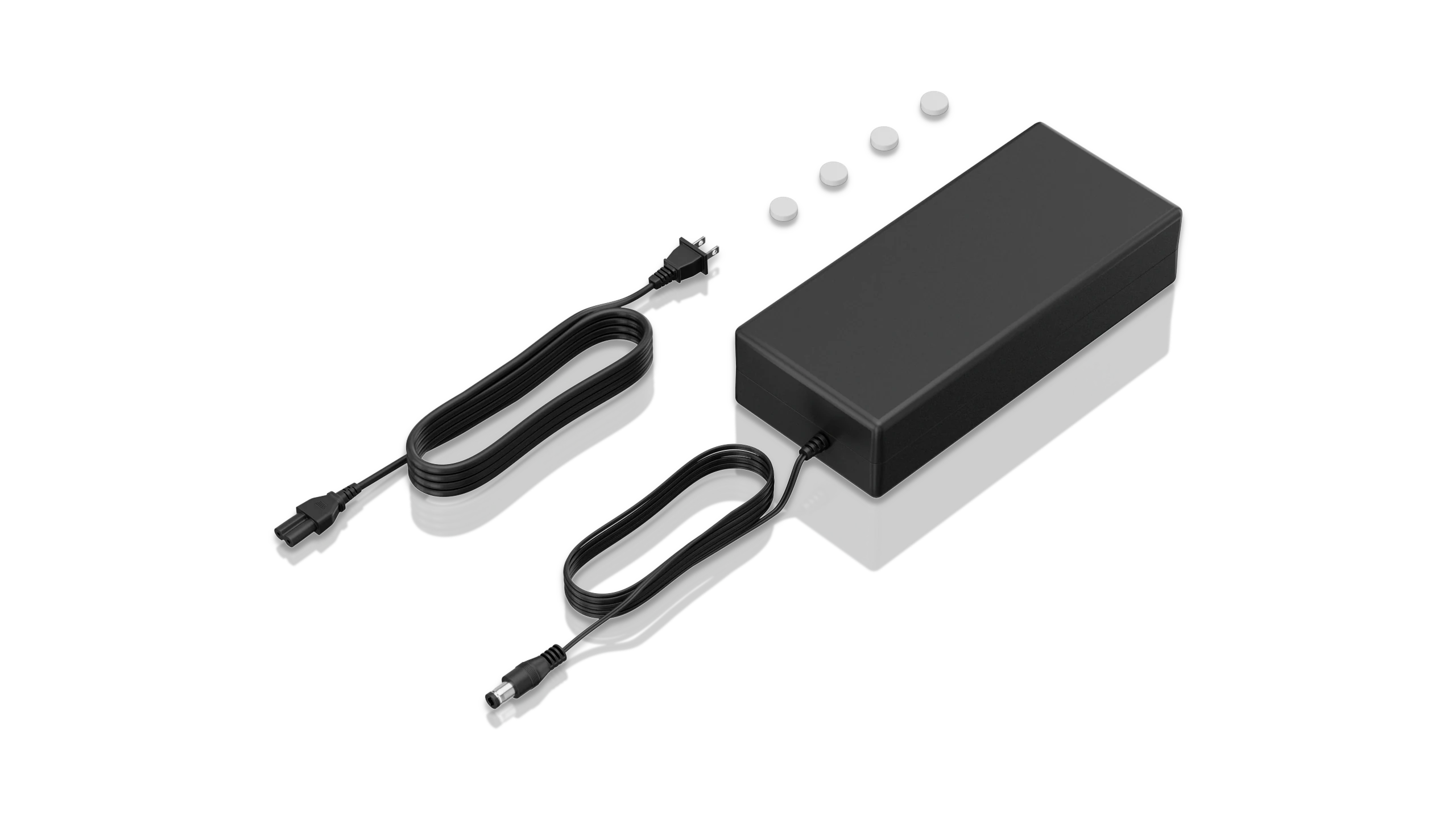

Power supply mode: Power adapter

Input voltage range: Power adapter input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection: Differential mode: ±6 kV; common mode: ±6 kV

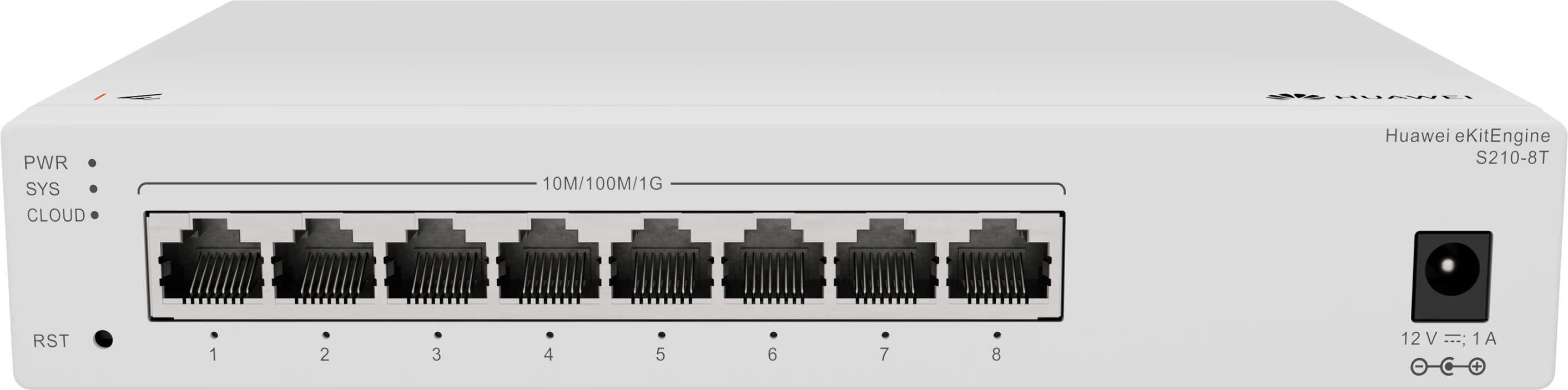

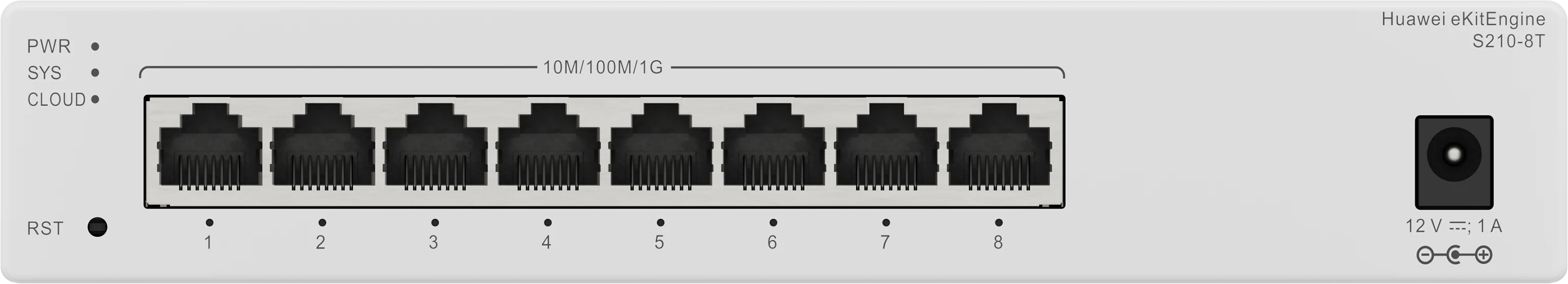

GE RJ45: 8 (1G/100M/10M)

Certification: EMC certification; Safety certification; Manufacturing certification
